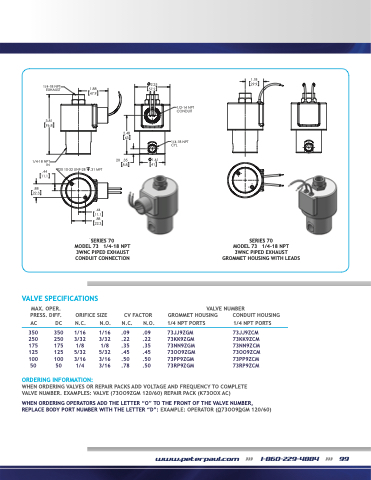

Page 101 - Peter Paul 2019 Catalog

1/4-18 NPT EXHAUST
3.81 96.8
1/4-18 NPT IN
2.25 1.88 57.2
1.18 29.9
.44 11.1
.88 22.3
2X 10-32 UNF-2B
.31 MFT
.44 11.1 .88 22.3
VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE
AC DC N.C. N.O.
CV FACTOR N.C. N.O.
.09 .09 .22 .22 .35 .35 .45 .45 .50 .50 .78 .50
VALVE NUMBER
350 350
250 250
175 175
125 125
100 100
50 50
1/16 1/16 3/32 3/32 1/8 1/8 5/32 5/32 3/16 3/16
1/4 3/16
GROMMET HOUSING 1/4 NPT PORTS
73JJ9ZGM 73KK9ZGM 73NN9ZGM 73OO9ZGM 73PP9ZGM 73RP9ZGM
CONDUIT HOUSING 1/4 NPT PORTS
73JJ9ZCM 73KK9ZCM 73NN9ZCM 73OO9ZCM 73PP9ZCM 73RP9ZCM
ORDERING INFORMATION:
47.9
3WNC PIPED EXHAUST
3WNC PIPED EXHAUST
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
2.48 63
2X .35 1.61 8.8 41
1/2-14 NPT CONDUIT
1/4-18 NPT CYL
SSEERRIEIESS7070 SERIES70
MMOODDEELL7733 1//4--18NPT 3WNC PIPED EXHAUST
MODEL 73 1//4--1188NPPTT 3WNC PIPED EXHAUST
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (73OO9ZGM 120/60) REPAIR PACK (K73OOX AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O73OO9DGM 120/60)
