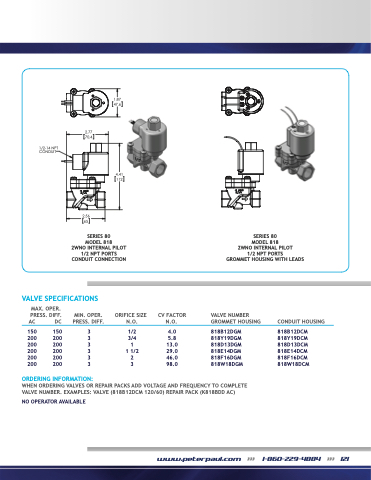

P. 123

 1/2-14 NPT CONDUIT
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF. AC DC
150     150
200     200
200     200
200     200
200     200
200     200
MIN. OPER. PRESS. DIFF.
3 3 3 3 3 3
ORIFICE SIZE N.O.
ORDERING INFORMATION:
2.77 70.4
1.87 47.6
4.41 112
2.56 65
SERIES 80 MODEL 818
SERIES 80 MODEL 818
SERIES 80
SERIES 80
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
MODEL 818
MODEL 818
2WNO INTERNAL PILOT
2WNO INTERNAL PILOT
2WNO INTERNAL PILOT
2WNO INTERNAL PILOT
1/2" NPT PORTS
1/2" NPT PORTS
1/2 NPT PORTS CONDUIT CONNECTION
1/2 NPT PORTS GROMMET HOUSING WITH LEADS
CV FACTOR N.O.
4.0
5.8 1 13.0 1 1/2 29.0 2 46.0 3 98.0
VALVE NUMBER GROMMET HOUSING
818B12DGM 818Y19DGM 818D13DGM 818E14DGM 818F16DGM 818W18DGM
CONDUIT HOUSING
818B12DCM 818Y19DCM 818D13DCM 818E14DCM 818F16DCM 818W18DCM
1/2 3/4
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (818B12DCM 120/60) REPAIR PACK (K818BDD AC)
NO OPERATOR AVAILABLE
www.peterpaul.com >>> 1-860-229-4884 >>> 121
