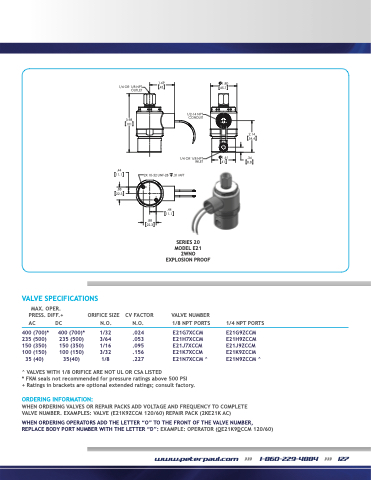

Page 129 - Peter Paul 2019 Catalog

VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.+
ORIFICE SIZE N.O.
1/32 3/64 1/16 3/32 1/8
CV FACTOR N.O.
.024 .053 .095 .156 .227
VALVE NUMBER 1/8 NPT PORTS
E21G7XCCM E21H7XCCM E21J7XCCM E21K7XCCM E21N7XCCM ^
AC
400 (700)* 235 (500) 150 (350) 100 (150) 35 (40)
DC
400 (700)* 235 (500) 150 (350) 100 (150) 35(40)
1/4 NPT PORTS
E21G9ZCCM E21H9ZCCM E21J9ZCCM E21K9ZCCM E21N9ZCCM ^
^ VALVES WITH 1/8 ORIFICE ARE NOT UL OR CSA LISTED
* FKM seals not recommended for pressure ratings above 500 PSI
+ Ratings in brackets are optional extended ratings; consult factory.
ORDERING INFORMATION:
1/4 OR 1/8 NPT OUTLET
3.98 101
.88 22.3
1.69 43
1.80 45.7
.44 11.1
2X 10-32 UNF-2B
.88 22.3
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E21K9ZCCM 120/60) REPAIR PACK (2KE21K AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OE21K9DCCM 120/60)
1/2-14 NPT CONDUIT
1/4 OR 1/8 NPT
INLET 41
.31 MFT
SERIES 20 SERIMESO2D0ELMEO2D1EL E21
.44 11.1
2WNO
2WNO
EXPLOSION PROOF
EXPLOSION PROOF
1.61 .34
8.8
2.14 54.4
www.peterpaul.com >>> 1-860-229-4884 >>> 127
