P. 151

                   1/8-27 NPT OUTLET
3.27
.30 7.5
.59 15
1.51 38.4
1.44 36.6
1.00 25.3
                                                                                      83
                                                   1/8-27 NPT INLET
.30 7.5
1/2-14 NPT CONDUIT
1.63 41.4
                             2X 8-32 UNC-2B
.23 MFT
.20 5 .40 10.1

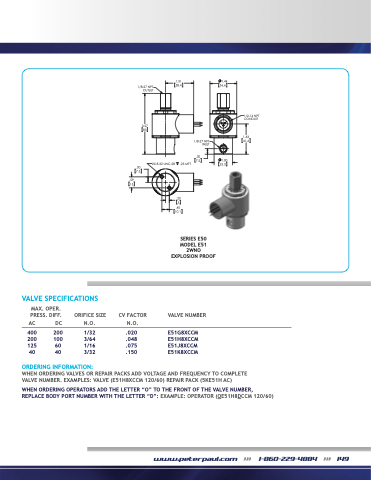

                                                                                                  SERIES E50
 SERIES 50
MODEL E51
MODEL E51
2WNO
2WNO
EXPLOSION PROOF
EXPLOSION PROOF
    VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC
400 200 125 40
ORIFICE SIZE DC N.O.
200 1/32 100 3/64 60 1/16 40 3/32
CV FACTOR N.O.
.020 .048 .075 .150
VALVE NUMBER
E51G8XCCM E51H8XCCM E51J8XCCM E51K8XCCM
 ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E51H8XCCM 120/60) REPAIR PACK (5KE51H AC)
WHEN ORDERING OPERATORS ADD THE LETTER ā€œOā€ TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER ā€œDā€: EXAMPLE: OPERATOR (OE51H8DCCM 120/60)
      www.peterpaul.com >>> 1-860-229-4884 >>> 149
