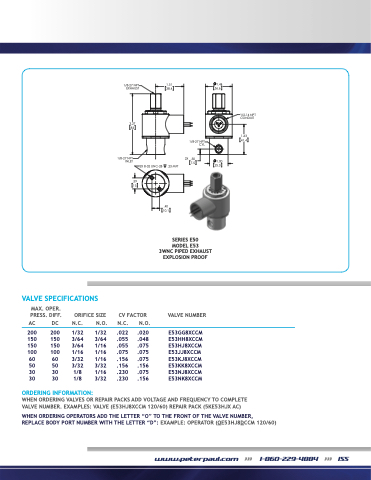

P. 157

    1.51 EXHAUST 38.4
1.44 36.6
 1/8-27 NPT
                                                                                                                                                                                                                          3.27 83
1/8-27 NPT INLET
.59 15
1/8-27 NPT CYL
1/2-14 NPT CONDUIT
1.63 41.4
                                                                                                  2X .23 MFT
.30
7.5 1.00
              2X 8-32 UNC-2B
25.3
                                                .40 10.1
SSEERRIEI ESS E5500
       MODDEELLEE53
3WNC PIIPED EXHAUST
EXPLOSION PROOF
EXPLOSION PROOF
    VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE CV FACTOR
AC DC N.C. N.O. N.C. N.O.
VALVE NUMBER
E53GG8XCCM E53HH8XCCM E53HJ8XCCM E53JJ8XCCM E53KJ8XCCM E53KK8XCCM E53NJ8XCCM E53NK8XCCM
 200 200 150 150 150 150 100 100 60 60 50 50 30 30 30 30
1/32 1/32 3/64 3/64 3/64 1/16 1/16 1/16 3/32 1/16 3/32 3/32
1/8 1/16 1/8 3/32
.022 .020 .055 .048 .055 .075 .075 .075 .156 .075 .156 .156 .230 .075 .230 .156
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E53HJ8XCCM 120/60) REPAIR PACK (5KE53HJX AC)
WHEN ORDERING OPERATORS ADD THE LETTER ā€œOā€ TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER ā€œDā€: EXAMPLE: OPERATOR (OE53HJ8DCCM 120/60)
