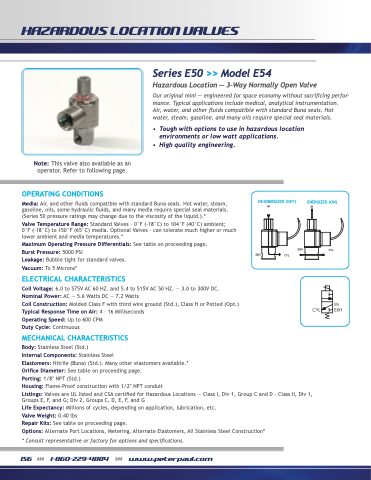

Page 158 - Peter Paul 2019 Catalog
P. 158

    HAZARDOUS LOCATION VALVES
   Note: This valve also available as an operator. Refer to following page.
OPERATING CONDITIONS
Series E50 >> Model E54
Hazardous Location — 3-Way Normally Open Valve
Our original mini — engineered for space economy without sacrificing perfor- mance. Typical applications include medical, analytical instrumentation.
Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.
 • Tough with options to use in hazardous location environments or low watt applications.
• High quality engineering.
     Media: Air, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.).*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient;
0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table on proceeding page. Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 6.0 to 575V AC 60 HZ. and 5.4 to 515V AC 50 HZ. — 3.0 to 300V DC. Nominal Power: AC — 5.6 Watts DC — 7.2 Watts
Coil Construction: Molded Class F with third wire ground (Std.), Class H or Potted (Opt.) Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
Body: Stainless Steel (Std.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table on proceeding page.
Porting: 1/8′′ NPT (Std.)
Housing: Flame-Proof construction with 1/2′′ NPT conduit
DE-ENERGIZED (OFF)
ENERGIZED (ON)
IN
IN
                                                                                        EXH
CYL
EXH
CYL
                      CYL
IN EXH
       Listings: Valves are UL listed and CSA certified for Hazardous Locations — Class I, Div 1, Group C and D – Class II, Div 1, Groups E, F, and G; Div 2, Groups C, D, E, F, and G
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 0.40 lbs
Repair Kits: See table on proceeding page.
Options: Alternate Port Locations, Metering, Alternate Elastomers, All Stainless Steel Construction*
* Consult representative or factory for options and specifications.
