VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
250 250
150 150
150 150
100 100
50 50
ORIFICE SIZE N.C. N.O.
1/32 1/32 3/64 3/64 3/64 1/16 1/16 1/16 3/32 3/32
CV FACTOR N.C. N.O.
.022 .020 .055 .048 .055 .075 .075 .075 .150 .150
ORDERING INFORMATION:
.60 15.2
2.43 61.8
1/8-27 NPT INLET
.59 15
1.50 38.1
.23 MFT
.40 10.1
1.20 30.5
EXHAUST
2X 8-32 UNC-2B
2X .30
7.5 1.00
25.3

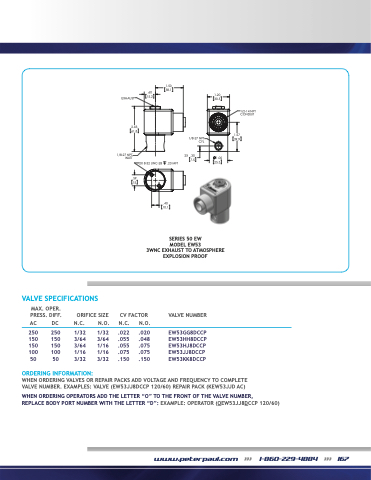

SERIES 50
SERIES 50 EW
MODEL EW53
MODEL EW53
3WNC EXHAUST TO ATMOSPHERE
3WNC EXHAUST TO ATMOSPHERE
VALVE NUMBER
EW53GG8DCCP EW53HH8DCCP EW53HJ8DCCP EW53JJ8DCCP EW53KK8DCCP
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (EW53JJ8DCCP 120/60) REPAIR PACK (KEW53JJD AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OEW53JJ8DCCP 120/60)
EXPLOSION PROOF
EXPLOSION PROOF
1/8-27 NPT CYL
1/2-14 NPT CONDUIT
1.57 39.9
