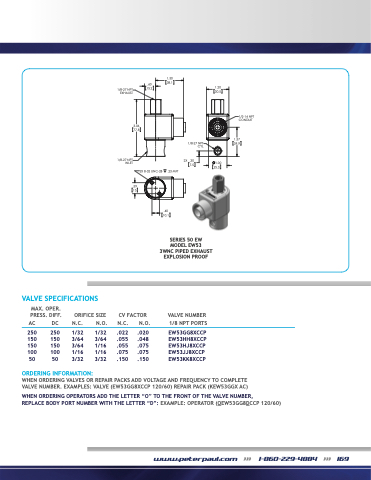

 VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE CV FACTOR
AC DC N.C. N.O. N.C. N.O.
VALVE NUMBER 1/8 NPT PORTS
EW53GG8XCCP EW53HH8XCCP EW53HJ8XCCP EW53JJ8XCCP EW53KK8XCCP
250 250 150 150 150 150 100 100 50 50
1/32 1/32 3/64 3/64 3/64 1/16 1/16 1/16 3/32 3/32
.022 .020 .055 .048 .055 .075 .075 .075 .150 .150
ORDERING INFORMATION:
1/8-27 NPT EXHAUST
1.20 30.5
1.00 25.3
1/8-27 NPT INLET
.60 15.2
3.06 77.8
.59 15
1.50 38.1
2X 8-32 UNC-2B
.23 MFT
.40 10.1
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (EW53GG8XCCP 120/60) REPAIR PACK (KEW53GGX AC)
WHEN ORDERING OPERATORS ADD THE LETTER ā€œOā€ TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER ā€œDā€: EXAMPLE: OPERATOR (OEW53GG8DCCP 120/60)
1/8-27 NPT CYL
2X .30 7.5
1/2-14 NPT CONDUIT
1.57 39.9
SESREIERSIE5S050EW
MODDEELLEEW53 3WNC PIIPED EXHAUST
EXPLOSION PROOF
EXPLOSION PROOF
