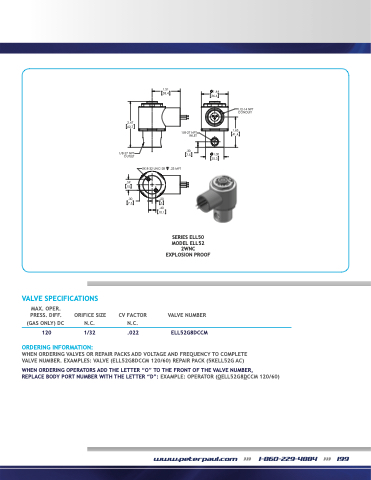

Page 201 - Peter Paul 2019 Catalog
P. 201

    1.51 38.4
1.44 36.6
                                                                                                                                                                                                                                 2.47 62.7
1/8-27 NPT OUTLET
.59 15
1/8-27 NPT INLET
1/2-14 NPT CONDUIT
1.63 41.4
                                                                               .30
7.5 1.00
25.3
              2X 8-32 UNC-2B
.23 MFT
                                                     .30 .20 7.5 5
           .40 10.1
    SERSEIERSIEESL5L050 MMOODEDLELELELL5522
 2WNC EXPLOSION PROOF
EXPLOSION PROOF
    VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
(GAS ONLY) DC
120
ORIFICE SIZE N.C.
1/32
CV FACTOR N.C.
.022
VALVE NUMBER
ELL52G8DCCM
 ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (ELL52G8DCCM 120/60) REPAIR PACK (5KELL52G AC)
WHEN ORDERING OPERATORS ADD THE LETTER ā€œOā€ TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER ā€œDā€: EXAMPLE: OPERATOR (OELL52G8DCCM 120/60)
      www.peterpaul.com >>> 1-860-229-4884 >>> 199
