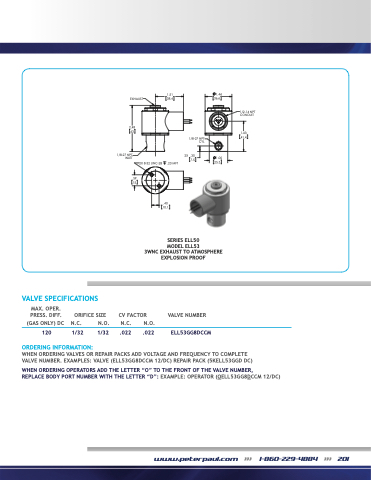

P. 203

      1.51 EXHAUST 38.4
1.44 36.6
                                                                                                               2.48
1/8-27 NPT INLET
.59 15
1/8-27 NPT CYL
1/2-14 NPT CONDUIT
1.63 41.4
 63
                                                                                                   2X 8-32 UNC-2B
2X .23 MFT
.30
7.5 1.00
25.3
                                                               .40 10.1
SERIES 50
       SERIES ELL50
 MODEL ELL53
MODEL ELL53
3WNC EXHAUST TO ATMOSPHERE
3WNC EXHAUST TO ATMOSPHERE
EXPLOSION PROOF
EXPLOSION PROOF
    VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
(GAS ONLY) DC
120
ORIFICE SIZE N.C. N.O.
1/32 1/32
CV FACTOR N.C. N.O.
.022 .022
VALVE NUMBER
ELL53GG8DCCM
 ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (ELL53GG8DCCM 12/DC) REPAIR PACK (5KELL53GGD DC)
WHEN ORDERING OPERATORS ADD THE LETTER ā€œOā€ TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER ā€œDā€: EXAMPLE: OPERATOR (OELL53GG8DCCM 12/DC)
      www.peterpaul.com >>> 1-860-229-4884 >>> 201
