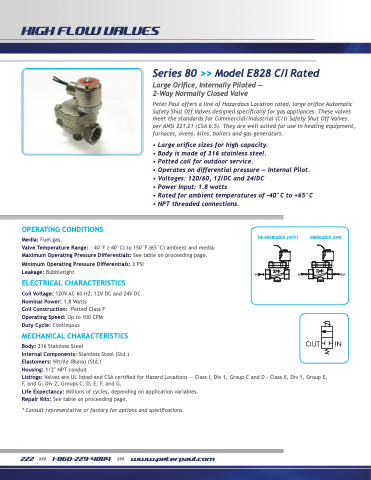

Page 224 - Peter Paul 2019 Catalog

HIGH FLOW VALVES
Series 80 >> Model E828 C/I Rated Large Orifice, Internally Piloted —
2-Way Normally Closed Valve
Peter Paul offers a line of Hazardous Location rated, large orifice Automatic Safety Shut Off Valves designed specifically for gas appliances. These valves meet the standards for Commercial/Industrial (C/I) Safety Shut Off Valves per ANSI Z21.21 (CSA 6.5). They are well suited for use in heating equipment, furnaces, ovens, kilns, boilers and gas generators.
• Large orifice sizes for high capacity.
• Body is made of 316 stainless steel.
• Potted coil for outdoor service.
• Operates on differential pressure — Internal Pilot. • Voltages: 120/60, 12/DC and 24/DC
• Power Input: 1.8 watts
• Rated for ambient temperatures of -40°C to +65°C • NPT threaded connections.
OPERATING CONDITIONS
Media: Fuel gas.
Valve Temperature Range: – 40°F (-40°C) to 150°F (65°C) ambient and media. Maximum Operating Pressure Differentials: See table on proceeding page. Minimum Operating Pressure Differentials: 3 PSI
Leakage: Bubbletight
ELECTRICAL CHARACTERISTICS
Coil Voltage: 120V AC 60 HZ, 12V DC and 24V DC Nominal Power: 1.8 Watts
Coil Construction: Potted Class F
Operating Speed: Up to 100 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
DE-ENERGIZED (OFF)
IN IN
ENERGIZED (ON)
OUT
OUT IN
Body: 316 Stainless Steel
Internal Components: Stainless Steel (Std.)
Elastomers: Nitrile (Buna) (Std.)
Housing: 1/2′′ NPT conduit
Listings: Valves are UL listed and CSA certified for Hazard Locations — Class I, Div 1, Group C and D - Class II, Div 1, Group E, F, and G; Div 2, Groups C, D, E, F, and G.
Life Expectancy: Millions of cycles, depending on application variables.
Repair Kits: See table on proceeding page.
* Consult representative or factory for options and specifications.
