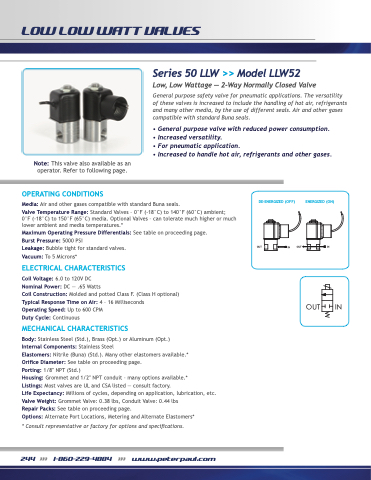

P. 246

   LOW LOW WATT VALVES
   Note: This valve also available as an operator. Refer to following page.
OPERATING CONDITIONS
Media: Air and other gases compatible with standard Buna seals.
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 140°F (60°C) ambient;
0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table on proceeding page.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves. Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 6.0 to 120V DC
Nominal Power: DC — .65 Watts
Coil Construction: Molded and potted Class F. (Class H optional) Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
Body: Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.) Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.* Orifice Diameter: See table on proceeding page.
Porting: 1/8′′ NPT (Std.)
Housing: Grommet and 1/2′′ NPT conduit – many options available.*
Listings: Most valves are UL and CSA listed — consult factory.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc. Valve Weight: Grommet Valve: 0.38 lbs, Conduit Valve: 0.44 lbs
Repair Packs: See table on proceeding page.
Options: Alternate Port Locations, Metering and Alternate Elastomers*
* Consult representative or factory for options and specifications.
DE-ENERGIZED (OFF)
OUT IN
ENERGIZED (ON)
Series 50 LLW >> Model LLW52
Low, Low Wattage — 2-Way Normally Closed Valve
General purpose safety valve for pneumatic applications. The versatility of these valves is increased to include the handling of hot air, refrigerants and many other media, by the use of different seals. Air and other gases compatible with standard Buna seals.
 • General purpose valve with reduced power consumption. • Increased versatility.
• For pneumatic application.
• Increased to handle hot air, refrigerants and other gases.
                                                                                                                                     OUT
IN
IN
                                                            OUT
        244 >>> 1-860-229-4884 >>> www.peterpaul.com
