P. 275

 2.84 72.1
1/4 OR 1/8 NPT OUTLET
.44 11.1
.88 22.3
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
DC
   500
   235
   200
   125
   100
    50
    25
    5
ORIFICE SIZE N.C.
1/32 3/64 1/16 3/32 1/8 5/32 3/16 1/4
CV FACTOR N.C.
.024 .052 .095 .156 .214 .404 .500 .700
DIN COIL
1/8 NPT PORTS
22G7DELM 22H7DELM 22J7DELM 22K7DELM 22N7DELM 22O7DELM 22P7DELM 22R7DELM
VALVE NUMBER 1/4 NPT PORTS
22G9DELM 22H9DELM 22J9DELM 22K9DELM 22N9DELM 22O9DELM 22P9DELM 22R9DELM
LEADED COIL
1/8 NPT PORTS
22G7DGLM 22H7DGLM 22J7DGLM 22K7DGLM 22N7DGLM 22O7DGLM 22P7DGLM 22R7DGLM
1/4 NPT PORTS
22G9DGLM 22H9DGLM 22J9DGLM 22K9DGLM 22N9DGLM 22O9DGLM 22P9DGLM 22R9DGLM
ORDERING INFORMATION:
1.22 30.9
2X 10-32 UNF-2B
.88 22.3
1.78 45.1
1.61 41
.91 23.2
(+) SPADE TO LATCH
1/4 OR 1/8 NPT INLET
.31 MFT
.44 11.1
(+) SPADE TO UNLATCH
1.86 47.2
2X .34 8.8
(+) LEADS BLUE TO UNLATCH
(+) LEADS BLUE
TO UNLATCH

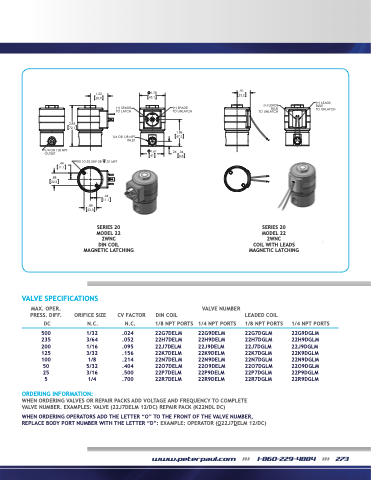

SERIES 20 MODEL 22
SERIES 20
SERIES 20 MODEL 22 2W2NWCNC
MODEL 22
MAGNETIC LADTICNHCINOGILDIN COIL MAGNETIC LATCHING
MAGNETIC LATCHING COIL WITH LEADS
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (22J7DELM 12/DC) REPAIR PACK (K22NDL DC)
WHEN ORDERING OPERATORS ADD THE LETTER ā€œOā€ TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER ā€œDā€: EXAMPLE: OPERATOR (O22J7DELM 12/DC)
www.peterpaul.com >>> 1-860-229-4884 >>> 273
SERIES 20 MODEL 22
2WNC
2WNC
COIL WITH LEADS MAGNETIC LATCHING
