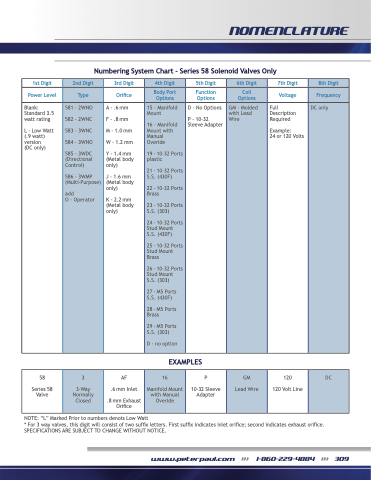

 NOMENCLATURE
   Numbering System Chart - Series 58 Solenoid Valves Only
   1st Digit
   2nd Digit
   3rd Digit
   4th Digit
   5th Digit
   6th Digit
   7th Digit
   8th Digit
   Power Level
  Type
  Orifice
  Body Port Options
  Function Options
  Coil Options
  Voltage
  Frequency
   Blank: Standard 3.5 watt rating
L - Low Watt (.9 watt) version
(DC only)
  581 - 2WNO 582 - 2WNC 583 - 3WNC 584 - 3WNO
585 - 3WDC (Directional Control)
586 - 3WMP (Multi-Purpose)
add
O - Operator
  A - .6 mm F - .8 mm M - 1.0mm W - 1.2mm
Y - 1.4mm (Metal body only)
J - 1.6mm (Metal body only)
K - 2.2mm (Metal body only)
  15 - Manifold Mount
16 - Manifold Mount with Manual Overide
19 - 10-32 Ports plastic
21 - 10-32 Ports S.S. (430F)
22 - 10-32 Ports Brass
23 - 10-32 Ports S.S. (303)
24 - 10-32 Ports Stud Mount S.S. (430F)
25 - 10-32 Ports Stud Mount Brass
26 - 10-32 Ports Stud Mount S.S. (303)
27 - M5 Ports S.S. (430F)
28 - M5 Ports Brass
29 - M5 Ports S.S. (303)
D - no option
  D - No Options
P - 10-32 Sleeve Adapter
  GM - Molded with Lead Wire
  Full Description Required
Example:
24 or 120 Volts
  DC only
  EXAMPLES
NOTE: ā€œLā€ Marked Prior to numbers denots Low Watt
* For 3 way valves, this digit will consist of two suffix letters. First suffix indicates inlet orifice; second indicates exhaust orifice. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
 58
Series 58 Valve
   3
3-Way Normally Closed
   AF
.6 mm Inlet
.8 mm Exhaust Orifice
   16
Manifold Mount with Manual Overide
   P
10-32 Sleeve Adapter
   GM Lead Wire
   120
120 Volt Line
  DC
