P. 63

 EXHAUST
INLET
2X .66 16.9
1.57 39.8
2X 1/8-27 NPT
.27 6.8
R.10 2.6
1.24 31.5
2.12
53.9 EXHAUST
1.73 44
2X 1/8-27 NPT
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC
150 60 30
WITHOUT BRACKET
43JJ15DGM 43KK15DGM 43NK15DGM
WITH BRACKET
43JJ15DBGM 43KK15DBGM 43NK15DBGM
1.33 33.7
CYL
.49 12.4
INLET
CYL
2X .078 .19
(#2 PLASTITE SCREWS)
.95 24.1
2X .66 16.9
.49 12.4
2X .078 .19
(#2 PLASTITE SCREWS)

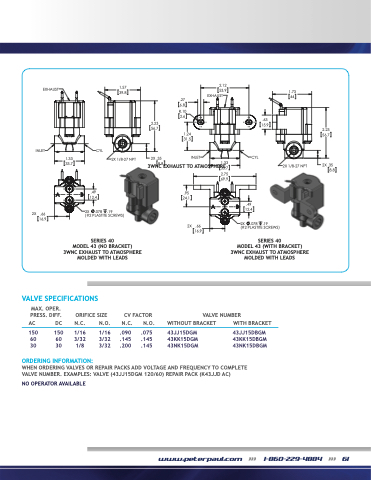

SERIES 40
SERIES 40
SERIES 40
SERIES 40
MODEL 43 (NO BRACKET)
MODEL 43 (WITH BRACKET)
MODEL 43 (NO BRACKET)
MODEL 43 (WITH BRACKET)
3WNC EXHAUST TO ATMOSPHERE
3WNC EXHAUST TO ATMOSPHERE
3WNC EXHAUST TO ATMOSPHERE
3WNC EXHAUST TO ATMOSPHERE
MOLDED WITH LEADS
MOLDED WITH LEADS
MOLDED WITH LEADS
MOLDED WITH LEADS
ORIFICE SIZE DC N.C. N.O.
150 1/16 1/16 60 3/32 3/32 30 1/8 3/32
CV FACTOR N.C. N.O.
.090 .075 .145 .145 .200 .145
VALVE NUMBER
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (43JJ15DGM 120/60) REPAIR PACK (K43JJD AC)
NO OPERATOR AVAILABLE
2.23 56.7
2X .35 8.8
.63 15.9
2.23 56.7
2X .35 8.8
3WNC EXHAUST TO ATMOSPHERE
1.33
33.7 2.75 69.9
www.peterpaul.com >>> 1-860-229-4884 >>> 61
