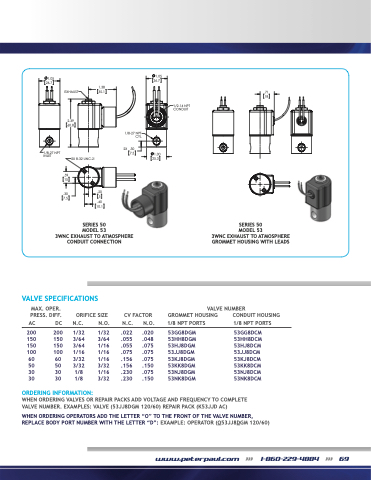

P. 71

 1.05 26.7
1/8-27 NPT INLET
1.38 EXHAUST 35.1
2.39 60.8
1.05 26.7
2X .30
7.5 1.00
.71 18
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
.AC DC 200 200
150 150 150 150 100 100 60 60 50 50 30 30 30 30
ORIFICE SIZE N.C. N.O.
1/32 1/32 3/64 3/64 3/64 1/16 1/16 1/16 3/32 1/16 3/32 3/32
1/8 1/16 1/8 3/32
CV FACTOR N.C. N.O.
.022 .020 .055 .048 .055 .075 .075 .075 .156 .075 .156 .150 .230 .075 .230 .150
VALVE NUMBER
ORDERING INFORMATION:
.59 15
.30 7.5
2X 8-32 UNC-2B .23 MFT 25.3
.20 5 .40 10.1
SERIES 50
MODEL 53
3WNC EXHAUST TSOEARTIEMSO5S0PHERE CONDUIT COMNNOEDCETLIO5N3
SERIES 50
3WNC EXHAUST TO ATMOSPHERE CONDUIT CONNECTION
MODEL 53
3WNC EXHAUST TOSAETRMIEOSS5P0HERE GROMMET HOUSINMG OWDITEHLL5E3ADS
1/8-27 NPT CYL
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (53JJ8DGM 120/60) REPAIR PACK (K53JJD AC)
WHEN ORDERING OPERATORS ADD THE LETTER ā€œOā€ TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER ā€œDā€: EXAMPLE: OPERATOR (O53JJ8DGM 120/60)
1/2-14 NPT CONDUIT
GROMMET HOUSING 1/8 NPT PORTS
53GG8DGM 53HH8DGM 53HJ8DGM 53JJ8DGM 53KJ8DGM 53KK8DGM 53NJ8DGM 53NK8DGM
CONDUIT HOUSING 1/8 NPT PORTS
53GG8DCM 53HH8DCM 53HJ8DCM 53JJ8DCM 53KJ8DCM 53KK8DCM 53NJ8DCM 53NK8DCM
3WNC EXHAUST TO ATMOSPHERE GROMMET HOUSING WITH LEADS
www.peterpaul.com >>> 1-860-229-4884 >>> 69
