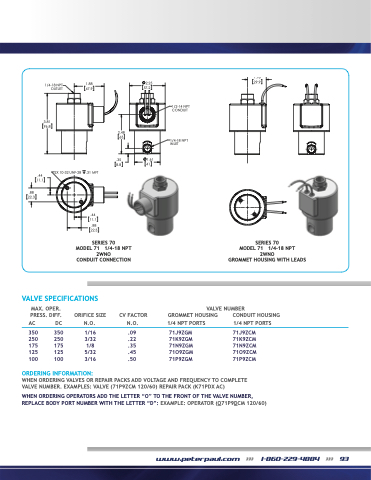

P. 95

 3.81 96.8
.44 11.1
.88 22.3
2.48 63
1/2-14 NPT CONDUIT
1/4-18 NPT INLET
1/4-18 NPT OUTLET
1.88 47.9
2.25 57.2
.35 1.61 8.8 41
1.18 29.9
2X 10-32 UNF-2B
.31 MFT
.44 11.1
.88 22.3
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
350     350
250     250
175     175
125     125
100     100
ORIFICE SIZE N.O.
1/16 3/32 1/8 5/32 3/16
CV FACTOR N.O.
.09 .22 .35 .45 .50
GROMMET HOUSING 1/4 NPT PORTS
71J9ZGM 71K9ZGM 71N9ZGM 71O9ZGM 71P9ZGM
CONDUIT HOUSING 1/4 NPT PORTS
71J9ZCM 71K9ZCM 71N9ZCM 71O9ZCM 71P9ZCM
ORDERING INFORMATION:
SERIES 70
SERIES 70
SERIES 70
SERIES 70
MODEL 71 1/4-18 NPT
MODEL 71 1/4-18 NPT
MODEL 71 1/4-18 NPT
MODEL 71 1/4-18 NPT
2WNO
2WNO
2WNO
2WNO
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
VALVE NUMBER
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (71P9ZCM 120/60) REPAIR PACK (K71PDX AC)
WHEN ORDERING OPERATORS ADD THE LETTER ā€œOā€ TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER ā€œDā€: EXAMPLE: OPERATOR (O71P9DCM 120/60)
www.peterpaul.com >>> 1-860-229-4884 >>> 93
