Series 80 Model E828 C/I Rated
Large Orifice, Internally Piloted
2-Way Normally Closed Valve
Peter Paul offers a line of Hazardous Location rated, large orifice Automatic Safety Shut Off Valves designed specifically for gas appliances. These valves meet the standards for Commercial/Industrial (C/I) Safety Shut Off Valves per ANSI Z21.21 (CSA 6.5). They are well suited for use in heating equipment, furnaces, ovens, kilns, boilers and gas generators.
• Large orifice sizes for high capacity.
• Body is made of 316 stainless steel.
• Potted coil for outdoor service.
• Operates on differential pressure — Internal Pilot.
• Voltages: 120/60, 12/DC and 24/DC
• Power Input: 1.8 watts
• Rated for ambient temperatures of -40°C to +65°C
• NPT threaded connections.
- SPECIFICATIONS
- 2-D & 3-D CAD DRAWING
- FLOW CHART
VALVE SPECIFICATIONS
| MAX. OPER. PRESS. DIFF. |
MIN. OPER. PRESS. DIFF. |
GAS CAPACITY BTU/Hr |
CV FACTOR | PIPE SIZE | PART NUMBER | |
| AC | DC | |||||
 |
||||||
| 30 | 30 | 3 | 3,375,000 | 5.8 | 3/4 NPT | E828Y29DCCP-S |
| 30 | 30 | 3 | 7,575,000 | 13.0 | 1 NPT | E828D23DCCP-S |
| 30 | 30 | 3 | 16,875,000 | 29.0 | 1 1/2 NPT | E828E24DCCP-S |
Capacity is calculated at a 3 PSI pressure drop, 7.5 PSI inlet pressure with 1,000 BTU/Cu. FT, .64 Specific Gravity Gas
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (E828D23DCCP-S 24/DC) SOLENOID REPAIR PACK (80-30043-DC or 80-30043-AC)
BODY REPAIR PACKS (80-30044 for 3/4″, 80-30045 for 1″, 80-30046 for 1 1/2″)
OPERATING CONDITIONS
Media: Fuel gas.
Valve Temperature Range: – 40°F (-40°C) to 150°F (65°C) ambient and media.
Maximum Operating Pressure Differentials: See table above.
Minimum Operating Pressure Differentials: 3 PSI
Leakage: Bubble tight
ELECTRICAL CHARACTERISTICS
Coil Voltage: 120V AC 60 HZ, 12V DC and 24V DC
Nominal Power: 1.8 Watts
Coil Construction: Potted Class F
Operating Speed: Up to 100 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
Body: 316 Stainless Steel
Internal Components: Stainless Steel (Std.)
Elastomers: Nitrile (Buna) (Std.).
Housing: 1/2″ NPT conduit
Life Expectancy: Millions of cycles, depending on application variables.
Repair Packs: See table above.

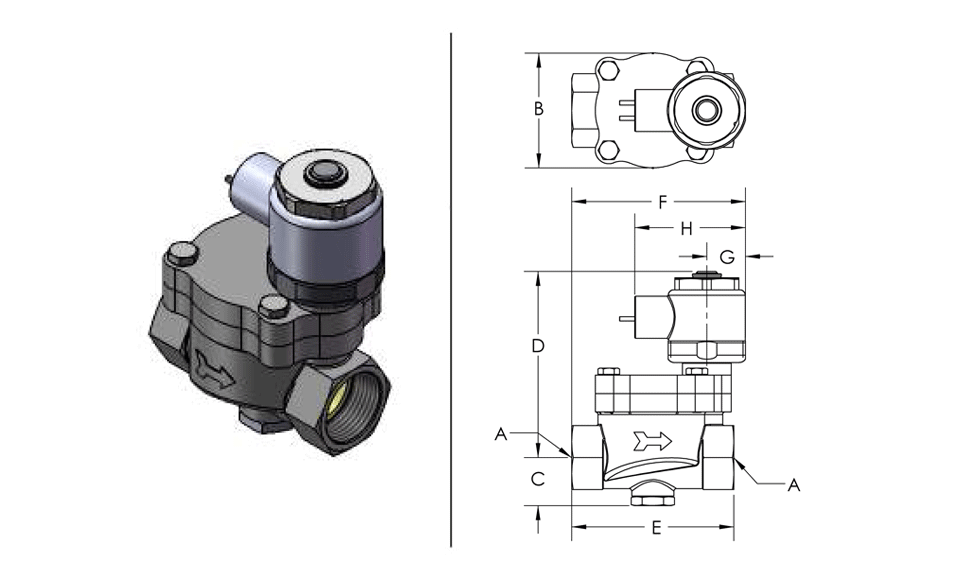

Series 80 Internal Pilot Valve – Explosion Proof Housing
| A | B | C | D | E | F | G | H | |||||
 |
||||||||||||
| inches |
3/4″ NPT
|
2.05 | 1.02 | 4.28 | 2.80 | 2.97 | .91 | 2.60 | ||||
| mm | 52.1 | 25.9 | 108.7 | 71.1 | 75.4 | 23.1 | 66.0 | |||||
| inches | 1″ NPT | 2.64 | 1.18 | 4.43 | 3.78 | 3.96 | .91 | 2.60 | ||||
| mm | 67.1 | 30.0 | 112.5 | 96.0 | 100.6 | 23.1 | 66.0 | |||||
| inches | 1-1/2″ NPT | 3.19 | 1.42 | 4.87 | 4.49 | 4.67 | .91 | 2.60 | ||||
| mm | 81.0 | 36.1 | 123.7 | 114.0 | 118.6 | 23.1 | 66.0 | |||||
