SERIES 50 SOLENOID VALVE SPECIFICATIONS
OPERATING CONDITIONS
Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam gasoline, and many oils requires special seal materials - Consult representative or factory. (Series 50 pressure ratings may change due to the viscosity of the liquid - consult factory for de-rating)
Value Temperature Range: STANDARD VALUES - 0°F (-18°C) to 104°F (40°C) ambient; 0°F (18°C) to 150°F (65°C) media. OPTIONAL VALUES - can tolerate much higher or much lower ambient and media temperatures. Consult factory or specifics.
Maximum Operating Pressure Defferentials: See Catalog listing.
Burst Pressure: 50 - 5000 PSI
Leakage: Bubble tight for standard valves
Vacuum: To 5 Microns - Consult factory
ELECTRICAL CHARACTERISTICS
Coil Voltage: 5.4 to 575 VAC 50-60 HZ. - 3.0 to 300V DC
Nominal Power: D.C. -7.0. Watts A.C. -6.0 Watts
Coil Construction: Molded Class F
Typical Response Time on Air: 4-16 Milliseconds - all series
MECHANICAL CHARACTERISTICS
Body: Stainless steel (standard)
Orifice Diameter: See catalog listings
Porting: 1/8" NPT
Housing: Grommet & 1/2" NPT conduit
Listings: Most valves are U.L. and CSA listed - Consult factory for specifics.

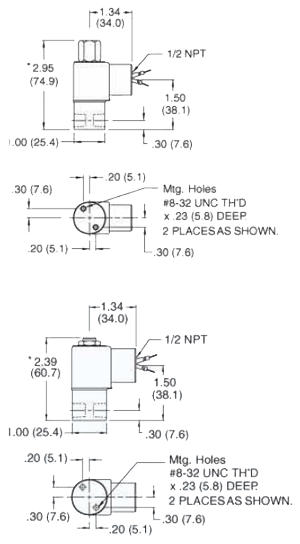

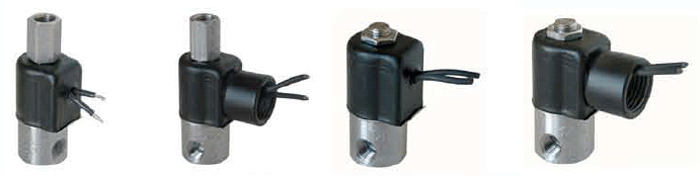

2-WAY NORMALLY
OPEN GROMMET
OR ANY 3-WAY
2-WAY NORMALLY
OPEN CONDUIT
OR ANY 3-WAY
2-WAY NORMALLY
CLOSED ONLY
GROMMET
2-WAY NORMALLY
CLOSED ONLY
CONDUIT
|
SERIES 50 - MODEL 51
|
| |
VALVE NUMBER |
†MAX. OPER.
PRESS. DIFF.
|
ORIFICE
SIZE
|
CV
FACTOR
|
| AC |
DC |
INLET EXH. |
INLET EXH. |
| 400 |
200 |
1/32 |
.020 |
| 200 |
200 |
3/64 |
.048 |
| 125 |
60 |
1/16 |
.075 |
| 40 |
40 |
3/32 |
.150 |
|
GROMMET HOUSING
Grommet Value WT. 0.38 LB.
|
CONDUIT HOUSING
Conduit Valve WT. 0.48 LB
|
| 1/8 NPT PORTS |
1/8 NPT PORTS |
| 51G8XGB |
51G8XCB |
| 51H8XGB |
51H8XCB |
| 51J8XGB |
51J8XCB |
| 51K8XGB |
51K8XCB |
|
|
SERIES 50 - MODEL 52
|
| |
VALVE NUMBER |
†MAX. OPER.
PRESS. DIFF.
|
ORIFICE
SIZE
|
CV
FACTOR
|
| AC |
DC |
INLET EXH. |
INLET EXH. |
| 500* (1000) |
250* (1000) |
1/32 |
.022 |
| 400* (700) |
150 (450) |
3/64 |
.055 |
| 200 (470) |
100 (325) |
1/16 |
.075 |
| 150 (270) |
75 (210) |
5/64 |
.134 |
| 100 (260) |
45 (175) |
3/32 |
.156 |
| 75 (135) |
25 (100) |
1/8 |
.230 |
| 40 (50) |
10 (20) |
5/32 |
.292 |
|
GROMMET HOUSING
Grommet Value WT. 0.38 LB.
|
CONDUIT HOUSING
Conduit Valve WT. 0.44 LB
|
| 1/8 NPT PORTS |
1/8 NPT PORTS |
| 52G8DGB |
52G8DCB |
| 52H8DGB |
52H8DCB |
| 52J8DGB |
52J8DCB |
| 52V8DGB |
52V8DCB |
| 52K8DGB |
52K8DCB |
| 52N8DGB |
52N8DCB |
| 52O8DGB |
52O8DCB |
|
|
SERIES 50 - MODEL 53
|
| |
VALVE NUMBER |
†MAX. OPER.
PRESS. DIFF.
|
ORIFICE
SIZE
|
CV
FACTOR
|
| AC |
DC |
INLET EXH. |
INLET EXH. |
| 200 |
200 |
1/32 |
1/32 |
.022 |
.020 |
| 150 |
150 |
3/64 |
3/64 |
.055 |
.048 |
| 150 |
150 |
3/64 |
1/16 |
.055 |
.075 |
| 100 |
100 |
1/16 |
1/16 |
.075 |
.075 |
| 60 |
60 |
3/32 |
1/16 |
.156 |
.075 |
| 50 |
50 |
3/32 |
3/32 |
.156 |
.150 |
| 30 |
30 |
1/8 |
1/16 |
.230 |
.075 |
| 30 |
30 |
1/8 |
3/32 |
.230 |
.150 |
|
GROMMET HOUSING
Grommet Value WT. 0.38 LB.
|
CONDUIT HOUSING
Conduit Valve WT. 0.44 LB
|
| 1/8 NPT PORTS |
1/8 NPT PORTS |
| 53GG8DGB |
53GG8DCB |
| 53HH8DGB |
53HH8DCB |
| 53HJ8DCB |
53HJ8DCB |
| 53JJ8DGB |
53JJ8DCB |
| 53KJ8DGB |
53KJ8DCB |
| 53KK8DGB |
53KK8DCB |
| 53NJ8DGB |
53NJ8DCB |
| 53NK8DGB |
53NK8DCB |
|
|
SERIES 50 - MODEL 54
|
| |
VALVE NUMBER |
†MAX. OPER.
PRESS. DIFF.
|
ORIFICE
SIZE
|
CV
FACTOR
|
| AC |
DC |
INLET EXH. |
INLET EXH. |
| 150 |
150 |
1/32 |
1/32 |
.020 |
.022 |
| 125 |
125 |
3/64 |
3/64 |
.048 |
.055 |
| 100 |
75 |
1/16 |
1/16 |
.075 |
.075 |
| 75 |
45 |
1/16 |
3/32 |
.075 |
.156 |
| 50 |
50 |
3/32 |
3/32 |
.150 |
.156 |
| 40 |
25 |
3/32 |
1/8 |
.150 |
.230 |
|
GROMMET HOUSING
Grommet Value WT. 0.38 LB.
|
CONDUIT HOUSING
Conduit Valve WT. 0.44 LB
|
| 1/8 NPT PORTS |
1/8 NPT PORTS |
| 54GG8XGB |
54GG8XCB |
| 54HH8XGB |
54HH8XCB |
| 54JJ8XGB |
54JJ8XCB |
| 54JK8XGB |
54JK8XCB |
| 54KK8XGB |
54KK8XCB |
| 54KN8XGB |
54KN8XCB |
|
|
SERIES 50 - MODEL 55
|
| |
VALVE NUMBER |
†MAX. OPER.
PRESS. DIFF.
|
ORIFICE
SIZE
|
CV
FACTOR
|
| AC |
DC |
INLET EXH. |
INLET EXH. |
| 300 |
200 |
1/32* |
1/32 |
.022* |
.020 |
| 200 |
100 |
3/64* |
3/64 |
.055* |
.048 |
| 100 |
50 |
1/16* |
1/16 |
.075* |
.075 |
| 75 |
25 |
3/32* |
1/16 |
.156* |
.075 |
| 75 |
40 |
3/32* |
3/32 |
.156* |
.150 |
| 45 |
25 |
1/8* |
3/32 |
.230* |
.150 |
|
GROMMET HOUSING
Grommet Value WT. 0.38 LB.
|
CONDUIT HOUSING
Conduit Valve WT. 0.44 LB
|
| 1/8 NPT PORTS |
1/8 NPT PORTS |
| 55GG8XGB |
55GG8XCB |
| 55HH8XGB |
55HH8XCB |
| 55JJ8XGB |
55JJ8XCB |
| 55KJ8XGB |
55KJ8XCB |
| 55KK8XGB |
55KK8XCB |
| 55NK8XGB |
55NK8XCB |
|
|
SERIES 50 - MODEL 56
|
| |
VALVE NUMBER |
†MAX. OPER.
PRESS. DIFF.
|
ORIFICE
SIZE
|
CV
FACTOR
|
| AC |
DC |
INLET EXH. |
INLET EXH. |
| 125 |
125 |
1/32* |
1/32 |
.022* |
.020 |
| 100 |
100 |
3/64* |
3/64 |
.055* |
.048 |
| 65 |
50 |
1/16* |
1/16 |
.075* |
.075 |
| 25 |
25 |
3/32* |
3/32 |
.156* |
.150 |
|
GROMMET HOUSING
Grommet Value WT. 1.13 LB.
|
CONDUIT HOUSING
Conduit Valve WT. 1.19 LB
|
| 1/8 NPT PORTS |
1/8 NPT PORTS |
| 56GG8XGB |
56GG8XCB |
| 56HH8XGB |
56HH8XCB |
| 56JJ8XGB |
56JJ8XCB |
| 56KK8XGB |
56KK8XCB |
|
†Ratings in brackets are options extended ratings; consult factory
|
