Peter Paul Excellence

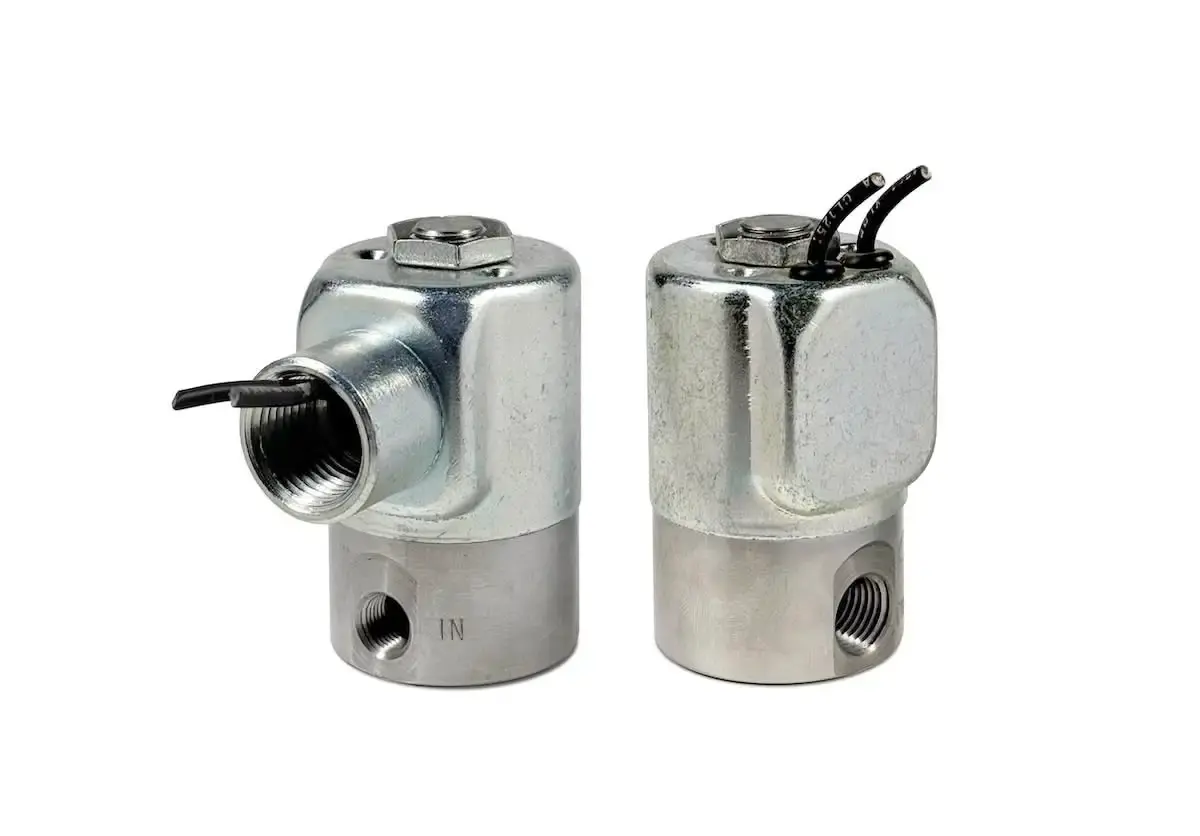

Series 20 Model 22

2-Way Normally Closed Valve

A complete line of valves with a great selection of options and exceptional proven performance. The standard in the field. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

• The flagship valve initially created for fluid power industry.
• Heavy duty and made of stainless steel.
• A real workhorse with proven performance.
• It has the greatest amount of options available of all the valves.
• Wide range of orifice sizes from 1/32″ to 5/16″.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

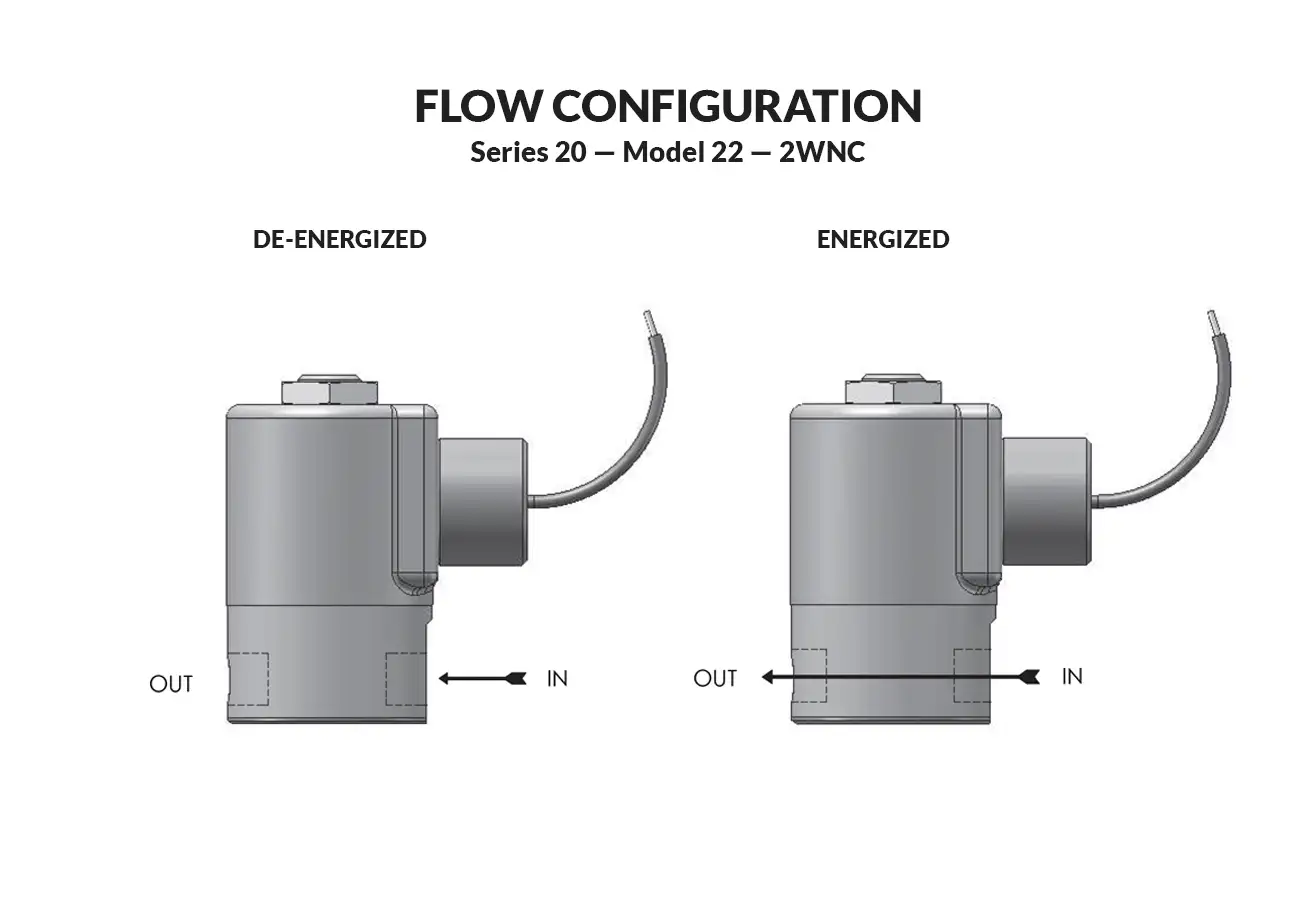

  • FLOW CHART
  • NOMENCLATURE
VALVE SPECIFICATIONS

+ MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR     VALVE NUMBER
GROMMET HOUSING
CONDUIT HOUSING
AC DC         1/8 NPT PORTS 1/4 NPT PORTS 1/8 NPT PORTS 1/4 NPT PORTS
500   500   1/32 .024     22G7DGV 22G9DGV 22G7DCV 22G9DCV
250 (500) 250 (500) 3/64 .052     22H7DGV 22H9DGV 22H7DCV 22H9DCV
200 (400) 200 (400) 1/16 .095     22J7DGV 22J9DGV 22J7DCV 22J9DCV
125 (300) 125 (250) 3/32 .156     22K7DGV 22K9DGV 22K7DCV 22K9DCV
100 (200) 100 (200) 1/8 .284     22N7DGV 22N9DGV 22N7DCV 22N9DCV
75   50   5/32 .404     22O7DGV 22O9DGV 22O7DCV 22O9DCV
50   25   3/16 .500     22P7DGV 22P9DGV 22P7DCV 22P9DCV
20   5   1/4 .700     22R7DGV 22R9DGV 22R7DCV 22R9DCV
15     5/16 1.000     22S9DGV 22S9DCV

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (22N9DCV-120/60) REPAIR PACK (K22NDD-AC)

+ Ratings in brackets are optional extended ratings; consult factory.

OPERATING CONDITIONS

Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 6 to 825V AC 60 HZ. and 5 to 720V AC 50 HZ. — 1.8 to 265V DC
Nominal Power: AC — 7.7 Watts DC — 9.5 Watts
Coil Construction: Non-molded Class A (Std.), Molded and Potted Class F or Class H (Opt.)
Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.) or Brass (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: See table above.
Housing: Grommet and 1/2″ NPT conduit – many options available.*
Listings: Most valves are UL and CSA listed.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: Grommet Valve: 1.13 lb Conduit Valve: 1.19 lb
Repair Packs: See table above.
Options: Alternate Port Locations, Metering, Manual Override, Alternate Elastomers, Spade Terminal Coil, European Style DIN, Explosion Proof and Magnetic Latching Coil

* Consult representative or factory for options and specifications.

Series 20 General Purpose Valves

  A A1 A2 A3 A4 A5 B C C1 C2 C3 C4

inches 2.75 3.48 2.92 3.65 3.22 3.95 .34 1.67 2.39 2.15 1.65 2.63
mm 69.9 88.4 74.1 92.6 81.8 100.3 8.6 42.5 60.7 54.7 42.0 66.8

  D D1 D2 E F G H I I1 J J1 K

inches 1.69 1.61 1.88 .88 .88 #10-32 X .31 1/8 OR 1/4 NPT 1.88 2.13 .92 .85 2.52
mm 42.9 41.0 47.7 22.4 22.4 7.9 DP 1/8 OR 1/4 NPT 47.8 54.1 23.4 21.5 64.0


Numbering System Chart

Series Designation

Type

Orifice*

Port Size And Body Material

Body Port and Function Options

Housing Options

Coil Options

Voltage

Frequency

NOTE: “G” Marked prior to the valve number denotes Gang Feeding.
“E” Marked prior to the valve number denotes Explosion Proof.
“H” Marked prior to the valve number denotes High Pressure Valve. “F” Marked prior to the valve number denotes Filter Valve.
Where numerous options are specified, valves will be marked with 2 numbers to identify valve series and type, followed by specifically assigned numbers.
* For 3 way valves this number will consist of two suffix letters. The first indicates the inlet orifice & the second the exhaust orifice. ** For valves with a combination of two standard body options, this suffix will consist of two letters.
**** In Series 70 -1/16 - 5/16 Orifice.
† For series H high pressure valves only.
†† 2 in Series 15 is 1/8 NPT Aluminum only.
††† Letter K followed by “M” in 7th digit column indicates molded spade terminal coil & yoke.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
