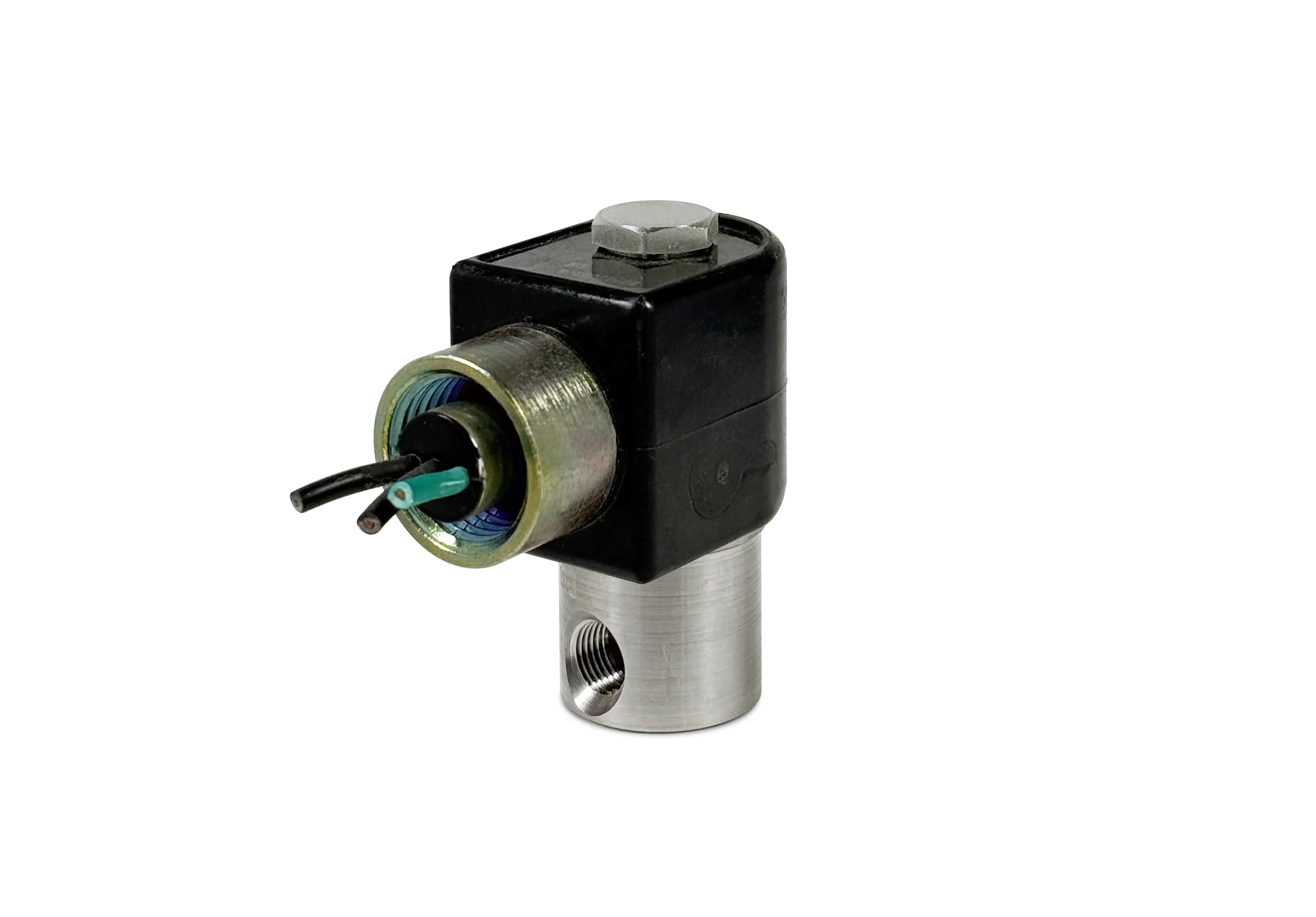

Series 50 ELW Model ELW52
Encapsulated Low Wattage Hazardous Location
2-Way Normally Closed Valve
A UL listed, low watt, miniature hazardous location valve with minimal space and energy requirements in volatile environments. Air and other fluids, compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many other media require special seal materials.
• Smallest hazardous location solenoid valve.
• Best ambient and high temperature ratings on the market.
• NEMA 4 rating is standard with encapsulated coil.
• High quality engineering.
- SPECIFICATIONS
- 2-D & 3-D CAD DRAWING

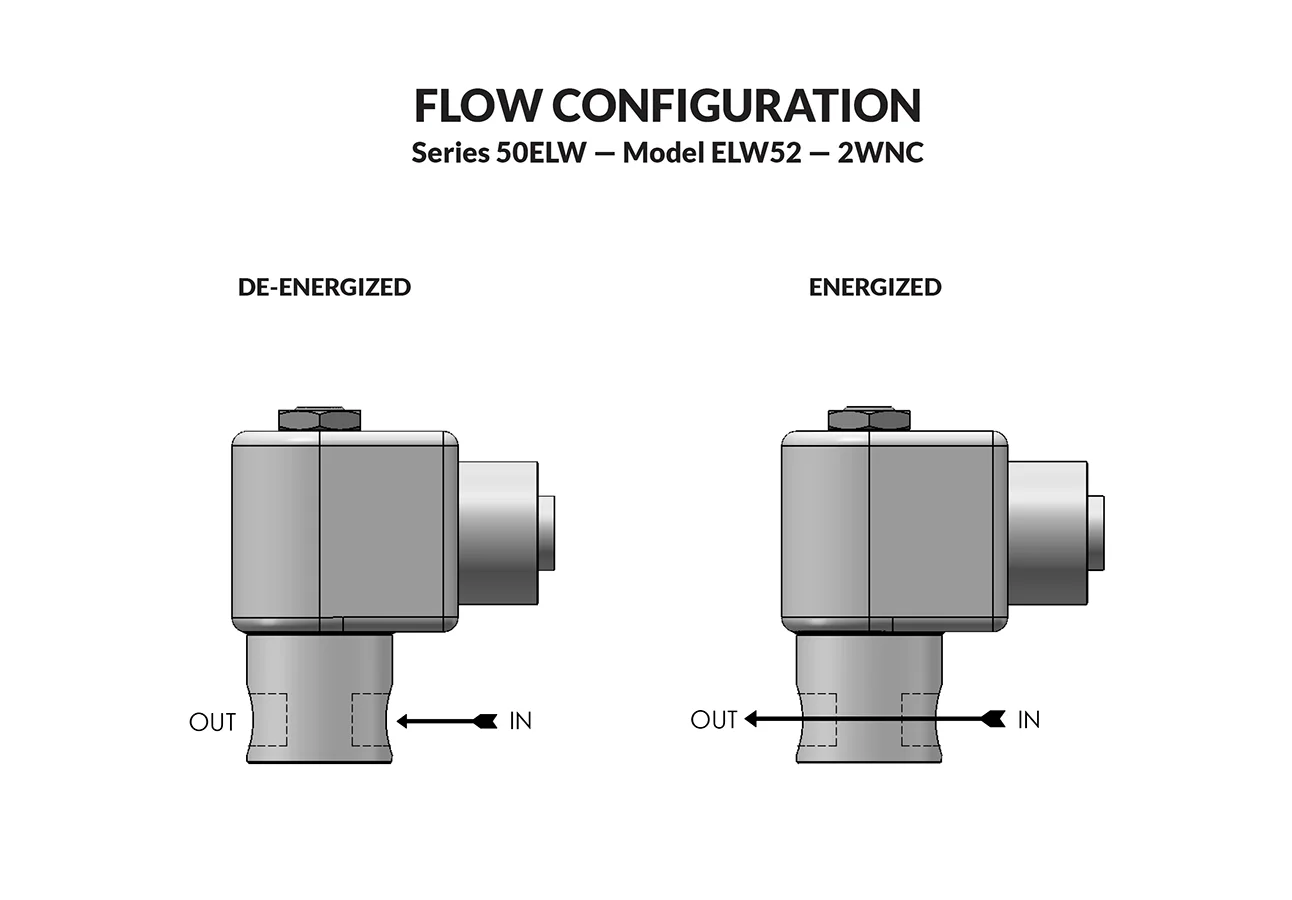

- FLOW CHART
- NOMENCLATURE
| MAX. OPER. PRESS. DIFF. |
|||||||||||||||
| GAS | LIQUID | ORIFICE SIZE | VALVE NUMBER | ||||||||||||
| AC | DC | AC | DC | ||||||||||||
 |
|||||||||||||||
| 600 | 200 | 600 | 200 | 1/32 | ELW52G8DCCP | ||||||||||
| 250 | 80 | 250 | 80 | 3/64 | ELW52H8DCCP | ||||||||||
| 150 | 50 | 150 | 50 | 1/16 | ELW52J8DCCP | ||||||||||
| 100 | 25 | 100 | 25 | 5/64 | ELW52V8DCCP | ||||||||||
| 85 | 20 | 85 | 20 | 3/32 | ELW52K8DCCP | ||||||||||
| 50 | 50 | 1/8 | ELW52N8DCCP | ||||||||||||
| 15 | 15 | 5/32 | ELW52O8DCCP | ||||||||||||
WHEN ORDERING VALVES OR REPAIR KITS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (ELW52J8DCCP-120/60) REPAIR KIT (5KELW52J-AC)
OPERATING CONDITIONS
Media: Air, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 140°F (60°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 12 to 370V AC 60 HZ. and 10.5 to 345V AC 50 HZ. — 3.5 to 120V DC
Nominal Power: AC — 1.8 Watts DC — 1.8 Watts
Coil Construction: Encapsulated Class F Coil with third wire ground
Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
Body: Stainless Steel (Std.) or Brass (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: 1/8″ NPT (Std.)
Housing: Encapsulated with 1/2″ NPT conduit
Listings: Valves are UL listed for Hazardous Locations — Class I, Div 1, Groups A, B, C, and D – Class II, Div 1, Groups E, F, and G; Div 2, Groups A, B, C, D, E, F, and G. “T” Rating as low as T5.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 0.60 lbs
Repair Kits: See table above.
Options: Alternate Port Locations, Metering, Alternate Elastomers and All Stainless Steel Construction*
* Consult representative or factory for options and specifications.
Series 50 ELW Encapsulated Low Watt Valves
| A | A1 | B | C | D | D1 | E | F | G | H | |
|
||||||||||
| inches | 2.48 | 3.78 | .30 | 2.10 | 1.20 | 1.00 | .59 | .41 | #8-32 x .23 | 1/8 NPT |
| mm | 63.0 | 96.0 | 7.6 | 53.3 | 30.5 | 25.4 | 15.0 | 10.4 | 5.8 DP | |
