Peter Paul Excellence

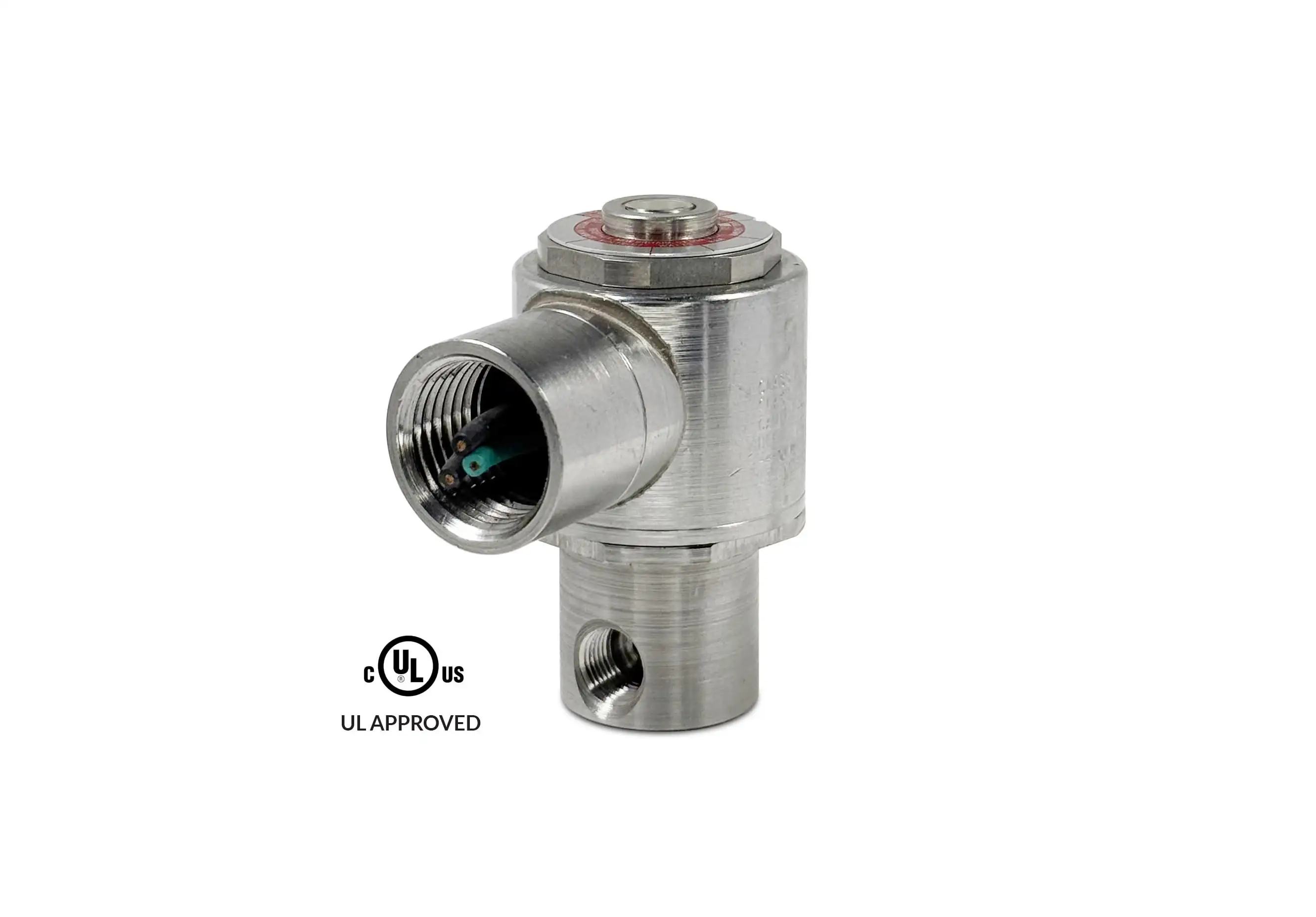

Series ELL50 Model ELL52

Very Low Wattage Hazardous Location
2-Way Normally Closed Valve

Peter Paul explosion proof valves are used where fire or explosion hazards exist due to the presence of flammable gases or vapors, flammable liquids, combustible dust, or easily ignitable fibers. Hazardous Location valves are recommended, or in some cases compulsory, where a high level of protection from explosion is required.

• Miniature Hazardous Location valves using even less power than an EL52.
• Flame-Proof construction.
• High quality engineering.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

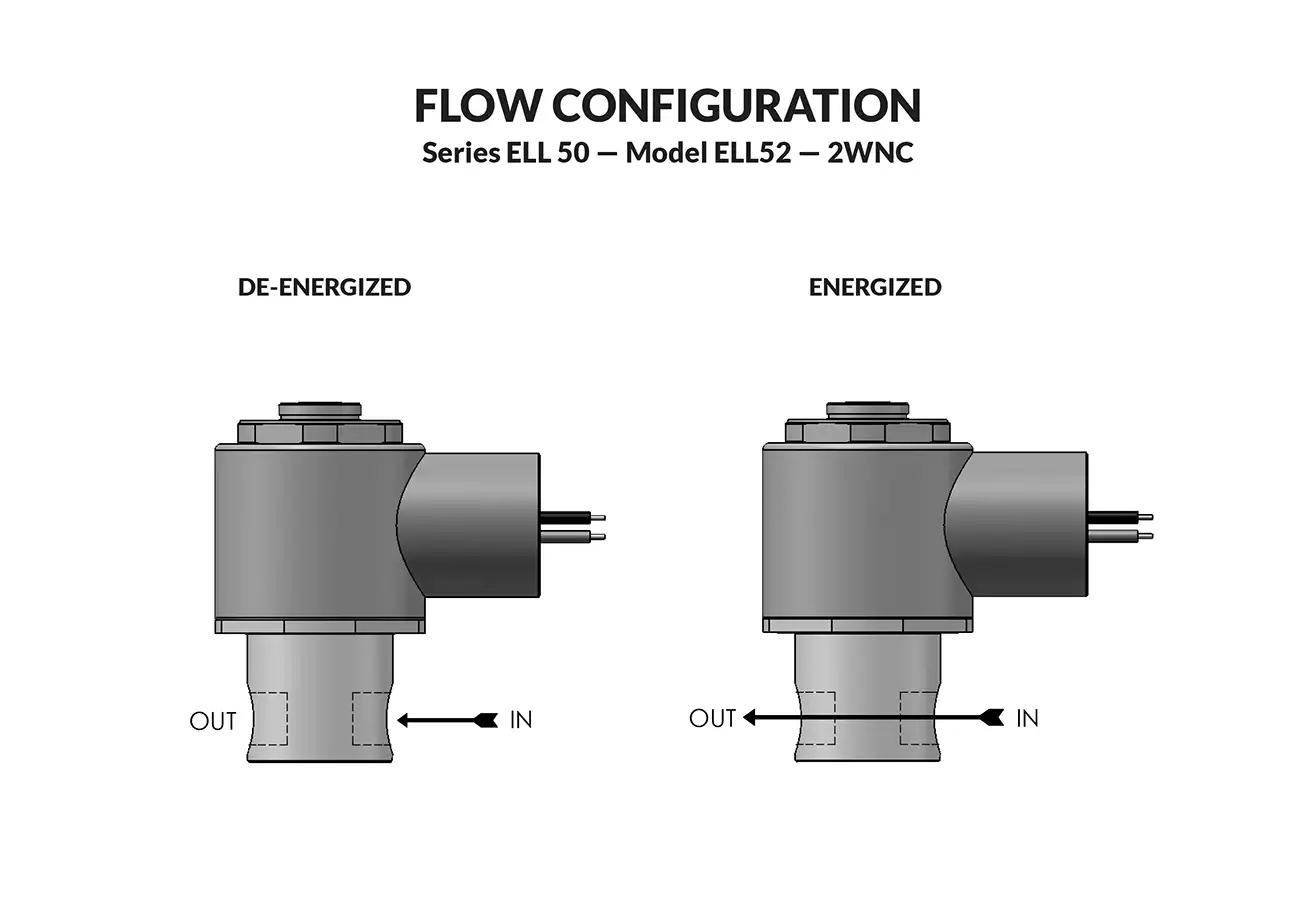

  • FLOW CHART
  • NOMENCLATURE
VALVE SPECIFICATIONS

MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR     VALVE NUMBER
(GAS ONLY) DC
120 1/32   .022       ELL52G8DCCM

WHEN ORDERING VALVES OR REPAIR KITS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (ELL52G8DCCM-12/DC) REPAIR KIT (5KELL52G-DC)

OPERATING CONDITIONS

Media: Air and other common gases only.*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 4000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 5 to 120V DC.
Nominal Power: DC — .85 Watts
Coil Construction: Molded Class F with third wire ground (Std.), Class H or Potted (Opt.)
Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.) or Brass (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: 1/8″ NPT (Std.)
Housing: Flame-Proof construction with 1/2″ NPT conduit
Listings: Valves are UL listed and CSA certified for Hazardous Locations — Class I, Div 1, Group C and D – Class II, Div 1, Groups E, F, and G: Div 2, Groups C, D, E, F, and G.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 0.65 lbs
Repair Kits: See table above.
Options: Alternate Port Locations, Metering, Alternate Elastomers and All Stainless Steel Construction*

* Consult representative or factory for options and specifications.

Series ELL50 Hazardous Location Valves

  A A1 A2 A3 A4 A5 B C C1 C2 C3 C4

inches 2.39 2.95 2.62 3.18 2.48 3.27 .30 1.22 1.89 1.67 1.07 2.23
mm 60.7 74.9 66.6 80.8 63.0 83.1 7.6 31.0 47.9 42.4 27.1 56.7

  D D1 D2 E F G H I I1 J J1 K

inches 1.05 1.00 1.44 .59 .40 #8-32 X .23 1/8 NPT 1.50 1.64 .61 .54 2.21
mm 26.7 25.4 36.5 15.0 10.1 5.8 DP 1/8 NPT 38.1 41.7 15.5 13.7 56.1


Numbering System Chart

Series Designation

Type

Orifice*

Port Size And Body Material

Body Port and Function Options

Housing Options

Coil Options

Voltage

Frequency

NOTE: “G” Marked prior to the valve number denotes Gang Feeding.
“E” Marked prior to the valve number denotes Explosion Proof.
“H” Marked prior to the valve number denotes High Pressure Valve. “F” Marked prior to the valve number denotes Filter Valve.
Where numerous options are specified, valves will be marked with 2 numbers to identify valve series and type, followed by specifically assigned numbers.
* For 3 way valves this number will consist of two suffix letters. The first indicates the inlet orifice & the second the exhaust orifice. ** For valves with a combination of two standard body options, this suffix will consist of two letters.
**** In Series 70 -1/16 - 5/16 Orifice.
† For series H high pressure valves only.
†† 2 in Series 15 is 1/8 NPT Aluminum only.
††† Letter K followed by “M” in 7th digit column indicates molded spade terminal coil & yoke.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
