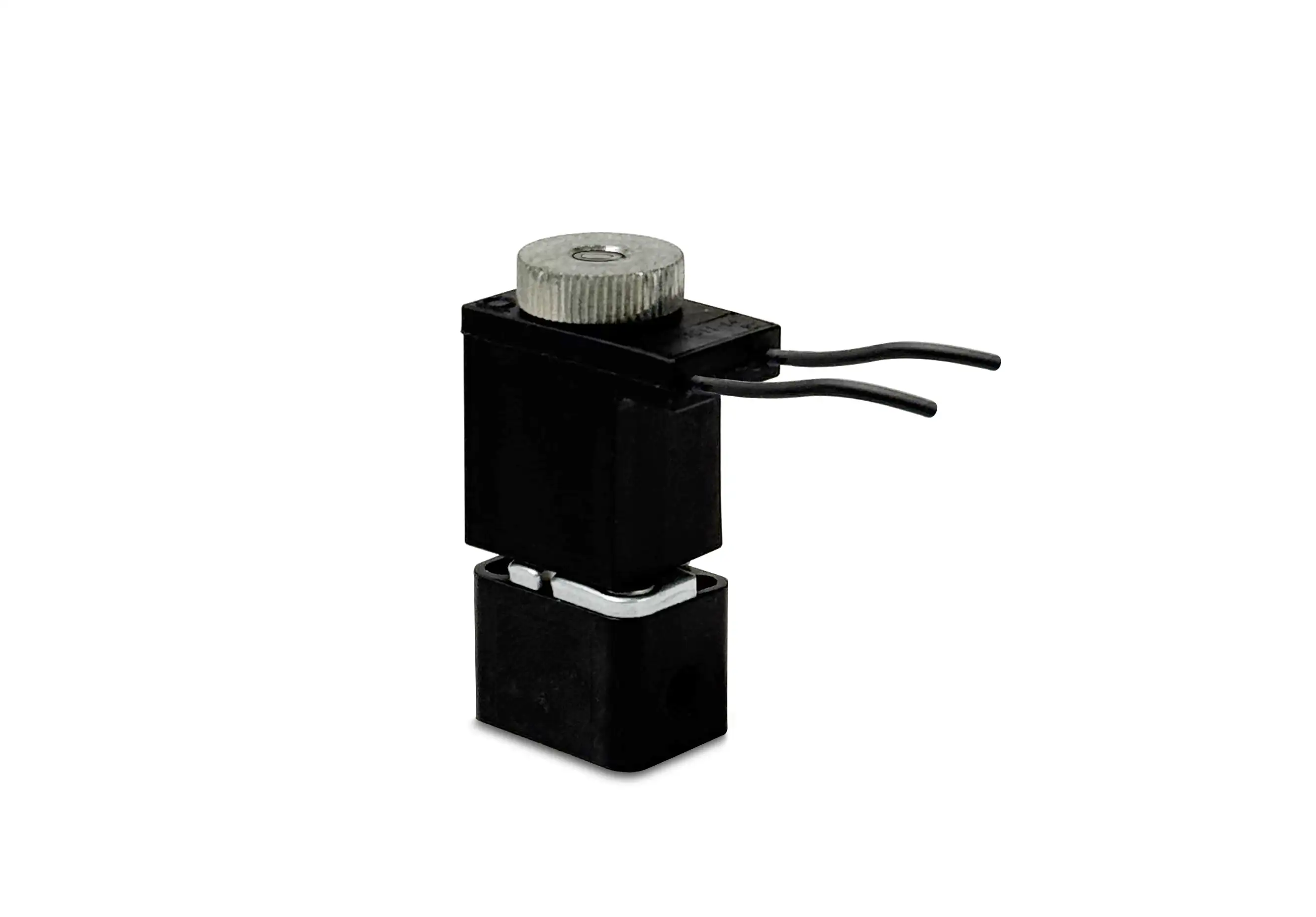

Series L58 Model L582
Very Low Watt
2-Way Normally Closed Valve
Easily interfaced with circuit boards and miniaturized components. The versatility is for connecting electronic signals to pneumatic outputs. The small size is ideal for stand alone(with #10-32 ports) or multiple valves mounted on one manifold. Air and other common gasses – filtration recommended – 30 microns or less.
• May be used to “pilot” larger valves.
• Ideal for micro electronic production equipment.
• Great for medical and chemical analytical applications.
• Can operate directly from most programmable controllers.
• High quality engineering.
- SPECIFICATIONS
- 2-D & 3-D CAD DRAWING

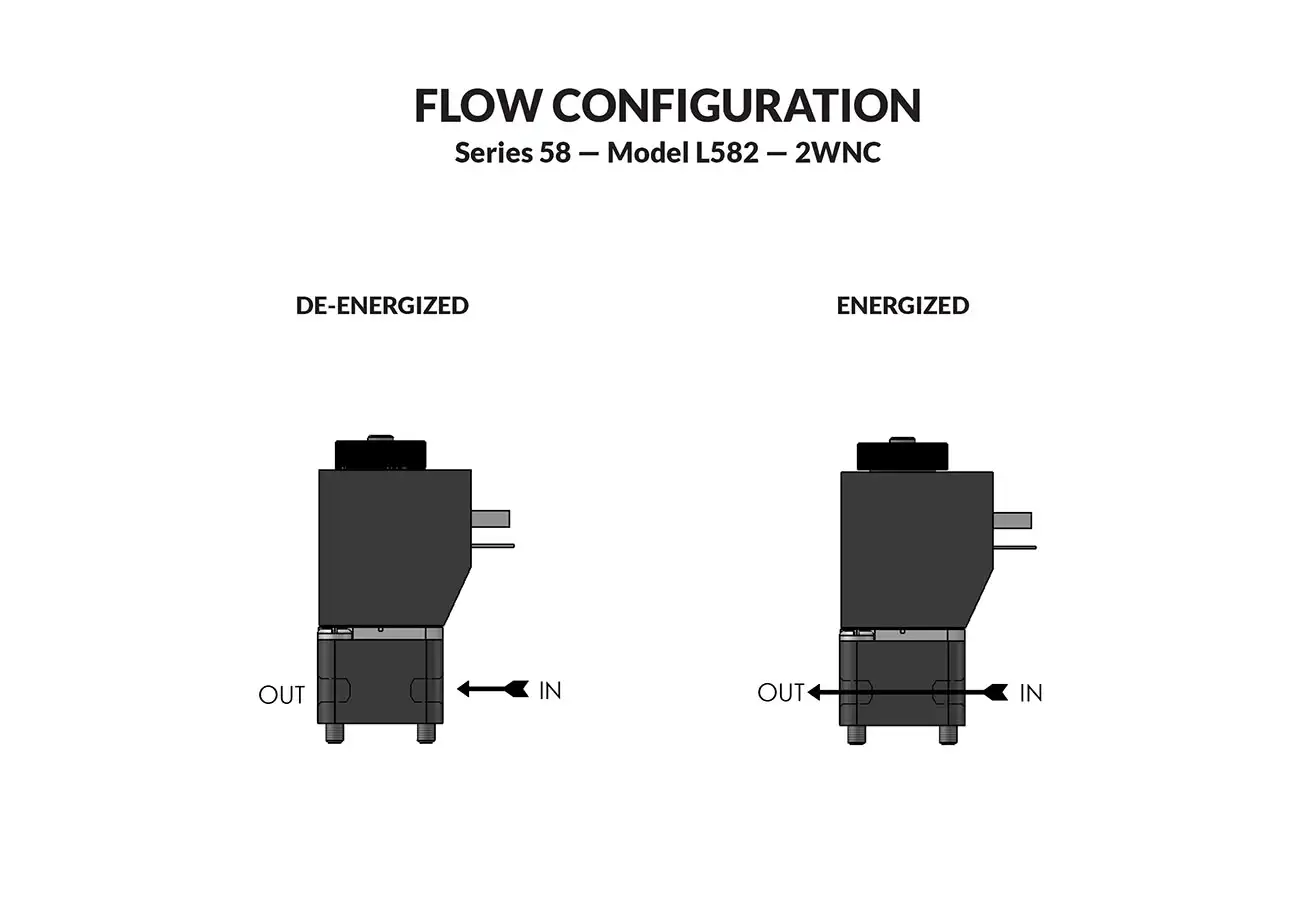

- FLOW CHART
| MAX. OPER. PRESS. DIFF. |
ORIFICE SIZE | CV FACTOR | VALVE NUMBER | |||
| DC | NC | NC | #10-32 PORTS | MANIFOLD MNT | ||
 |
||||||
| 150 | 0.6 mm | .010 | L582A19DG | L582A15DG | ||
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (L582A19DG-12/DC) REPAIR PACK (KL582A19-DC)
OPERATING CONDITIONS
Media: Air and other common gasses – filtration recommended – 30 microns or less.
Valve Temperature Range: Standard Valves – 5°F (-15°C) to 122°F (50°C) ambient and media. Note Do not allow water to freeze when using plastic body.
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 1500 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 3.0 to 72V DC
Nominal Power: DC — 0.9 Watts
Coil Construction: Molded Class A with leadwires (Std.), Micro DIN (Opt.)
Typical Response Time on Air: DC – 9 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
Body: Polyester Plastic (Std.), Round Brass or Stainless Steel (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: #10-32 and Manifold Mount
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 0.13 lbs
Repair Packs: See table above.
Options: Round Stainless Steel or Brass Body, Male Stud Mount, Manual Override, M5 Ports*
* Consult representative or factory for options and specifications.
