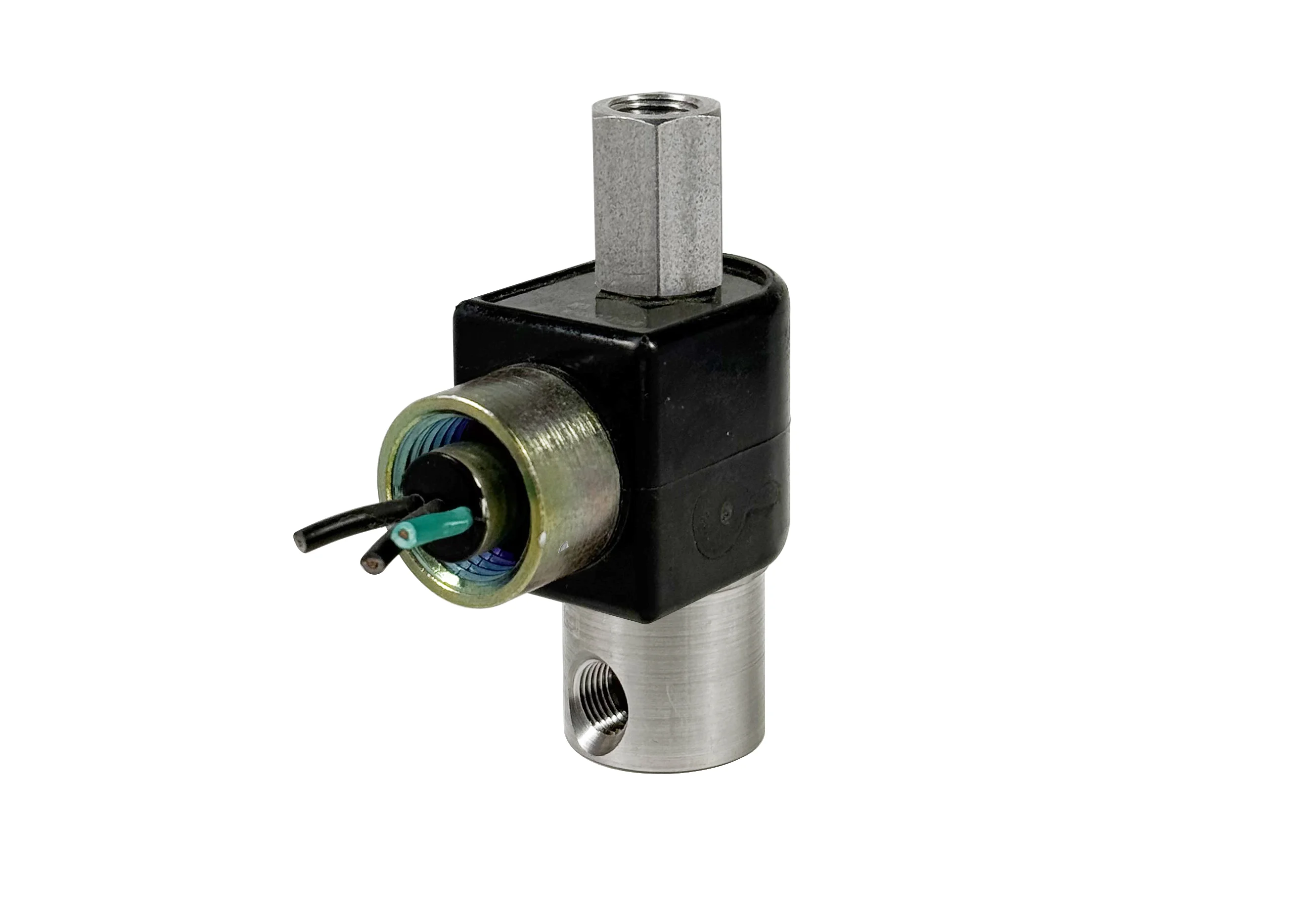

Series 50 SLW Model SLW51

Encapsulated Low Watt
2-Way Normally Open Valve

General purpose or safety valves for pneumatic and hydraulic applications. The versatility of these valves is increased to include the handling of hot air, hot water, refrigerants and many other media, by the use of different seals. Air, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials.

• General purpose valve with reduced power consumption.
• Increased versatility.
• For pneumatic and hydraulic application.
• NEMA 4 rating is standard with encapsulated coil.
• High quality engineering.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

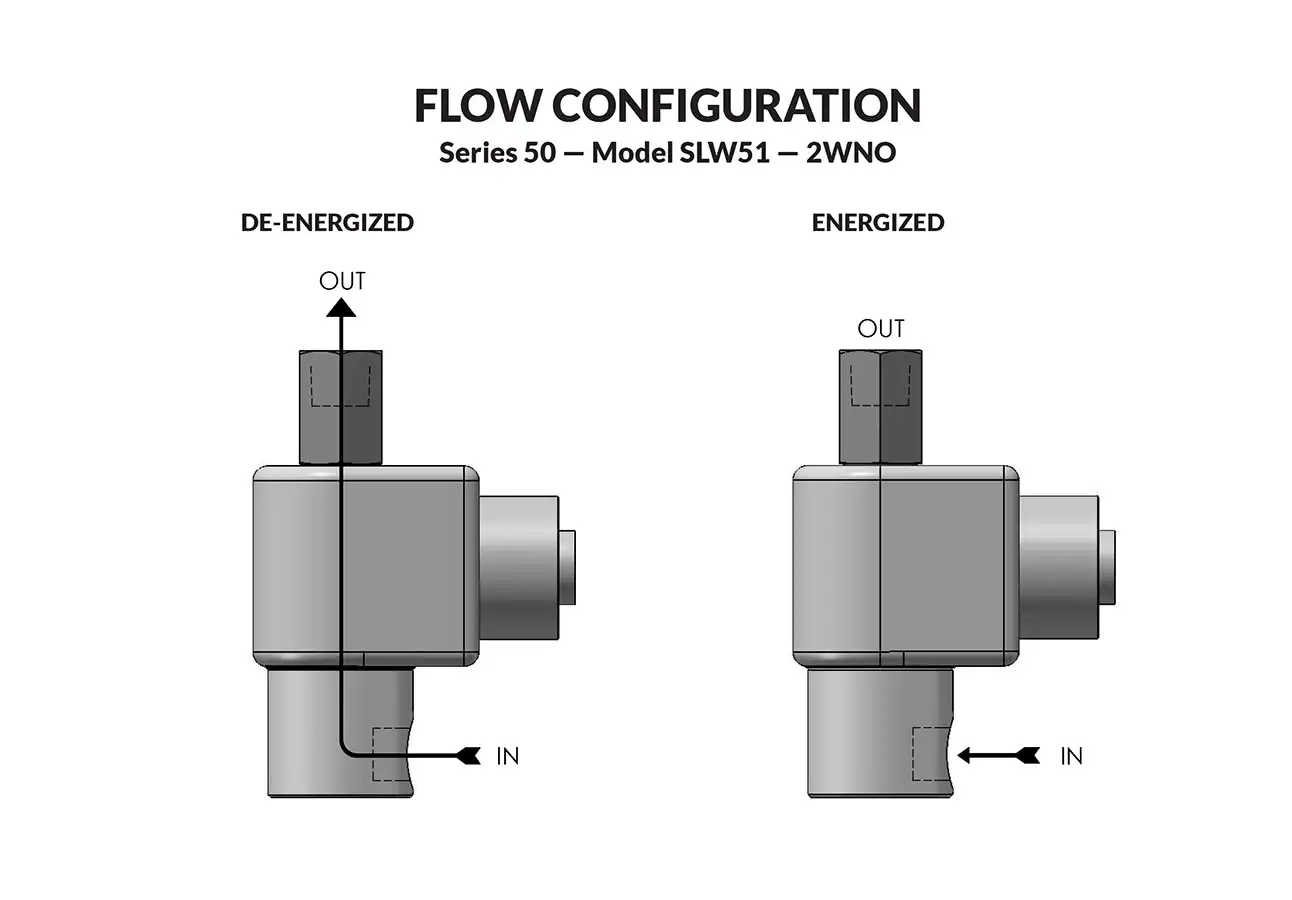

  • FLOW CHART
  • NOMENCLATURE
VALVE SPECIFICATIONS

MAX. OPER.
PRESS. DIFF.
GAS LIQUID ORIFICE SIZE
AC DC AC DC NO VALVE NUMBER
300 200 300 200 1/32 SLW51G8XCCP
270 120 120 65 3/64 SLW51H8XCCP+
135 50 40 30 1/16 SLW51J8XCCP+
70 35 30 20 5/64 SLW51V8XCCP+
55 30 25 15 3/32 SLW51K8XCCP+

+ Add Suffix G or L to Valve Number to signify Gas or Liquid Service

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (SLW51J8XCCPG-120/60) REPAIR PACK (KSLW51J-AC)

OPERATING CONDITIONS

Media: Air, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 140°F (60°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 12 to 370V AC 60 HZ. and 10.5 to 345V 50 HZ. — 3.5 to 120V DC
Nominal Power: AC — 1.8 Watts DC — 1.8 Watts
Coil Construction: Encapsulated Class F Coil with third wire ground
Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.) or Brass (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: 1/8″ NPT (Std.)
Housing: Encapsulated with 1/2″ NPT conduit
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 0.60 lbs
Repair Packs: See table above.
Options: Alternate Port Locations, Metering, and Alternate Elastomers*

* Consult representative or factory for options and specifications.

Series 50 SLW Encapsulated Low Watt Valves

A A1 B C D D1 E F G H
inches 2.48 3.78 .30 2.10 1.20 1.00 .59 .41 #8-32 x .23 1/8 NPT
mm 63.0 96.0 7.6 53.3 30.5 25.4 15.0 10.4 5.8 DP

Numbering System Chart

Series Designation

Type

Orifice*

Port Size And Body Material

Body Port and Function Options

Housing Options

Coil Options

Voltage

Frequency

NOTE: “G” Marked prior to the valve number denotes Gang Feeding.
“E” Marked prior to the valve number denotes Explosion Proof.
“H” Marked prior to the valve number denotes High Pressure Valve. “F” Marked prior to the valve number denotes Filter Valve.
Where numerous options are specified, valves will be marked with 2 numbers to identify valve series and type, followed by specifically assigned numbers.
* For 3 way valves this number will consist of two suffix letters. The first indicates the inlet orifice & the second the exhaust orifice. ** For valves with a combination of two standard body options, this suffix will consist of two letters.
**** In Series 70 -1/16 - 5/16 Orifice.
† For series H high pressure valves only.
†† 2 in Series 15 is 1/8 NPT Aluminum only.
††† Letter K followed by “M” in 7th digit column indicates molded spade terminal coil & yoke.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
