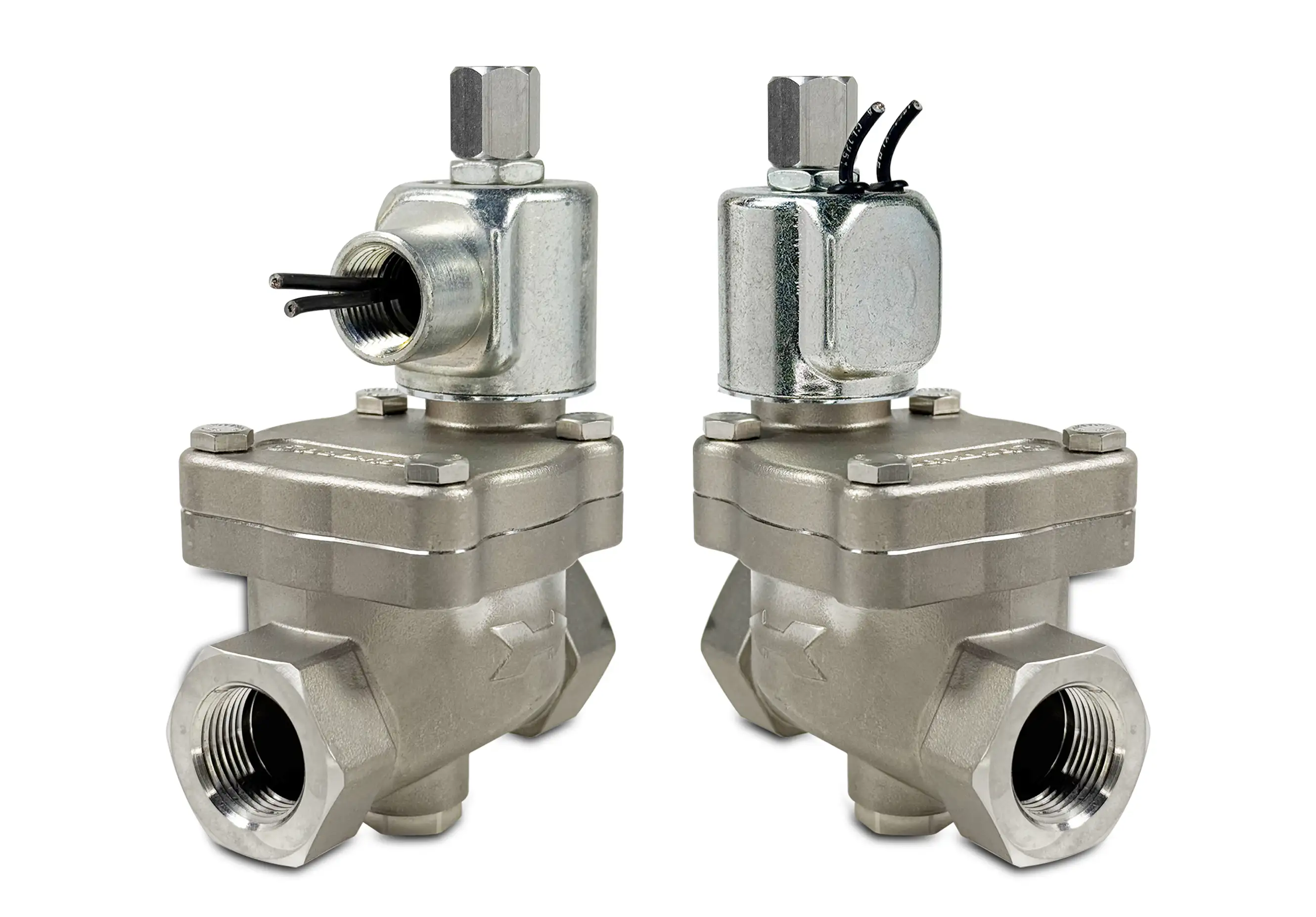

Peter Paul Excellence

Series 80 Model 818

Large Orifice, Internally Piloted
2-Way Normally Open Valve

Peter Paul offers a line of large orifice solenoid valves to address process industry requirements for high flow rate or quick dump and fill capacity. These AC or DC powered valves are also suited for low pressure gas and liquid applications. Port sizes for the two way normally open version range from 1/2” to 3” NPT, with pressure ratings from 3 to 100 PSI.

• Large orifice sizes for high flow applications.
• Body is made of brass forgings or 316 stainless steel.
• Operate on differential pressure — Internal Pilot.
• NPT threaded connections.
• Same coils and housings as our popular 20 Series.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

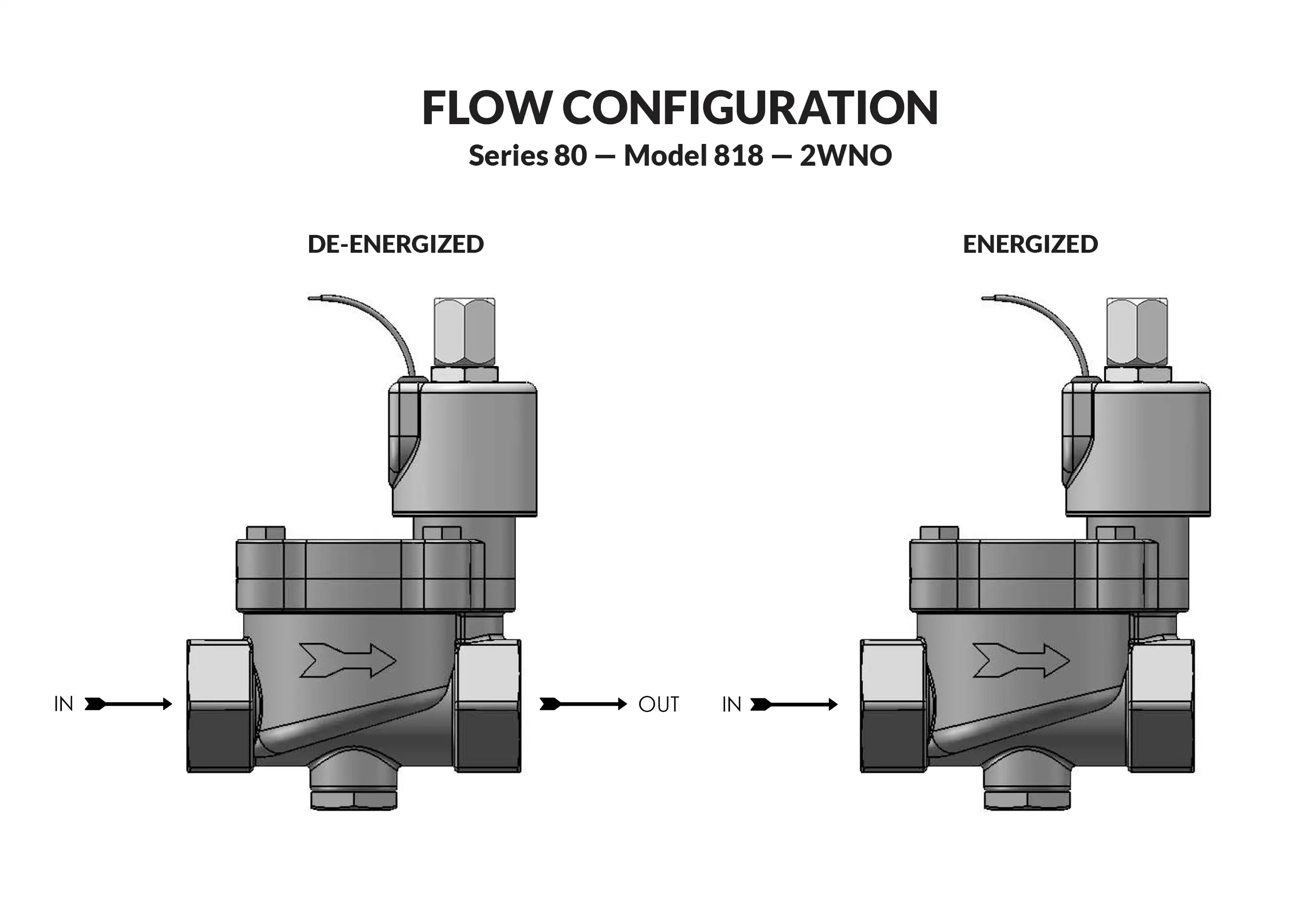

  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

MAX. OPER.
PRESS. DIFF.
MIN. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR     VALVE NUMBER
GROMMET HOUSING
CONDUIT HOUSING
AC DC
100 100 3 1/2 4.0     818B12DGV 818B12DCV
100 100 3 3/4 5.0     818Y19DGV 818Y19DCV
100 100 3 1 13.0     818D13DGV 818D13DCV
100 100 3 1 1/2 29.0     818E14DGV 818E13DCV
100 100 3 2 46.0     818F13DGV 818F13DCV
100 100 3 3 98.0     818W13DGV 818W13DCV

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (818B12DGV 120/60) REPAIR PACK (K818BD-AC)

OPERATING CONDITIONS

Media: Air, water, and oil. (Series 80 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Minimum Operating Pressure Differentials: 3 PSI
Leakage: Bubble tight

ELECTRICAL CHARACTERISTICS

Coil Voltage: 6 to 825V AC 60 HZ. and 5 to 720V AC 50 HZ. — 1.8 to 265V DC
Nominal Power: AC — 7.7 Watts DC — 9.5 Watts
Coil Construction: Non-molded Class A (Std.), Molded and Potted Class F or Class H (Opt.)
Operating Speed: Up to 100 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Brass (Std.) — Stainless Steel (Opt.)
Internal Components: Stainless Steel (Std.)
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Housing: Grommet and 1/2″ NPT conduit — many options available.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Repair Packs: See table above.
Options: Alternate Elastomers, Spade Terminal Coil, European Style DIN, and Solid-State Timer for use with DIN Coil*

* Consult representative or factory for options and specifications.

Series 80 Internal Pilot Valves
<

  A B C D D1 D2 E F F1 F2 F3 F4

inches 3/4″ NPT 2.05 1.02 3.91 4.28 3.80 2.80 2.88 2.99 2.91 2.97 2.95
mm 52.1 25.9 99.3 108.7 96.5 71.1 73.2 75.9 73.9 75.4 74.9
inches 1″ NPT 2.64 1.18 4.06 4.43 3.95 3.78 3.87 3.98 3.90 3.96 3.94
mm 67.1 30.0 103.1 112.5 100.3 96.0 98.3 101.1 99.1 100.6 100.1
inches 1-1/2″ NPT 3.19 1.42 4.50 4.87 4.39 4.49 4.58 4.69 4.61 4.67 4.65
mm 81.0 36.1 114.3 123.7 111.5 114.0 116.3 119.1 117.1 118.6 118.1
inches 2″ NPT 3.82 1.73 4.73 5.10 4.62 5.04 5.13 5.24 5.16 5.22 5.20
mm 97.0 43.9 120.1 129.5 117.3 128.0 130.3 133.1 131.1 132.6 132.1
inches 2-1/2″ NPT 6.42 3.50 8.24 8.61 7.39 8.82 8.91 9.02 8.94 9.00 8.98
mm 163.1 88.9 209.3 218.7 187.7 224.0 226.3 229.1 227.1 228.6 228.1

  G G1 G2 G3 G4 H H1 H2 H3 H4 H5 H6

inches .82 .92 .85 .91 .89 1.67 2.42 2.14 1.61 2.60 2.58 1.80
mm 20.8 23.4 21.6 23.1 22.6 42.4 61.5 54.4 40.9 66.0 65.5 45.7
inches .82 .92 .85 .91 .89 1.67 2.42 2.14 1.61 2.60 2.58 1.80
mm 20.8 23.4 21.6 23.1 22.6 42.4 61.5 54.4 40.9 66.0 65.5 45.7
inches .82 .92 .85 .91 .89 1.67 2.42 2.14 1.61 2.60 2.58 1.80
mm 20.8 23.4 21.6 23.1 22.6 42.4 61.5 54.4 40.9 66.0 65.5 45.7
inches .82 .92 .85 .91 .89 1.67 2.42 2.14 1.61 2.60 2.58 1.80
mm 20.8 23.4 21.6 23.1 22.6 42.4 61.5 54.4 40.9 66.0 65.5 45.7
inches .82 .92 .85 .91 .89 1.67 2.42 2.14 1.61 2.60 2.58 1.80
mm 20.8 23.4 21.6 23.1 22.6 42.4 61.5 54.4 40.9 66.0 65.5 45.7


Numbering System Chart

Series Designation

Type

Orifice*

Port Size And Body Material

Body Port and Function Options

Housing Options

Coil Options

Voltage

Frequency

NOTE: “G” Marked prior to the valve number denotes Gang Feeding.
“E” Marked prior to the valve number denotes Explosion Proof.
“H” Marked prior to the valve number denotes High Pressure Valve. “F” Marked prior to the valve number denotes Filter Valve.
Where numerous options are specified, valves will be marked with 2 numbers to identify valve series and type, followed by specifically assigned numbers.
* For 3 way valves this number will consist of two suffix letters. The first indicates the inlet orifice & the second the exhaust orifice. ** For valves with a combination of two standard body options, this suffix will consist of two letters.
**** In Series 70 -1/16 - 5/16 Orifice.
† For series H high pressure valves only.
†† 2 in Series 15 is 1/8 NPT Aluminum only.
††† Letter K followed by “M” in 7th digit column indicates molded spade terminal coil & yoke.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
