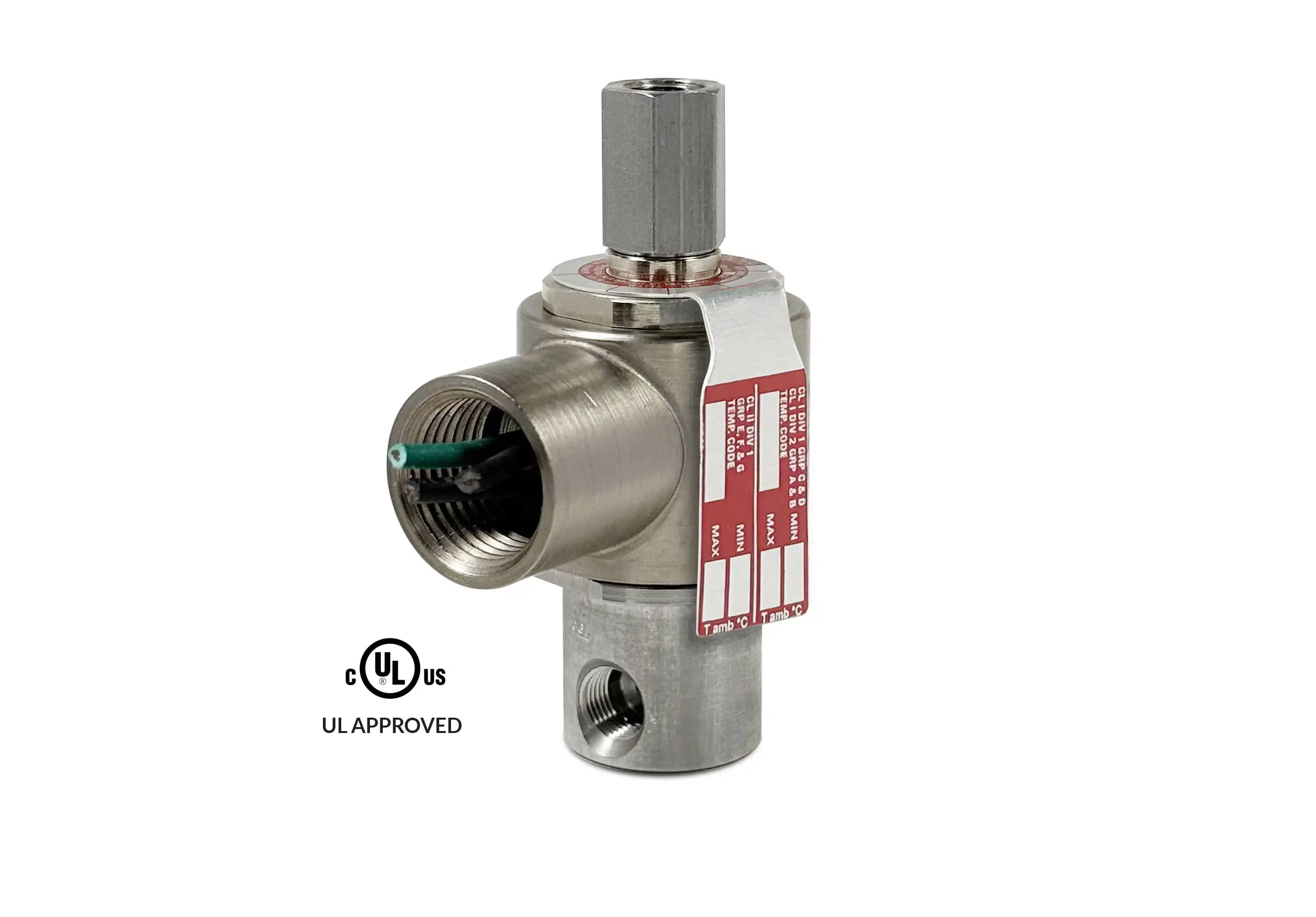

Series E50 Model E51
Hazardous Location
2-Way Normally Open Valve
Peter Paul explosion proof valves are used where fire or explosion hazards exist due to the presence of flammable gases or vapors, flammable liquids, combustible dust, or easily ignitable fibers. Hazardous Location valves are recommended, or in some cases compulsory, where a high level of protection from explosion is required.
• Miniature Hazardous Location valve.
• Flame-Proof construction.
• High quality engineering.
- SPECIFICATIONS
- 2-D & 3-D CAD DRAWING

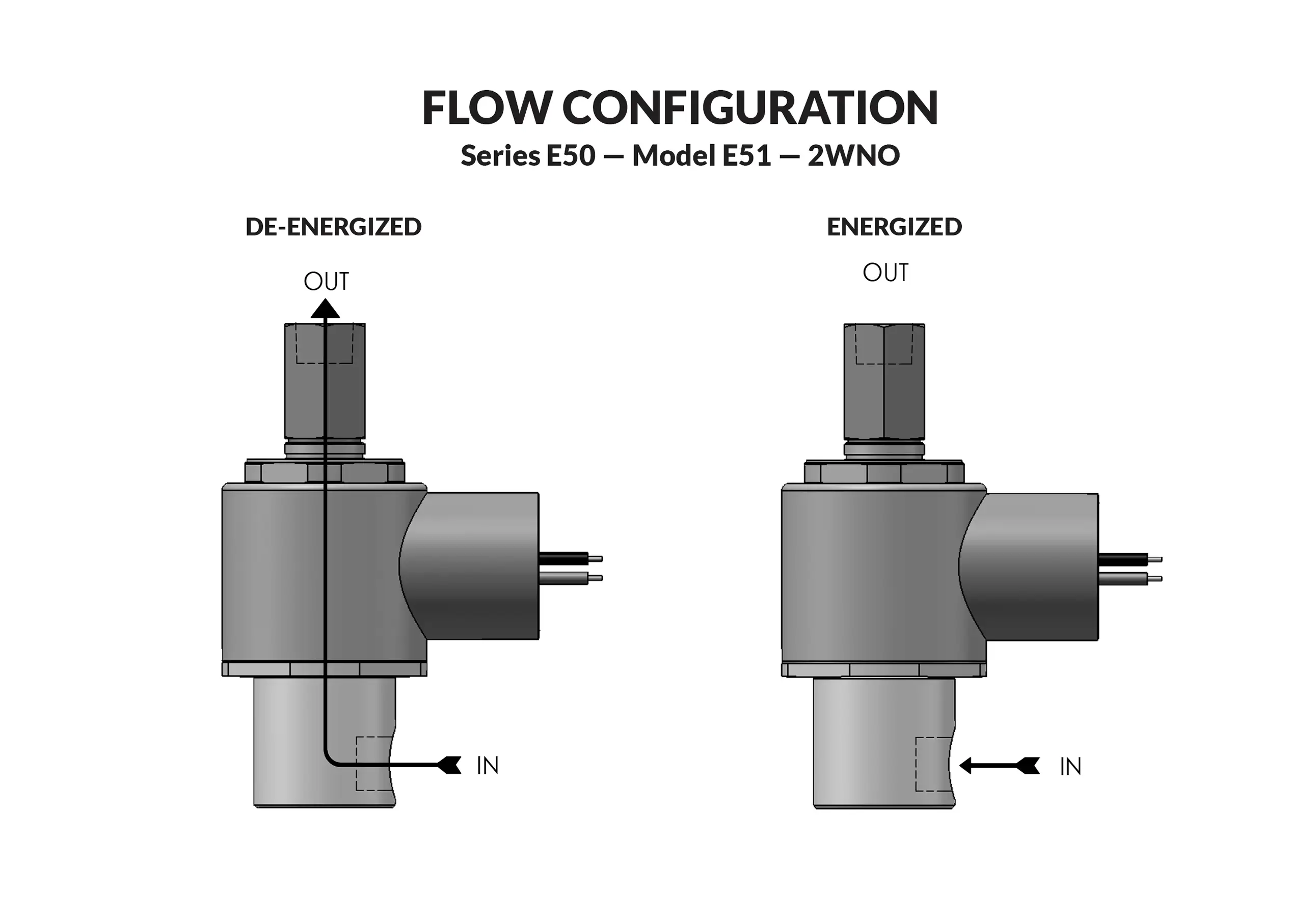

- FLOW CHART
- NOMENCLATURE
| MAX. OPER. PRESS. DIFF. |
ORIFICE SIZE | CV FACTOR | VALVE NUMBER | |||||
| AC | DC | |||||||
 |
||||||||
| 400 | 200 | 1/32 | .020 | E51G8XCCM | ||||
| 200 | 100 | 3/64 | .048 | E51H8XCCM | ||||
| 125 | 60 | 1/16 | .075 | E51J8XCCM | ||||
| 40 | 40 | 3/32 | .150 | E51K8XCCM | ||||
WHEN ORDERING VALVES OR REPAIR KITS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (E51H8XCCM-120/60) REPAIR KIT (5KE51H-AC)
OPERATING CONDITIONS
Media: Air, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 6.0 to 575V AC 60 HZ. and 5.4 to 515V AC 50 HZ. — 3.0 to 300V DC.
Nominal Power: AC — 5.6 Watts DC — 7.2 Watts
Coil Construction: Molded Class F with third wire ground (Std.), Class H or Potted (Opt.)
Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
Body: Stainless Steel (Std.) or Brass (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: 1/8″ NPT (Std.)
Housing: Flame-Proof construction with 1/2″ NPT conduit
Listings: Valves are UL listed and CSA certified for Hazardous Locations — Class I, Div 1, Group C and D – Class II, Div 1, Groups E, F, and G; Div 2, Groups C, D, E, F, and G
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 0.65 lbs
Repair Kits: See table above.
Options: Alternate Port Locations, Metering, Alternate Elastomers, All Stainless Steel Construction*
* Consult representative or factory for options and specifications.
Series E50 Hazardous Location Valves
| A | A1 | A2 | A3 | A4 | A5 | B | C | C1 | C2 | C3 | C4 | |
|
||||||||||||
| inches | 2.39 | 2.95 | 2.62 | 3.18 | 2.48 | 3.27 | .30 | 1.22 | 1.89 | 1.67 | 1.07 | 2.23 |
| mm | 60.7 | 74.9 | 66.6 | 80.8 | 63.0 | 83.1 | 7.6 | 31.0 | 47.9 | 42.4 | 27.1 | 56.7 |
| D | D1 | D2 | E | F | G | H | I | I1 | J | J1 | K | |
|
||||||||||||
| inches | 1.05 | 1.00 | 1.44 | .59 | .40 | #8-32 X .23 | 1/8 NPT | 1.50 | 1.64 | .61 | .54 | 2.21 |
| mm | 26.7 | 25.4 | 36.5 | 15.0 | 10.1 | 5.8 DP | 1/8 NPT | 38.1 | 41.7 | 15.5 | 13.7 | 56.1 |
