Peter Paul Excellence

Series 20 Model E25

Hazardous Location
3-Way Directional Control Valve

Peter Paul explosion proof valves are used where fire or explosion hazards exist due to the presence of flammable gases or vapors, flammable liquids, combustible dust, or easily ignitable fibers. Hazardous Location valves are recommended, or in some cases compulsory, where a high level of protection from explosion is required.

• Explosion Proof
• The flagship valve initially created for fluid power industry.
• Heavy duty and made of stainless steel.
• A real workhorse with proven performance.
• It has the greatest amount of options available of all the valves.
• Wide range of orifice sizes from 1/32″ to 1/8″.

  • SPECIFICATIONS

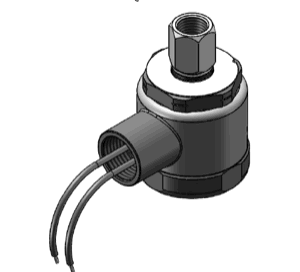

  • 2-D & 3-D CAD DRAWING

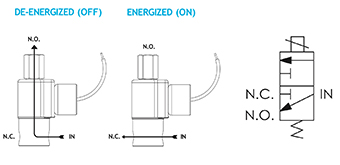

  • FLOW CHART
  • NOMENCLATURE
VALVE SPECIFICATIONS

+ MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR VALVE NUMBER
AC DC NC NO NC NO 1/8 NPT PORTS 1/4 NPT PORTS
500 500 1/32 1/32 .024 .024 E25GG7XCCM E25GG9ZCCM
235 (400) 235 (300) 3/64 3/64 .052 .052 E25HH7XCCM E25HH9ZCCM
200 (225) 200 (200) 1/16 3/64 .095 .052 E25JH7XCCM E25JH9ZCCM
150 (225) 150 (200) 1/16 1/16 .095 .095 E25JJ7XCCM E25JJ9ZCCM
100 (150) 100 (125) 3/32 3/32 .156 .156 E25KK7XCCM E25KK9ZCCM
100 (125) 100 1/8 3/32 .284 .156 E25NK7XCCM E25NK9ZCCM
35 (40) 35 (40) 1/8 1/8 .284 .227 E25NN7XCCM ^ E25NN9ZCCM ^

^ VALVES WITH 1/8 N.O. ORIFICE ARE NOT UL OR CSA LISTED

WHEN ORDERING VALVES OR REPAIR KITS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (E25NK9ZCCM-120/60) REPAIR KIT (2KE25NK-AC)

+ Ratings in brackets are optional extended ratings; consult factory.

OPERATING CONDITIONS

Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam gasoline, and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 6 to 825V AC 60 HZ. and 5 to 720V AC 50 HZ. — 1.8 to 265V DC
Nominal Power: AC — 7.3 Watts DC — 9.5 Watts
Coil Construction: Molded Class F with third wire ground (Std.), Class H or Potted (Opt.)
Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.) or Brass (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: See table above.
Housing: Flame-Proof construction with 1/2″ NPT conduit
Listings: Valves are UL listed and certified for Hazard Locations — Class I, Div 1, Group C and D – Class II, Div 1, Group E, F, and G; Div 2, Groups C, D, E, F, and G.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 1.50 lbs
Repair Kits: See table above.
Options: Alternate Port Locations, Metering, Manual Override, Alternate Elastomers*

* Consult representative or factory for options and specifications.

Series 20 Hazardous Location Valves

A A1 A2 A3 A4 A5 B C C1 C2 C3 C4
inches 2.75 3.48 2.92 3.65 3.22 3.95 .34 1.67 2.39 2.15 1.65 2.63
mm 69.9 88.4 74.1 92.6 81.8 100.3 8.6 42.5 60.7 54.7 42.0 66.8
D D1 D2 E F G H I I1 J J1 K
inches 1.69 1.61 1.88 .88 .88 #10-32 X .31 1/8 OR 1/4 NPT 1.88 2.13 .92 .85 2.52
mm 42.9 41.0 47.7 22.4 22.4 7.9 DP 1/8 OR 1/4 NPT 47.8 54.1 23.4 21.5 64.0

Numbering System Chart

Series Designation

Type

Orifice*

Port Size And Body Material

Body Port and Function Options

Housing Options

Coil Options

Voltage

Frequency

NOTE: “G” Marked prior to the valve number denotes Gang Feeding.
“E” Marked prior to the valve number denotes Explosion Proof.
“H” Marked prior to the valve number denotes High Pressure Valve. “F” Marked prior to the valve number denotes Filter Valve.
Where numerous options are specified, valves will be marked with 2 numbers to identify valve series and type, followed by specifically assigned numbers.
* For 3 way valves this number will consist of two suffix letters. The first indicates the inlet orifice & the second the exhaust orifice. ** For valves with a combination of two standard body options, this suffix will consist of two letters.
**** In Series 70 -1/16 - 5/16 Orifice.
† For series H high pressure valves only.
†† 2 in Series 15 is 1/8 NPT Aluminum only.
††† Letter K followed by “M” in 7th digit column indicates molded spade terminal coil & yoke.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
