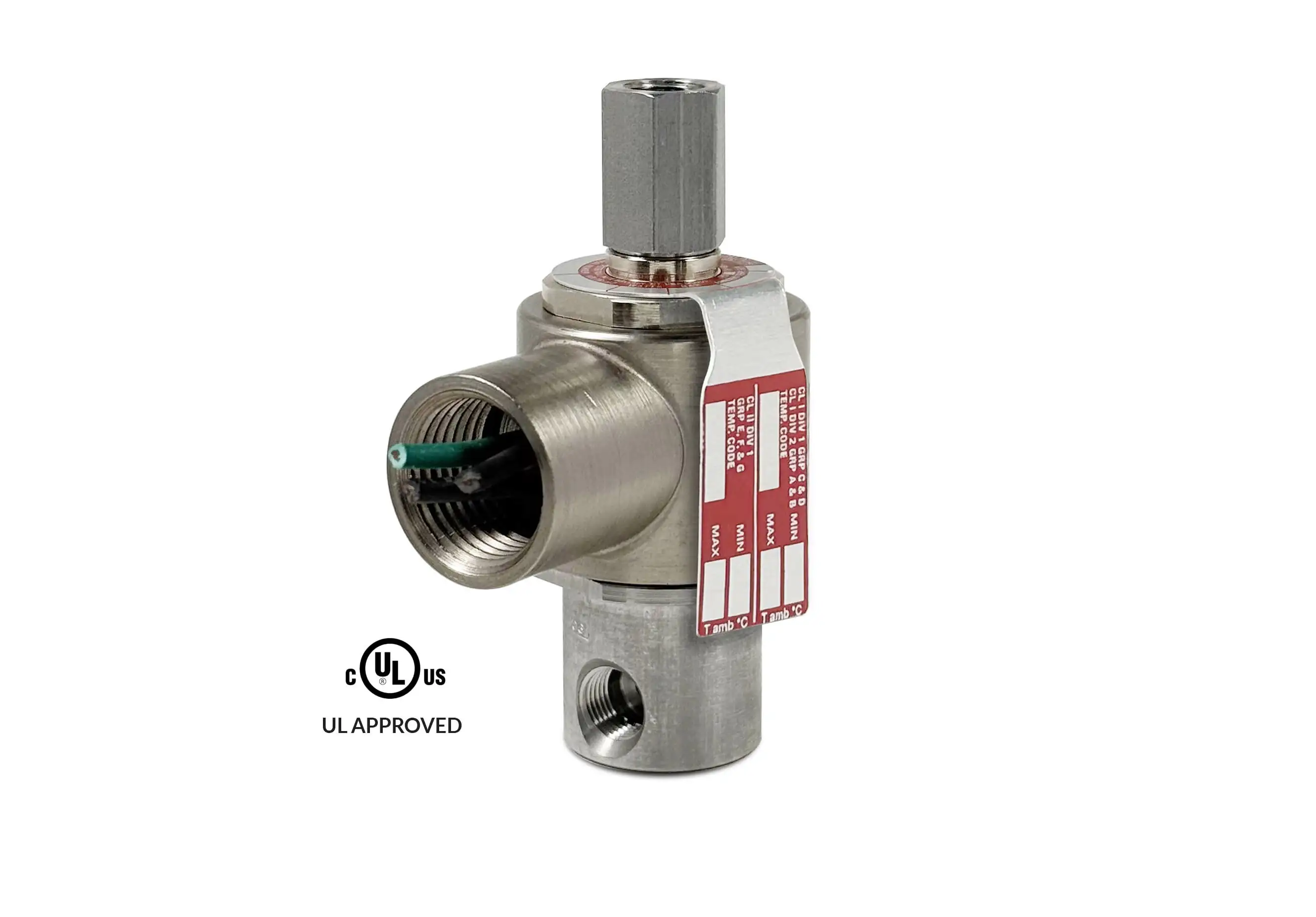

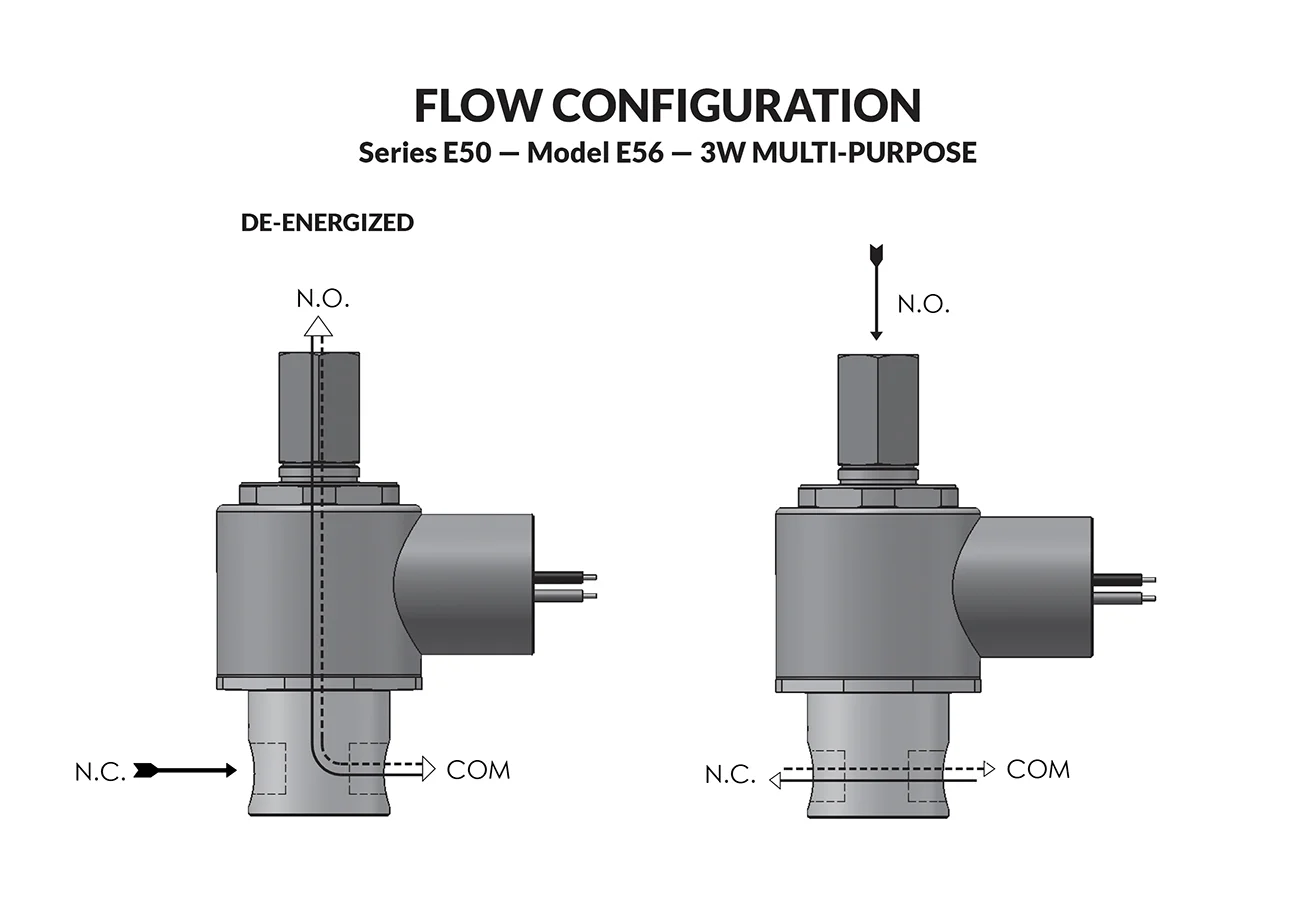

Series E50 Model E56

3-WAY MULTI-PURPOSE

PeterPaul explosion proof valves are used where fire or explosion hazards exist due to the presence of flammable gases or vapors, flammable liquids, combustible dust, or easily ignitable fibers. Hazardous Location valves are recommended, or in some cases compulsory, where a high level of protection from explosion is required.

Miniature Hazardous Location valve.
Flame-Proof construction.
High quality engineering.

Tabs

Specifications

MAX. OPER. PRESS. DIFF.		ORIFICE SIZE		CV FACTOR		VALVE NUMBER
AC	DC	N.C.	N.O.	N.C.	N.O.


125	125	1/32	1/32	.022	.020	E56GG8XCCM-∆
100	100	3/64	3/64	.055	.048	E56HH8XCCM-∆
65	50	1/16	1/16	.075	.075	E56JJ8XCCM-∆
25	25	3/32	3/32	.156	.156	E56KK8XCCM-∆

Ordering Information:

Seal Material: Replace ∆ with desired code - Blank = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (E56KK8XCCM 120/60) repair pack (5KE56KK AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (OE56KKDDCCM 120/60)

Operating Conditions:

Media:

Air, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*

Valve Temperature Range:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

5000 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.

Nominal Power:

AC — 5.6 Watts DC — 7.2 Watts

Coil Construction:

Molded Class F with third wire ground (Std.), Class H or Potted (Opt.)

Typical Response Time on Air:

4 - 16 Milliseconds

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Stainless Steel (Std.)

Internal Components:

Stainless Steel. Copper – AC Only.

Elastomers:

Nitrile (Buna) (Std.). Many other elastomers available.*

Orifice Diameter:

See table above.

Porting:

1/8" NPT (Std.)

Housing:

Flame-Proof construction with 1/2" NPT conduit

Listings:

Valves are UL listed and CSA certified for Hazardous Locations — Class I, Div 1, Group C and D - Class II, Div 1, Groups E, F, and G; Div 2, Groups A, B, C, D, E, F, and G

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

0.65 lbs

Repair Packs:

See table above.

Options:

Alternate Port Locations, Metering, Alternate Elastomers, All Stainless Steel Construction*
