Peter Paul Excellence

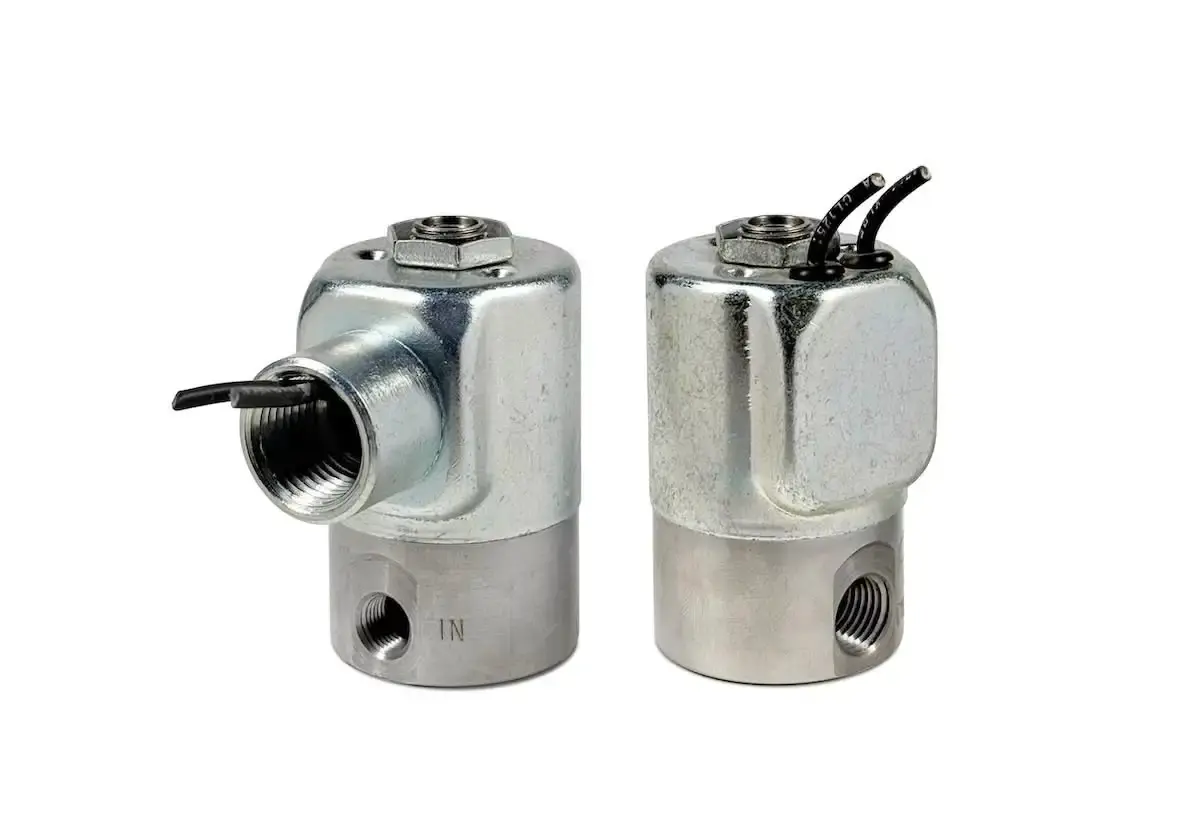

Series 20 Model 23

3-Way Normally Closed Valve (exhaust to atmosphere)

A complete line of valves with a great selection of options and exceptional proven performance. The standard in the field. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

• The flagship valve initially created for fluid power industry.
• Heavy duty and made of stainless steel.
• A real workhorse with proven performance.
• It has the greatest amount of options available of all the valves.
• Wide range of orifice sizes from 1/32″ to 5/16″.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

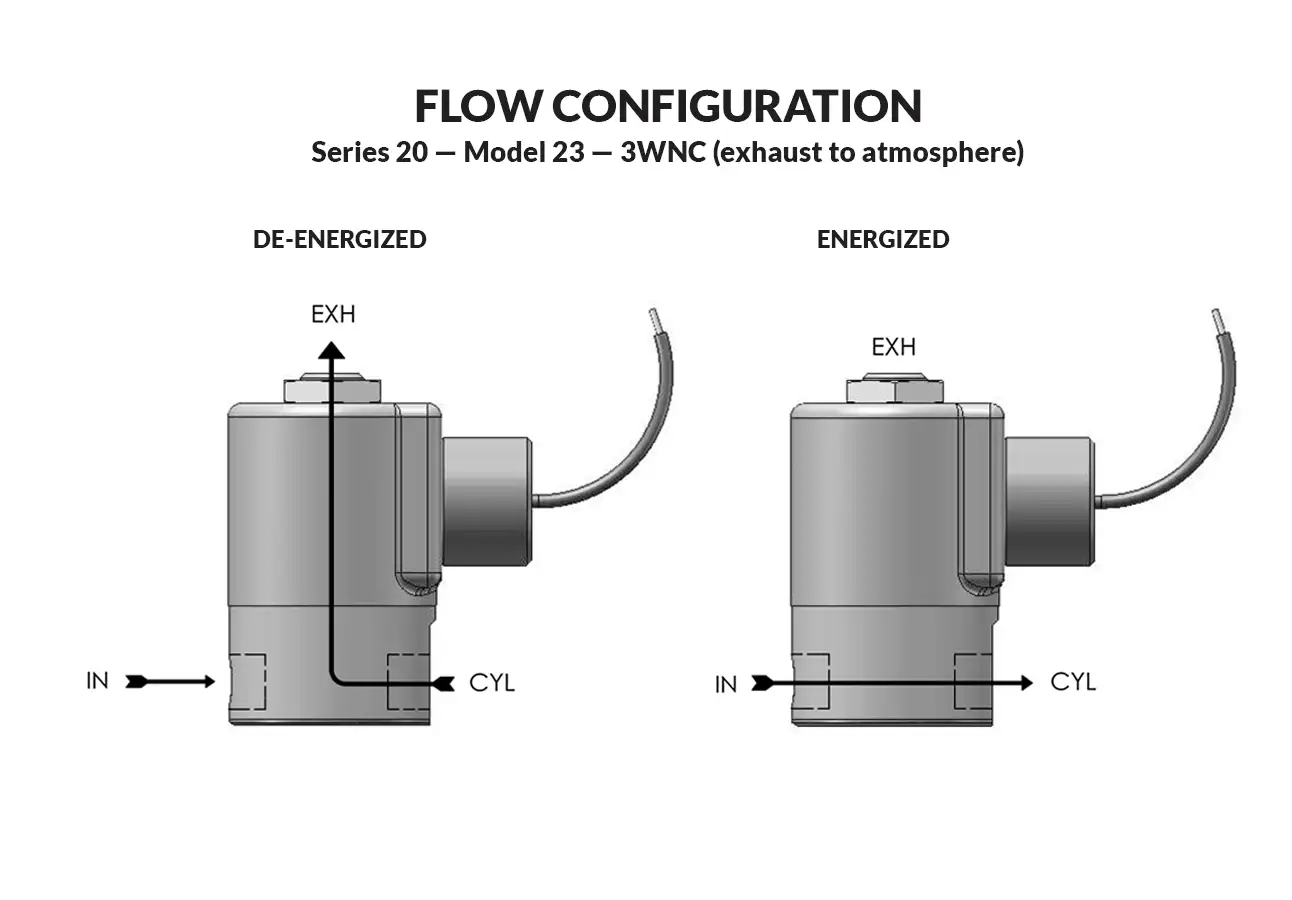

  • FLOW CHART
  • NOMENCLATURE
VALVE SPECIFICATIONS

+ MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR VALVE NUMBER
GROMMET HOUSING
CONDUIT HOUSING
AC DC NC NO NC NO 1/8 NPT PORTS 1/4 NPT PORTS 1/8 NPT PORTS 1/4 NPT PORTS
400 400 1/32 1/32 .024 .024 23GG7DGV 23GG9DGV 23GG7DCV 23GG9DCV
150 (200) 150 (200) 3/64 1/16 .052 .095 23HJ7DGV 23HJ9DGV 23HJ7DCV 23HJ9DCV
100 (135) 100 (135) 1/16 1/16 .095 .095 23JJ7DGV 23JJ9DGV 23JJ7DCV 23JJ9DCV
100 (135) 100 (135) 1/16 3/32 .095 .156 23JK7DGV 23JK9DGV 23JK7DCV 23JK9DCV
75 (100) 75 (100) 3/32 3/32 .156 .156 23KK7DGV 23KK9DGV 23KK7DCV 23KK9DCV
50 (70) 50 (70) 1/8 3/32 .284 .156 23NK7DGV 23NK9DGV 23NK7DCV 23NK9DCV
35 (40) 35 (40) 1/8 1/8 .284 .201 23NN7DGV^ 23NN9DGV ^ 23NN7DCV ^ 23NN9DCV ^
20 20 3/16 3/32 .500 .156 23PK7DGV 23PK9DGV 23PK7DCV 23PK9DCV
20 20 3/16 1/8 .500 .201 23PN7DGV^ 23PN9DGV ^ 23PN7DCV ^ 23PN9DCV ^
15 1/4 3/32 .700 .156 23RK7DGV 23RK9DGV 23RK7DCV 23RK9DCV
15 1/4 1/8 .700 .201 23RN7DGV^ 23RN9DGV ^ 23RN7DCV ^ 23RN9DCV ^

^ VALVES WITH 1/8 N.O. ORIFICE ARE UL LISTED ONLY

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (23JK9DGV-120/60) REPAIR PACK (K23JKD-AC)

+ Ratings in brackets are optional extended ratings; consult factory.

OPERATING CONDITIONS

Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 6 to 825V AC 60 HZ. and 5 to 720V AC 50 HZ. — 1.8 to 265V DC
Nominal Power: AC — 8.7 Watts DC — 9.5 Watts
Coil Construction: Non-molded Class A (Std.), Molded and Potted Class F or Class H (Opt.)
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.) or Brass (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: See table above.
Housing: Grommet and 1/2″ NPT conduit – many options available.*
Listings: Most valves are UL and CSA listed.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: Grommet Valve: 1.13 lb Conduit Valve: 1.19 lb
Repair Packs: See table above.
Options: Alternate Port Locations, Metering, Manual Override, Alternate Elastomers, Spade Terminal Coil, European Style DIN, Explosion Proof and Magnetic Latching Coil

* Consult representative or factory for options and specifications.

Series 20 General Purpose Valves

A A1 A2 A3 A4 A5 B C C1 C2 C3 C4
inches 2.75 3.48 2.92 3.65 3.22 3.95 .34 1.67 2.39 2.15 1.65 2.63
mm 69.9 88.4 74.1 92.6 81.8 100.3 8.6 42.5 60.7 54.7 42.0 66.8
D D1 D2 E F G H I I1 J J1 K
inches 1.69 1.61 1.88 .88 .88 #10-32 X .31 1/8 OR 1/4 NPT 1.88 2.13 .92 .85 2.52
mm 42.9 41.0 47.7 22.4 22.4 7.9 DP 1/8 OR 1/4 NPT 47.8 54.1 23.4 21.5 64.0

Numbering System Chart

Series Designation

Type

Orifice*

Port Size And Body Material

Body Port and Function Options

Housing Options

Coil Options

Voltage

Frequency

NOTE: “G” Marked prior to the valve number denotes Gang Feeding.
“E” Marked prior to the valve number denotes Explosion Proof.
“H” Marked prior to the valve number denotes High Pressure Valve. “F” Marked prior to the valve number denotes Filter Valve.
Where numerous options are specified, valves will be marked with 2 numbers to identify valve series and type, followed by specifically assigned numbers.
* For 3 way valves this number will consist of two suffix letters. The first indicates the inlet orifice & the second the exhaust orifice. ** For valves with a combination of two standard body options, this suffix will consist of two letters.
**** In Series 70 -1/16 - 5/16 Orifice.
† For series H high pressure valves only.
†† 2 in Series 15 is 1/8 NPT Aluminum only.
††† Letter K followed by “M” in 7th digit column indicates molded spade terminal coil & yoke.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
