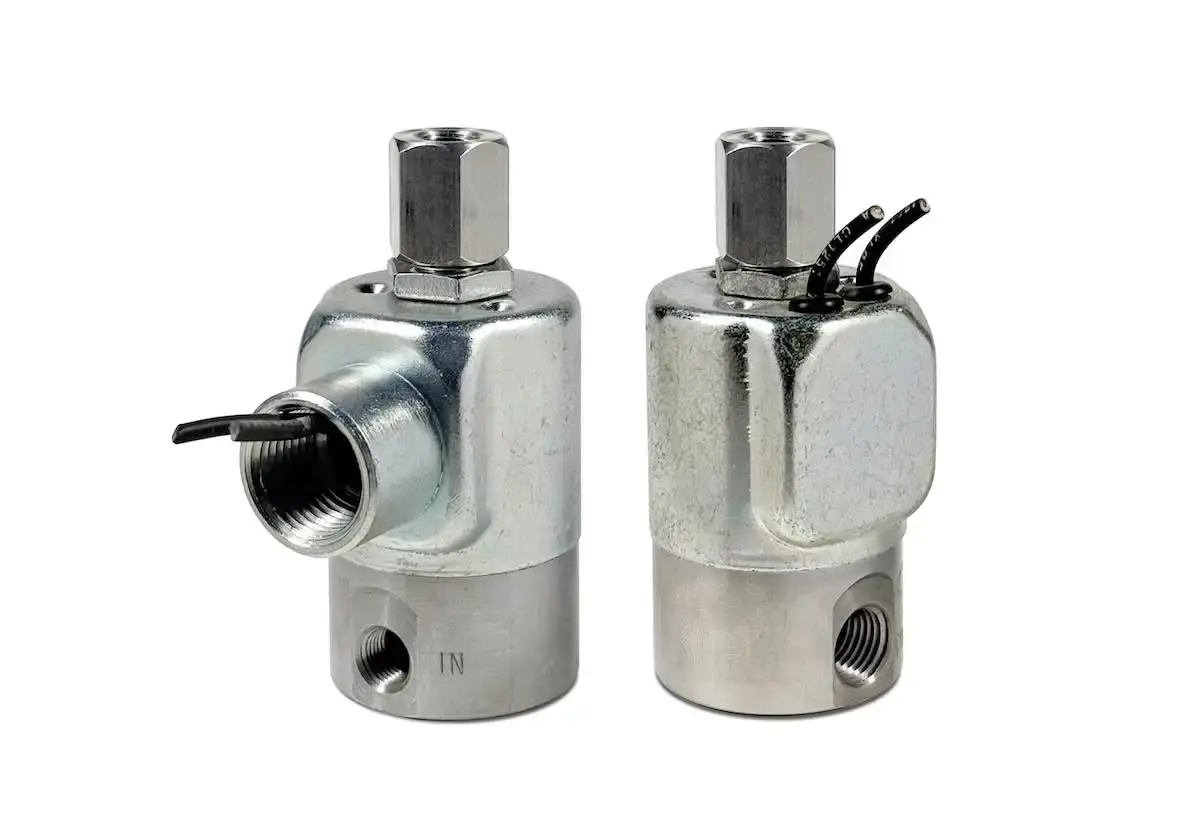

Peter Paul Excellence

Series 20 Model H24

High Pressure
3-Way Normally Open Valve

A complete line of valves with a great selection of options and exceptional proven performance. Using the heart of the highly successful model H22, Peter Paul Electronics has a valve that allows the same media control as a three way normally open valve but at much higher pressure ratings than previously available.  Pressure applied to the “IN” port must always be equal to or greater than the pressure in “CYL” port. Air and other non-corrosive gasses, water and oil.

• Made for higher pressure ratings.
• Precision stainless steel plunger.
• Kel-F pin and elastomeric sealing elements.
• Orifice guides the sealing pin for near perfect alignment.
• Simple construction…only three moving parts.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

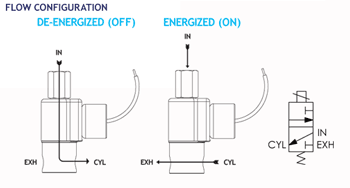

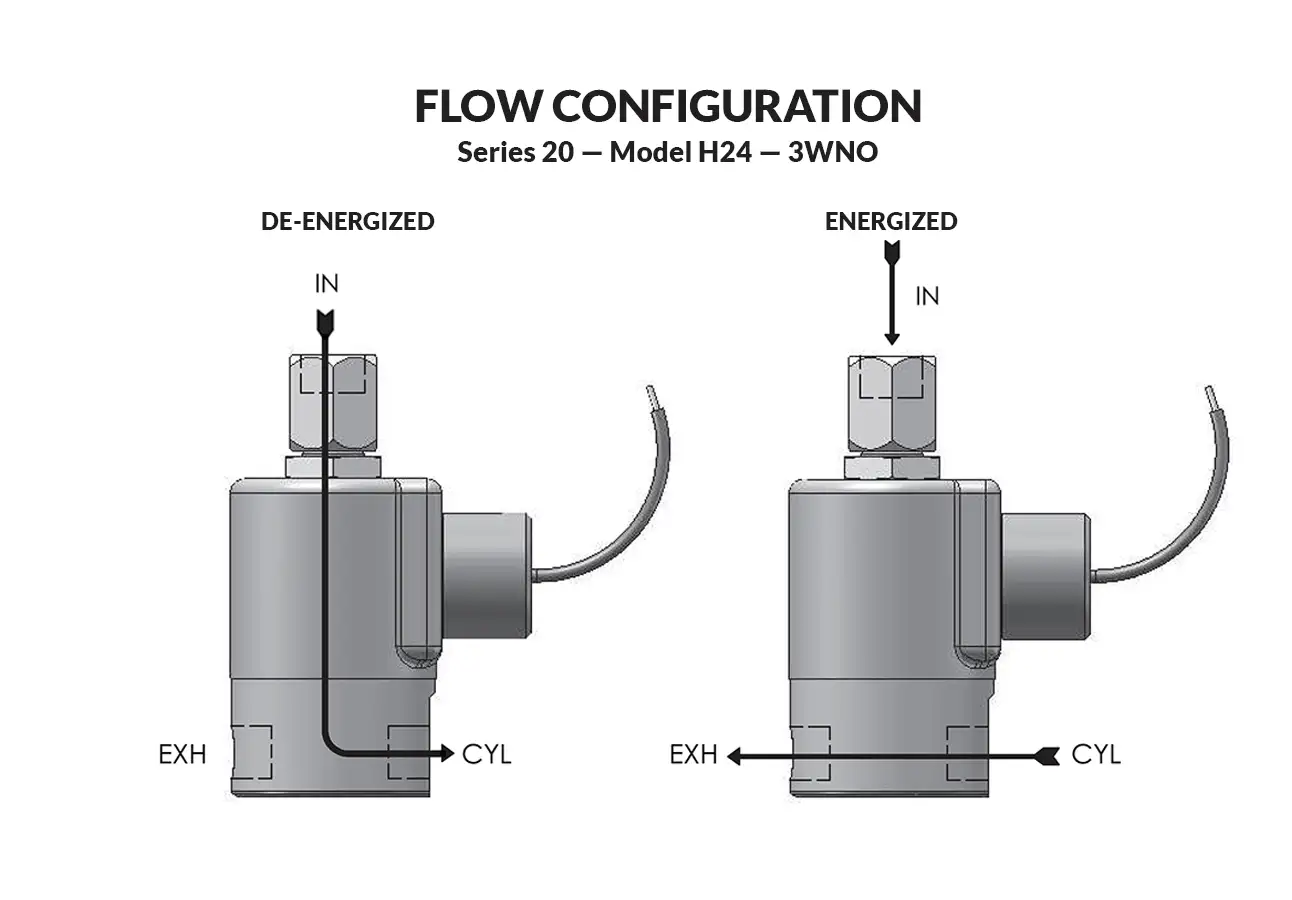

  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR     VALVE NUMBER
GROMMET HOUSING
CONDUIT HOUSING
DC NO NC NO NC     1/8 NPT PORTS 1/4 NPT PORTS 1/8 NPT PORTS 1/4 NPT PORTS
1000 0.6 mm 1/32 .010 .022     H24MG7XGV H24MG9ZGV H24MG7XCV H24MG9ZCV

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (H24MG7XGV 12/DC) REPAIR PACK (KH24MGX-DC)

OPERATING CONDITIONS

Media: Air and other non-corrosive gasses, water and oil.
Filtration: Down to 60 microns or less is recommended.
Valve Temperature Range: Standard Valves – 0°F (-18°C) to a maximum of 221°F (105°C) including coil heat rise, ambient and media temperatures. Other temperature ranges available on request — along with specific application parameter information specified.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 6000 PSI
Leakage: Bubble tight

ELECTRICAL CHARACTERISTICS

Coil Voltage: 1.8 to 265V DC
Nominal Power: DC — 9.5 Watts
Coil Construction: Non-molded Class A (Std.), Molded and Potted Class F or Class H (Opt.)
Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM with gas media
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Stainless Steel (Std.)
Internal Components: Stainless Steel
Seals: Kel-F and urethane dynamic seals. Buna static seal.  Many other options available.*
Orifice Diameter: See table above.
Porting: See table above.
Housing: Grommet and 1/2″ NPT conduit – many options available.*
Mounting: Must be mounted within 30° of vertical.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 1.25 lbs
Repair Packs: See table above.
Options: Alternate Port Locations, Alternate Elastomers, Alternate Sealing Pin Materials, Spade Terminal Coil, and European Style DIN Coil*

* Consult representative or factory for options and specifications.

Series 20 High Pressure Valves

  A A1 A2 A3 A4 A5 B C C1 C2 C3 C4

inches 2.75 3.48 2.92 3.65 3.22 3.95 .34 1.67 2.39 2.15 1.65 2.63
mm 69.9 88.4 74.1 92.6 81.8 100.3 8.6 42.5 60.7 54.7 42.0 66.8

  D D1 D2 E F G H I I1 J J1 K

inches 1.69 1.61 1.88 .88 .88 #10-32 X .31 1/8 OR 1/4 NPT 1.88 2.13 .92 .85 2.52
mm 42.9 41.0 47.7 22.4 22.4 7.9 DP 1/8 OR 1/4 NPT 47.8 54.1 23.4 21.5 64.0


Numbering System Chart

Series Designation

Type

Orifice*

Port Size And Body Material

Body Port and Function Options

Housing Options

Coil Options

Voltage

Frequency

NOTE: “G” Marked prior to the valve number denotes Gang Feeding.
“E” Marked prior to the valve number denotes Explosion Proof.
“H” Marked prior to the valve number denotes High Pressure Valve. “F” Marked prior to the valve number denotes Filter Valve.
Where numerous options are specified, valves will be marked with 2 numbers to identify valve series and type, followed by specifically assigned numbers.
* For 3 way valves this number will consist of two suffix letters. The first indicates the inlet orifice & the second the exhaust orifice. ** For valves with a combination of two standard body options, this suffix will consist of two letters.
**** In Series 70 -1/16 - 5/16 Orifice.
† For series H high pressure valves only.
†† 2 in Series 15 is 1/8 NPT Aluminum only.
††† Letter K followed by “M” in 7th digit column indicates molded spade terminal coil & yoke.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
