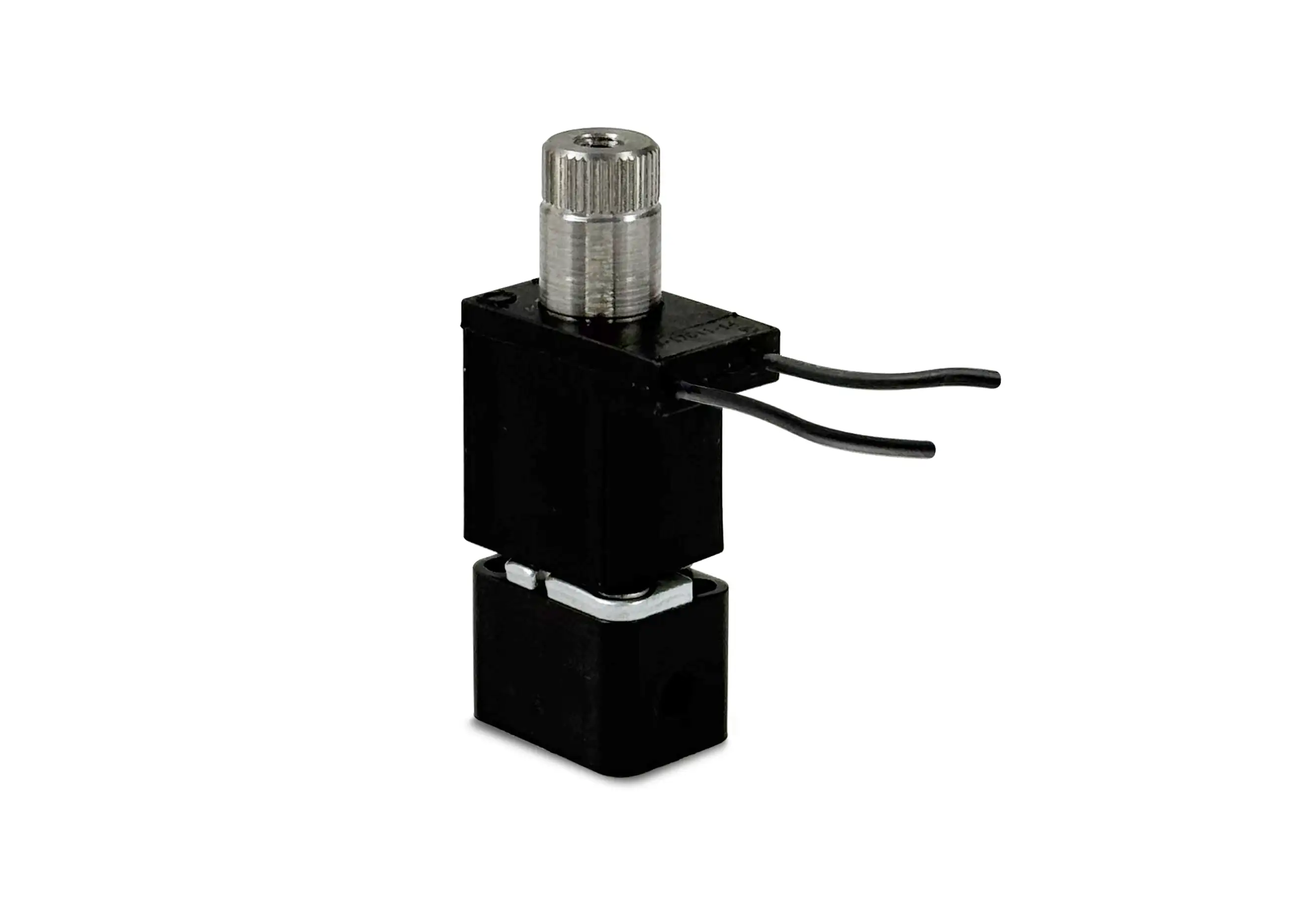

Series 58 Model 584
Low Watt
3-Way Normally Open Valve
Easily interfaced with circuit boards and miniaturized components. The versatility is for connecting electronic signals to pneumatic outputs. The small size is ideal for stand alone(with #10-32 ports) or multiple valves mounted on one manifold. Air and other common gasses – filtration recommended – 30 microns or less.
• May be used to “pilot” larger valves.
• Ideal for micro electronic production equipment.
• Great for medical and chemical analytical applications.
• Can operate directly from most programmable controllers.
• High quality engineering.
- SPECIFICATIONS
- 2-D & 3-D CAD DRAWING

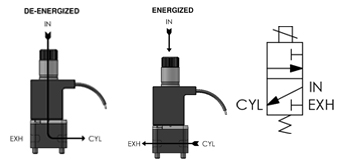

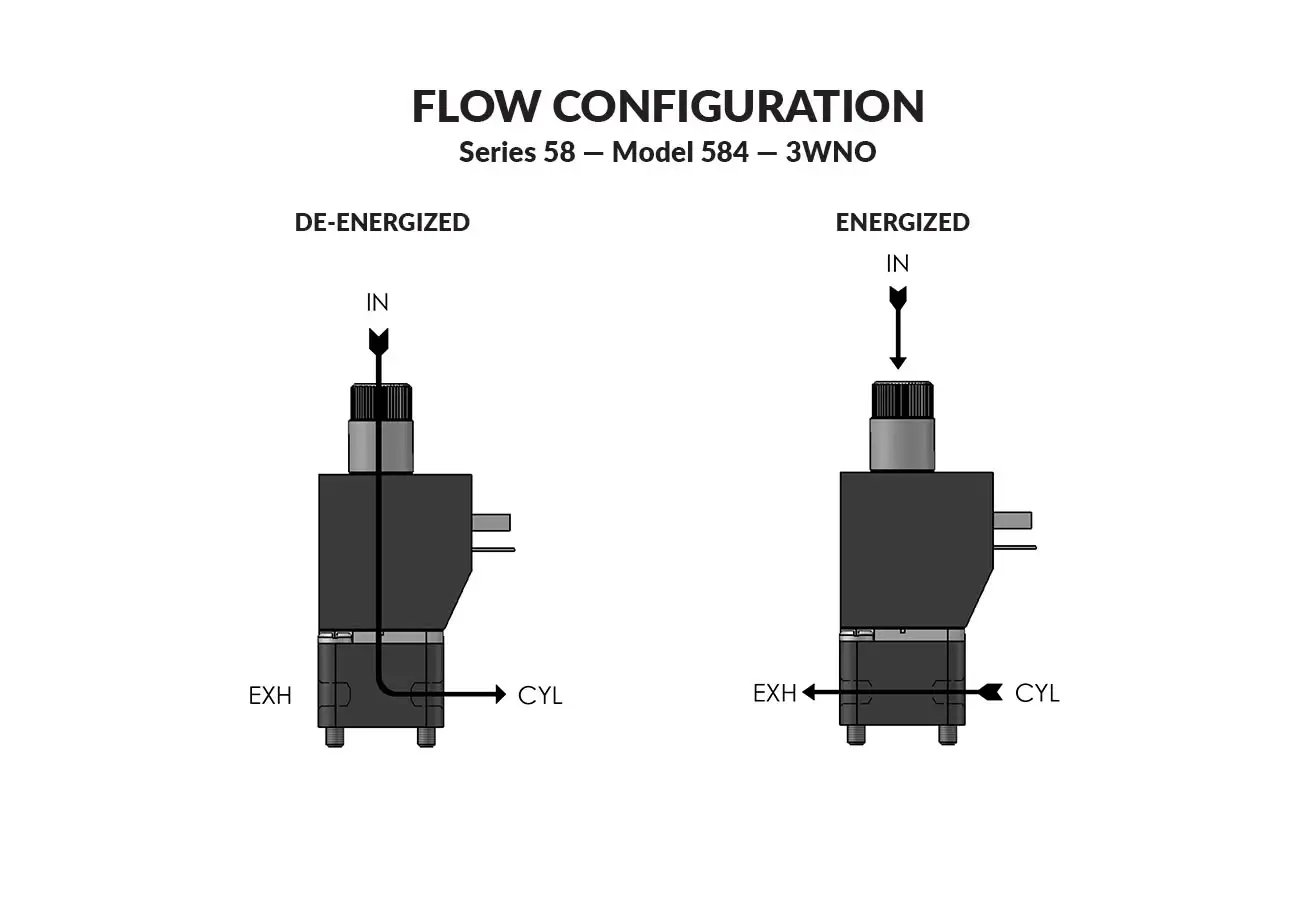

- FLOW CHART
| MAX. OPER. PRESS. DIFF. |
ORIFICE SIZE | CV FACTOR | VALVE NUMBER | ||||||
| AC | DC | NO | NC | NO | NC | #10-32 PORTS | MANIFOLD MNT | ||
 |
|||||||||
| 145 | 145 | 0.6 mm | 0.6 mm | .010 | .010 | 584AA19PG | 584AA15PG | ||
| 100 | 100 | 0.8 mm | 0.8 mm | .010 | .020 | 584FF19PG | 584FF15PG | ||
| 50 | 50 | 1.0 mm | 1.0 mm | .030 | .030 | 584MM19PG | 584MM15PG | ||
| 40 | 40 | 1.2 mm | 1.2 mm | .034 | .034 | 584WW19PG | 584WW15PG | ||
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (584MM19PG-120/60) REPAIR PACK (K584MM19-AC)
OPERATING CONDITIONS
Media: Air and other common gasses – filtration recommended – 30 microns or less.
Valve Temperature Range: Standard Valves – 5°F (-15°C) to 122°F (50°C) ambient; media.
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 1500 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 14 to 220V AC 60 HZ. and 13 to 202V AC HZ.— 3.0 to 150V DC
Nominal Power: AC — 3.5 Watts DC — 3.5 Watts
Coil Construction: Molded Class A with leadwires (Std), Micro DIN (Opt.)
Typical Response Time on Air: AC – 3 to 9 Milliseconds DC – 9 Milliseconds
Operating Speed: Up to 1000 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
Body: Polyester Plastic (Std.), Round Brass or Stainless Steel (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: #10-32 and Manifold Mount
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 0.13 lbs
Repair Packs: See table above.
Options: Round Stainless Steel or Brass Body, Male Stud Mount, Manual Override, M5 Ports*
* Consult representative or factory for options and specifications.
Series 58 General Purpose Valves
| A | A1 | A2 | A3 | B | C | C1 | D | E | F | G | H | I | |
|
|||||||||||||
| inches | 1.87 | 2.13 | 2.00 | 2.26 | .23 | 1.04 | 1.34 | .62 | .39 | .63 | .13 |
#10-32
|
.38 |
| mm | 47.5 | 54.1 | 50.8 | 57.4 | 5.8 | 26.4 | 34.0 | 15.7 | 9.9 | 16.0 | 3.3 | 9.7 | |
