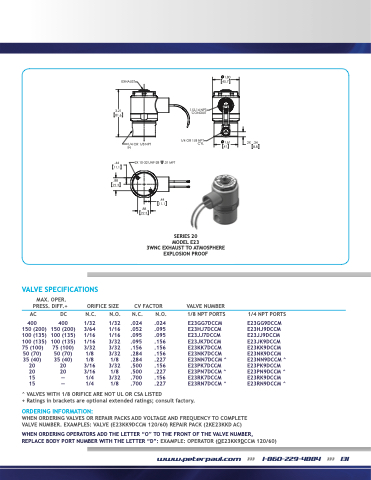

Page 133 - Peter Paul 2019 Catalog

VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF.+ ORIFICE SIZE
AC DC N.C. N.O.
CV FACTOR N.C. N.O.
.024 .024 .052 .095 .095 .095 .095 .156 .156 .156 .284 .156 .284 .227 .500 .156 .500 .227 .700 .156 .700 .227
VALVE NUMBER 1/8 NPT PORTS
E23GG7DCCM E23HJ7DCCM E23JJ7DCCM E23JK7DCCM E23KK7DCCM E23NK7DCCM E23NN7DCCM ^ E23PK7DCCM E23PN7DCCM ^ E23RK7DCCM E23RN7DCCM ^
1/4 NPT PORTS
E23GG9DCCM E23HJ9DCCM E23JJ9DCCM E23JK9DCCM E23KK9DCCM E23NK9DCCM E23NN9DCCM ^ E23PK9DCCM E23PN9DCCM ^ E23RK9DCCM E23RN9DCCM ^
400 150 (200) 100 (135) 100 (135) 75 (100)
50 (70) 35 (40) 20 20
400 150 (200) 100 (135) 100 (135) 75 (100) 50 (70) 35 (40) 20
20
1/32 1/32 3/64 1/16 1/16 1/16 1/16 3/32 3/32 3/32
1/8 3/32
1/8 1/8 3/16 3/32 3/16 1/8
15 —
15 — 1/4 1/8
1/4 3/32
^ VALVES WITH 1/8 ORIFICE ARE NOT UL OR CSA LISTED
+ Ratings in brackets are optional extended ratings; consult factory.
ORDERING INFORMATION:
3.21 81.6
.44 11.1
.88 22.3
1/4 OR 1/8 NPT IN
1/2-14 NPT CONDUIT
1/4 OR 1/8 NPT CYL
.44 11.1
1.61 41
2X .34 8.8
EXHAUST
1.80 45.7
2X 10-32 UNF-2B
.31 MFT
.88 22.3
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E23KK9DCCM 120/60) REPAIR PACK (2KE23KKD AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OE23KK9DCCM 120/60)
SERIES 20
SERIES 20 MODEL E23
MODEL E23
3WNC EXHAUST TO ATMOSPHERE
3WNC EXHAUST TO ATMOSPHERE
EXPLOSION PROOF
EXPLOSION PROOF
www.peterpaul.com >>> 1-860-229-4884 >>> 131
