P. 149

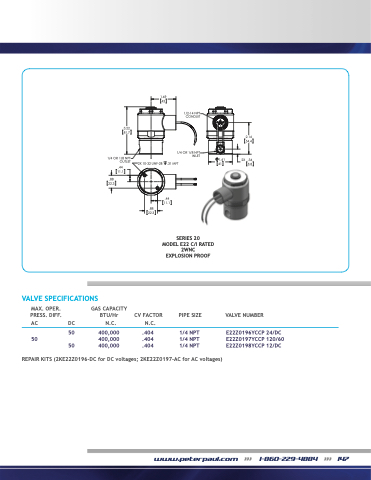

VALVE SPECIFICATIONS
EXPLOSION PROOF
PIPE SIZE
1/4 NPT 1/4 NPT 1/4 NPT
MAX. OPER. PRESS. DIFF.
AC
50
DC
50
50
GAS CAPACITY BTU/Hr
N.C.
400,000 400,000 400,000
CV FACTOR N.C.
.404 .404 .404
VALVE NUMBER
E22Z0196YCCP 24/DC E22Z0197YCCP 120/60 E22Z0198YCCP 12/DC
3.22 81.7
1/4 OR 1/8 NPT OUTLET
.44 11.1
.88 22.3
1/4 OR 1/8 NPT INLET
.31 MFT
2.14 54.4
1.61 2X .34 41 8.8
REPAIR KITS (2KE22Z0196-DC for DC voltages; 2KE22Z0197-AC for AC voltages)
1.69 43
2X 10-32 UNF-2B
.88 22.3
1/2-14 NPT CONDUIT
.44 11.1
SERIES 20
SERIES 20 MODEL E22
MODEL E22 C/I RATED
2WNC
2WNC
EXPLOSION PROOF
www.peterpaul.com >>> 1-860-229-4884 >>> 147
