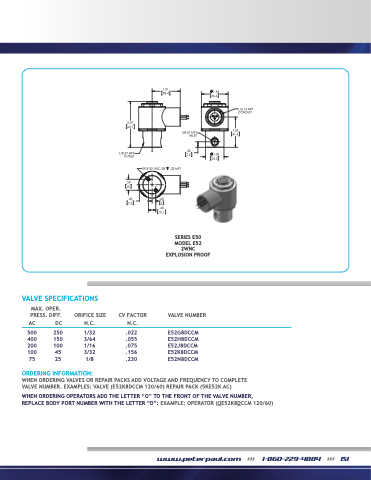

Page 153 - Peter Paul 2019 Catalog

1.51 38.4
1.44 36.6
2.47 62.7
1/8-27 NPT OUTLET
.59 15
.30 7.5
1/8-27 NPT INLET
1/2-14 NPT CONDUIT
1.63 41.4
.30
7.5 1.00
25.3
2X 8-32 UNC-2B
.23 MFT
.20 5 .40 10.1
SESRERIEIESSE50 MOODDELELEE5522
2WNC EXPLOSION PROOF
EXPLOSION PROOF
VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE
AC DC N.C.
500 250 1/32 400 150 3/64 200 100 1/16 100 45 3/32 75 25 1/8
ORDERING INFORMATION:
CV FACTOR N.C.
.022 .055 .075 .156 .230
VALVE NUMBER
E52G8DCCM E52H8DCCM E52J8DCCM E52K8DCCM E52N8DCCM
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E52K8DCCM 120/60) REPAIR PACK (5KE52K AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OE52K8DCCM 120/60)
