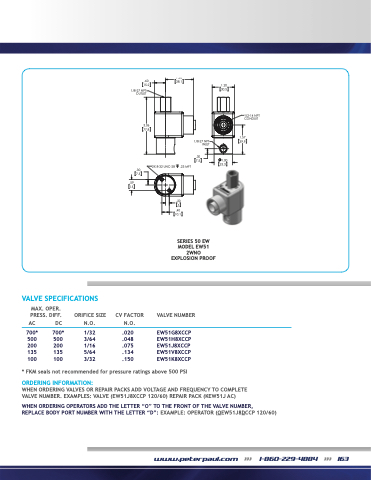

VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC
700* 500 200 135 100
ORIFICE SIZE DC N.O.
700* 1/32 500 3/64 200 1/16 135 5/64 100 3/32
CV FACTOR N.O.
.020 .048 .075 .134 .150
VALVE NUMBER
EW51G8XCCP EW51H8XCCP EW51J8XCCP EW51V8XCCP EW51K8XCCP
* FKM seals not recommended for pressure ratings above 500 PSI
ORDERING INFORMATION:
.60 15.2
1/8-27 NPT OUTLET
3.06 77.8
.30 7.5
.59 15
1.50 38.1
1.20 30.5
1.00 25.3
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (EW51J8XCCP 120/60) REPAIR PACK (KEW51J AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OEW51J8DCCP 120/60)
2X 8-32 UNC-2B
.23 MFT
.20 5 .40 10.1
1/8-27 NPT INLET
.30 7.5
1/2-14 NPT CONDUIT
1.57 39.9
SERIES 50 MODEL EW51
SERIES 50 EW
2WNO
MODEL EW51
EXPLOSION PROOF
2WNO EXPLOSION PROOF
