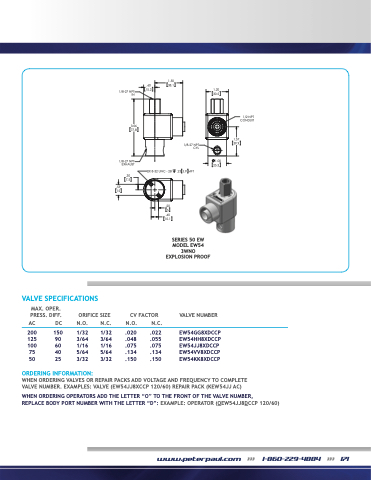

VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
200 150 125 90 100 60
75 40 50 25
ORIFICE SIZE
N.O. N.C. N.O. N.C.
VALVE NUMBER
EW54GG8XDCCP EW54HH8XDCCP EW54JJ8XDCCP EW54VV8XDCCP EW54KK8XDCCP
ORDERING INFORMATION:
1/32 1/32 3/64 3/64 1/16 1/16 5/64 5/64 3/32 3/32
.020 .022 .048 .055 .075 .075 .134 .134 .150 .150
1/8-27 NPT IN
3.06 77.8
1/8-27 NPT EXHAUST
.30 7.5
.59 15
1/8-27 NPT CYL
.23 5.9 MFT
1.20 30.5
1.00 25.3
1/2 NPT CONDUIT
1.57 39.9
CV FACTOR
.60 15.2
1.50 38.1
2X 8-32 UNC - 2B
.20 5 .40 10.1
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (EW54JJ8XCCP 120/60) REPAIR PACK (KEW54JJ AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OEW54JJ8DCCP 120/60)
SERIES 50
SERIES 50 EW
MODEL EW54
MODEL EW54
3WNO
3WNO
EXPLOSION PROOF
EXPLOSION PROOF
www.peterpaul.com >>> 1-860-229-4884 >>> 171
