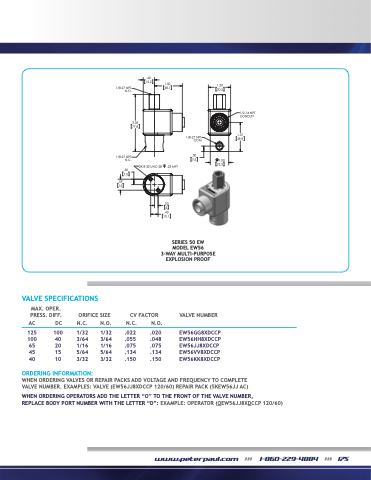

Page 177 - Peter Paul 2019 Catalog

VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE
SIZE CV FACTOR AC DC N.C. N.O. N.C. N.O.
125
100
65
45
40
100 1/32 1/32 .022 .020 40 3/64 3/64 .055 .048 20 1/16 1/16 .075 .075 15 5/64 5/64 .134 .134 10 3/32 3/32 .150 .150
ORDERING INFORMATION:
1/8-27 NPT N.O.
3.06 77.8
.30 7.5
.59 15
1/8-27 NPT COM
1/2-14 NPT CONDUIT
1.57 39.9
1/8-27 NPT N.C.
.30
7.5 1.00
.60 15.2
1.50 38.1
1.20 30.5
2X 8-32 UNC-2B
.23 MFT
25.3
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (EW56JJ8XDCCP 120/60) REPAIR PACK (5KEW56JJ AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OEW56JJ8XDCCP 120/60)
.20 5 .40 10.1
SESREIRERSIE5S050EW
MODDEELLEEW556 3-WAY MULTI-PURPOSE
3-WAY MULTI-PURPOSE
EXPLOSION PROOF
VALVE NUMBER
EW56GG8XDCCP EW56HH8XDCCP EW56JJ8XDCCP EW56VV8XDCCP EW56KK8XDCCP
EXPLOSION PROOF
www.peterpaul.com >>> 1-860-229-4884 >>> 175
