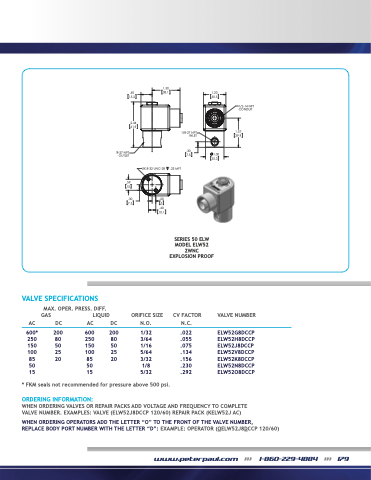

VALVE SPECIFICATIONS
EXPLOSION PROOF
CV FACTOR N.C.
.022 .055 .075 .134 .156 .230 .292
MAX. OPER. PRESS. DIFF. GAS LIQUID
ORIFICE SIZE N.O.
1/32 3/64 1/16 5/64 3/32 1/8 5/32
VALVE NUMBER
ELW52G8DCCP ELW52H8DCCP ELW52J8DCCP ELW52V8DCCP ELW52K8DCCP ELW52N8DCCP ELW52O8DCCP
AC DC AC DC
600* 200 600 200 250 80 250 80 150 50 150 50 100 25 100 25
85208520 50 50
15 15
* FKM seals not recommended for pressure above 500 psi.
ORDERING INFORMATION:
2.44 61.9
1/8-27 NPT OUTLET
.59 15
.30 7.5
1/8-27 NPT INLET
.30 7.5
1/2-14 NPT CONDUIT
1.57 39.9
.60 15.2
1.50 38.1
1.20 30.5
1.00 25.3
2X 8-32 UNC-2B
.20 5 .40 10.1
.23 MFT
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (ELW52J8DCCP 120/60) REPAIR PACK (KELW52J AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OELW52J8DCCP 120/60)
SERIES 50
SERIES 50 ELW
MODEL EW52
MODEL ELW52
2WNC
2WNC
