Page 215 - Peter Paul 2019 Catalog
P. 215

 1/4-18 NPT
IN 47.9
2.25 57.2
1.44 36.5
3.44 87.3 2.75 69.9
3.81 96.8
.44 11.1
.88 22.3
2.48 63
1/2-14 NPT CONDUIT
1/4-18 NPT CYL
2.44 61.9
.20 5.2
.27 6.8
1/4-18 NPT EXH
2X 10-32 UNF-2B
.31 MFT
.44 11.1 .88 22.3
2X .35 1.61 8.8 41

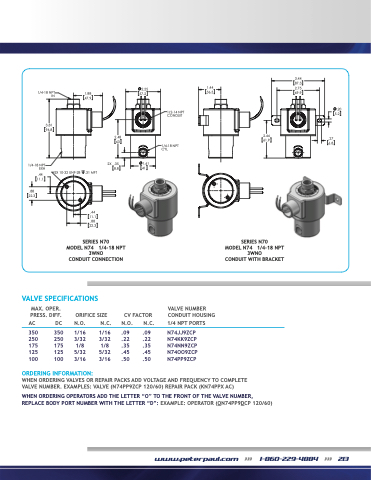

VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
350     350
250     250
175     175
125     125
100     100
ORIFICE SIZE N.O. N.C.
1/16 1/16 3/32 3/32 1/8 1/8 5/32 5/32 3/16 3/16
CV FACTOR N.O. N.C.
.09 .09 .22 .22 .35 .35 .45 .45 .50 .50
VALVE NUMBER CONDUIT HOUSING
1/4 NPT PORTS
N74JJ9ZCP N74KK9ZCP N74NN9ZCP N74OO9ZCP N74PP9ZCP
ORDERING INFORMATION:
1.88
SERIES N70
SERIES N70
SERIES 70 MOMDOEDLENL7N4741/41-/148-1N8PNTPT MOMDOEDLENL7N4741/41-/148-1N8PNTPT
SERIES 70
3W3WNONO CONDUIT CONNECTION
3W3WNONO CONDUIT WITH BRACKET
CONDUIT CONNECTION
CONDUIT WITH BRACKET
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (N74PP9ZCP 120/60) REPAIR PACK (KN74PPX AC)
WHEN ORDERING OPERATORS ADD THE LETTER ā€œOā€ TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER ā€œDā€: EXAMPLE: OPERATOR (ON74PP9DCP 120/60)
