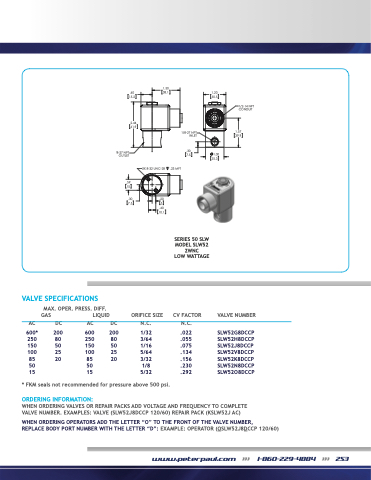

Page 255 - Peter Paul 2019 Catalog

VALVE SPECIFICATIONS
LOW WATTAGE
CV FACTOR N.C.
.022 .055 .075 .134 .156 .230 .292
MAX. OPER. PRESS. DIFF. GAS LIQUID
SIZE
VALVE NUMBER
SLW52G8DCCP SLW52H8DCCP SLW52J8DCCP SLW52V8DCCP SLW52K8DCCP SLW52N8DCCP SLW52O8DCCP
ORIFICE ACDCACDCN.C.
600* 200 600 200 250 80 250 80 150 50 150 50 100 25 100 25
85208520 50 50
15 15
1/32 3/64 1/16 5/64 3/32 1/8 5/32
* FKM seals not recommended for pressure above 500 psi.
ORDERING INFORMATION:
2.44 61.9
1/8-27 NPT OUTLET
.59 15
.30 7.5
1/8-27 NPT INLET
.30 7.5
1/2-14 NPT CONDUIT
1.57 39.9
.60 15.2
1.50 38.1
1.20 30.5
1.00 25.3
2X 8-32 UNC-2B
.23 MFT
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (SLW52J8DCCP 120/60) REPAIR PACK (KSLW52J AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER,
REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OSLW52J8DCCP 120/60)
.20 5 .40 10.1
SERIES 50
SERIES 50 SLW
MODEL EW52
MODEL SLW52
2WNC
2WNC
EXPLOSION PROOF
