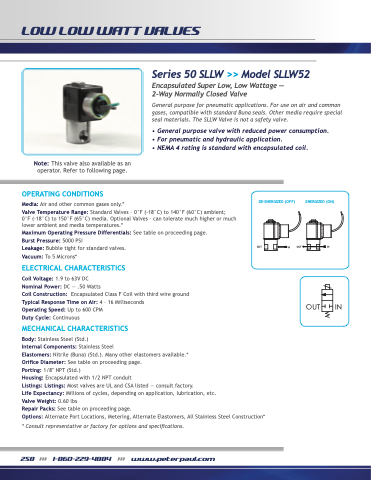

Page 260 - Peter Paul 2019 Catalog

LOW LOW WATT VALVES
Note: This valve also available as an operator. Refer to following page.
OPERATING CONDITIONS
Media: Air and other common gases only.*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 140°F (60°C) ambient;
0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table on proceeding page.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves. Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 1.9 to 63V DC
Nominal Power: DC — .50 Watts
Coil Construction: Encapsulated Class F Coil with third wire ground Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
DE-ENERGIZED (OFF)
OUT IN
ENERGIZED (ON)
Series 50 SLLW >> Model SLLW52 Encapsulated Super Low, Low Wattage —
2-Way Normally Closed Valve
General purpose for pneumatic applications. For use on air and common gases, compatible with standard Buna seals. Other media require special seal materials. The SLLW Valve is not a safety valve.
• General purpose valve with reduced power consumption. • For pneumatic and hydraulic application.
• NEMA 4 rating is standard with encapsulated coil.
OUT
IN
IN
Body: Stainless Steel (Std.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table on proceeding page.
Porting: 1/8′′ NPT (Std.)
Housing: Encapsulated with 1/2 NPT conduit
Listings: Listings: Most valves are UL and CSA listed — consult factory.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 0.60 lbs
Repair Packs: See table on proceeding page.
Options: Alternate Port Locations, Metering, Alternate Elastomers, All Stainless Steel Construction*
* Consult representative or factory for options and specifications.
OUT
