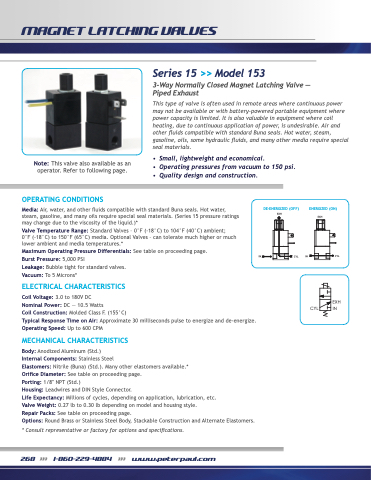

Page 270 - Peter Paul 2019 Catalog

MAGNET LATCHING VALVES
Series 15 >> Model 153
3-Way Normally Closed Magnet Latching Valve —
Piped Exhaust
This type of valve is often used in remote areas where continuous power may not be available or with battery-powered portable equipment where power capacity is limited. It is also valuable in equipment where coil heating, due to continuous application of power, is undesirable. Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many other media require special seal materials.
• Small, lightweight and economical.
• Operating pressures from vacuum to 150 psi. • Quality design and construction.
Note: This valve also available as an operator. Refer to following page.
OPERATING CONDITIONS
Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 15 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient;
0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table on proceeding page. Burst Pressure: 5,000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 3.0 to 180V DC
Nominal Power: DC — 10.5 Watts
Coil Construction: Molded Class F. (155°C)
Typical Response Time on Air: Approximate 30 milliseconds pulse to energize and de-energize. Operating Speed: Up to 600 CPM
MECHANICAL CHARACTERISTICS
Body: Anodized Aluminum (Std.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table on proceeding page.
Porting: 1/8′′ NPT (Std.)
Housing: Leadwires and DIN Style Connector.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: 0.27 lb to 0.30 lb depending on model and housing style.
Repair Packs: See table on proceeding page.
Options: Round Brass or Stainless Steel Body, Stackable Construction and Alternate Elastomers.
* Consult representative or factory for options and specifications.
DE-ENERGIZED (OFF)
ENERGIZED (ON)
EXH
CYL
EXH CYL IN
EXH
CYL
EXH IN
IN
CYL IN
