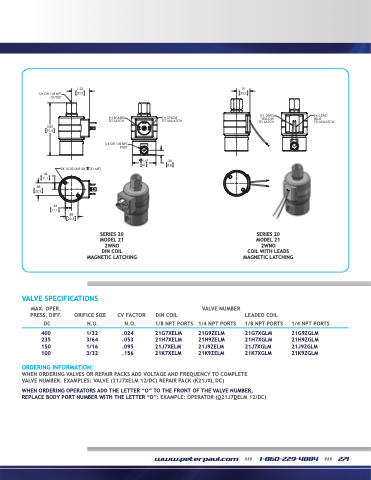

Page 273 - Peter Paul 2019 Catalog

1/4 OR 1/8 NPT OUTLET
3.60 91.4
.44 11.1
.88 22.3
1.22 30.9
.91 23.2
.44 11.1
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
DC
400
235
150
100
ORIFICE SIZE N.O.
1/32 3/64 1/16 3/32
CV FACTOR N.O.
.024 .053 .095 .156
DIN COIL
1/8 NPT PORTS
21G7XELM 21H7XELM 21J7XELM 21K7XELM
VALVE NUMBER 1/4 NPT PORTS
21G9ZELM 21H9ZELM 21J9ZELM 21K9ZELM
LEADED COIL
1/8 NPT PORTS
21G7XGLM 21H7XGLM 21J7XGLM 21K7XGLM
1/4 NPT PORTS
21G9ZGLM 21H9ZGLM 21J9ZGLM 21K9ZGLM
ORDERING INFORMATION:
2X 10-32 UNF-2B
.88 22.3
.31 MFT
1.61 41
SERIES 20 MODEL 21 2WNMODEL 21
SERIES 20 MODEL 21 MO2WDENLO21
MAGNETIC LATC2HWINNGOCOIL WITH LEADS
MAGNETIC LATCH2INWGNODIN COIL DIN COIL
MAGNETIC LATCHING
COIL WITH LEADS MAGNETIC LATCHING
(+) SPADE TO LATCH
1/4 OR 1/8 NPT INLET
(+) SPADE TO UNLATCH
.34 8.8
(+) LEAD YELLOW TO LATCH
(+) LEAD BLUE
TO UNLATCH
SERIES 20
SERIES 20
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (21J7XELM 12/DC) REPAIR PACK (K21JXL DC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O21J7DELM 12/DC)
