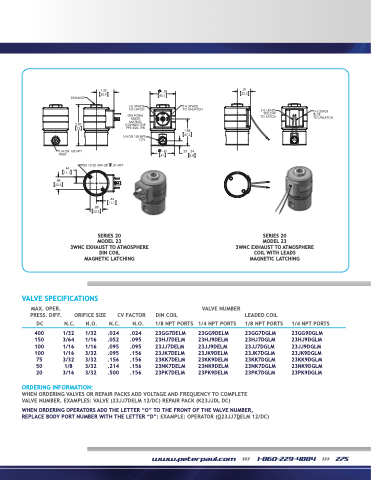

VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
ORIFICE SIZE
CV FACTOR
DIN COIL
VALVE NUMBER 1/4 NPT PORTS
23GG9DELM 23HJ9DELM 23JJ9DELM 23JK9DELM 23KK9DELM 23NK9DELM 23PK9DELM
LEADED COIL
1/8 NPT PORTS
23GG7DGLM 23HJ7DGLM 23JJ7DGLM 23JK7DGLM 23KK7DGLM 23NK7DGLM 23PK7DGLM
DC N.C.
400 1/32 150 3/64 100 1/16 100 1/16
75 3/32 50 1/8 20 3/16
N.O. N.C.
1/32 .024 1/16 .052 1/16 .095 3/32 .095 3/32 .156 3/32 .214 3/32 .500
N.O.
.024 .095 .095 .156 .156 .156 .156
1/8 NPT PORTS
23GG7DELM 23HJ7DELM 23JJ7DELM 23JK7DELM 23KK7DELM 23NK7DELM 23PK7DELM
1/4 NPT PORTS
23GG9DGLM 23HJ9DGLM 23JJ9DGLM 23JK9DGLM 23KK9DGLM 23NK9DGLM 23PK9DGLM
ORDERING INFORMATION:
1.22
30.9 EXHAUST
1.78 45.1
1.61 41
.91 23.2
2.87 73
1/4 OR 1/8 NPT INLET
.44 11.1
.88 22.3
3WNC EXHAUST TO ATMOSPHERE
1.86 47.2
2X .34 8.8
(+) SPADE TO LATCH
DIN FORM 43650 MATING CONNECTOR PPE #20-198
1/4 OR 1/8 NPT CYL
.31 MFT
.44 11.1
.88 22.3
(+) SPADE TO UNLATCH
(+) LEADS YELLOW TO LATCH
(+) LEADS BLUE
TO UNLATCH
2X 10-32 UNF-2B
SERIES 20 MODEL 23
SERIES 20 MODEL 23
SERIES 20
SERIES 20
MODEL 23
MODEL 23
3WNC EXHAUST TO ATMOSPHERE
3WNC EXHAUST TO ATMOSPHERE
COIL WITH LEADS MAGNETIC LATCHING
MAGNETIC LATCHING DIN COIL
MAGNETIC LATCHING COIL WITH LEADS
WHEN ORDERING VALVES OR REPAIR PACKS ADD VALVE NUMBER. EXAMPLES: VALVE (23JJ7DELM
VOLTAGE AND FREQUENCY TO COMPLETE 12/DC) REPAIR PACK (K23JJDL DC)
DIN COIL MAGNETIC LATCHING
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O23JJ7DELM 12/DC)
3WNC EXHAUST TO ATMOSPHERE
www.peterpaul.com >>> 1-860-229-4884 >>> 275
