2.00 50.8
3.78 96.1
.60 15.3
1.22 30.9
2.37 60.2
(+) SPADE LATCH
1/2-14 NPT CONDUIT
2.81 71.3
2X 1/2-14 NPT
.91
(+) SPADE 23.2 TO UNLATCH

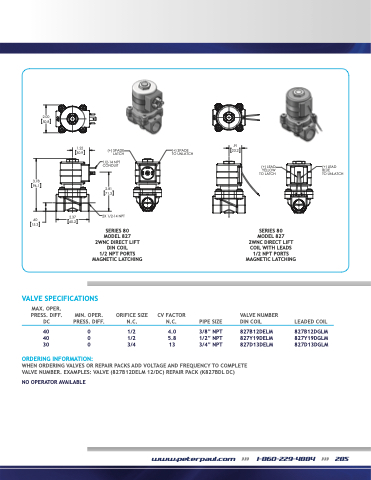

VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF. DC
40 40 30
MIN. OPER. PRESS. DIFF.
0 0 0
ORIFICE SIZE N.C.
1/2 1/2 3/4
CV FACTOR N.C.
4.0 5.8 13
PIPE SIZE
3/8” NPT 1/2” NPT 3/4” NPT
VALVE NUMBER DIN COIL
827B12DELM 827Y19DELM 827D13DELM
LEADED COIL
827B12DGLM 827Y19DGLM 827D13DGLM
ORDERING INFORMATION:
SERIES 80 MODEL 827
SERIES 80
SERIES 80 MODEL 827
MODEL 827
2WNC DIRECT LIFT
2WNC DIRECT LIFT
MAGNETIC LATCHING DIN COIL
2WNC DIRECT LIFT
2WNC DIRECT LIFT
1/21/N2P"TNPOTRPTOSRTS 1/2NPTPORTS
DIN COIL
1/2" NPT PORTS
MAGNETIC LATCHING
MAGNETIC LATCHING
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (827B12DELM 12/DC) REPAIR PACK (K827BDL DC)
