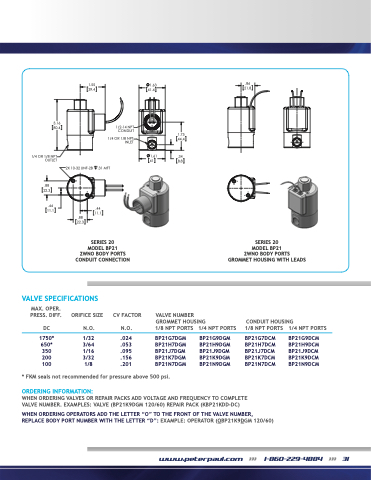

Page 33 - Peter Paul 2019 Catalog

3.16 80.4
1/4 OR 1/8 NPT OUTLET
.88 22.3
.44 11.1
1.75 44.4
1.61 .34
1.55 1.63 39.4 41.4
1/2-14 NPT CONDUIT
1/4 OR 1/8 NPT INLET
.31 MFT
.44 11.1
.88 22.3
.86 21.8
2X 10-32 UNF-2B
VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE SIZE CV FACTOR
DC N.O. N.O.
VALVE NUMBER GROMMET HOUSING
CONDUIT HOUSING
1750* 1/32 650* 3/64 350 1/16 200 3/32 100 1/8
.024 .053 .095 .156 .201
1/8 NPT PORTS
BP21G7DGM BP21H7DGM BP21J7DGM BP21K7DGM BP21N7DGM
1/4 NPT PORTS
BP21G9DGM BP21H9DGM BP21J9DGM BP21K9DGM BP21N9DGM
1/8 NPT PORTS
BP21G7DCM BP21H7DCM BP21J7DCM BP21K7DCM BP21N7DCM
1/4 NPT PORTS
BP21G9DCM BP21H9DCM BP21J9DCM BP21K9DCM BP21N9DCM
SERIES 20
SERIES 20
SERIES 20 MODEL BP21
SERIES 20 MODEL BP21
MODEL BP21
MODEL BP21
2WNO BODY PORTS
2WNO BODY PORTS
2WNO BODY PORTS
2WNO BODY PORTS
CONDUIT COIL CONNECTION
GROMMET HOUSING WITH LEADS
CONDUIT CONNECTION
GROMMET HOUSING WITH LEADS
* FKM seals not recommended for pressure above 500 psi.
ORDERING INFORMATION:
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (BP21K9DGM 120/60) REPAIR PACK (KBP21KDD-DC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OBP21K9DGM 120/60)
41
8.8
www.peterpaul.com >>> 1-860-229-4884 >>> 31
