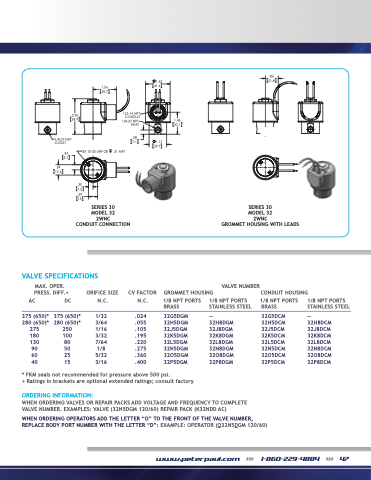

Page 49 - Peter Paul 2019 Catalog

1/8-27 NPT OUTLET
.34 8.7
.69 17.4
.28 7.1
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.+
ORIFICE SIZE N.C.
1/32 3/64 1/16 3/32 7/64 1/8 5/32 3/16
CV FACTOR N.C.
.024 .055 .105 .195 .220 .275 .360 .400
GROMMET HOUSING
VALVE NUMBER
CONDUIT HOUSING
AC
375 (650)* 280 (650)* 275
180
130
90
60
40
DC
375 (650)* 280 (650)* 250 100
80
50
25
15
1/8 NPT PORTS BRASS
32G5DGM 32H5DGM 32J5DGM 32K5DGM 32L5DGM 32N5DGM 32O5DGM 32P5DGM
1/8 NPT PORTS STAINLESS STEEL
— 32H8DGM 32J8DGM 32K8DGM 32L8DGM 32N8DGM 32O8DGM 32P8DGM
1/8 NPT PORTS BRASS
32G5DCM 32H5DCM 32J5DCM 32K5DCM 32L5DCM 32N5DCM 32O5DCM 32P5DCM
1/8 NPT PORTS STAINLESS STEEL
— 32H8DCM 32J8DCM 32K8DCM 32L8DCM 32N8DCM 32O8DCM 32P8DCM
* FKM seals not recommended for + Ratings in brackets are optional
ORDERING INFORMATION:
pressure above 500 psi. extended ratings; consult factory
2X 10-32 UNF-2B
1.56 39.7
2.36 59.9
.30 7.5 .59 15
2WNC CONDCUOITNCDOUNITNCEOCTNINOENCTION
1.46 37.1
SERIES 30
SERIES 30
MODEL 32
MODEL 32
2WNC
2WNC
1/2-14 NPT CONDUIT 1/8-27 NPT
.31 MFT
SERIES 30
SERIES 30
MODEL 32
MODEL 32
INLET
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (32N5DGM 120/60) REPAIR PACK (K32NDD AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O32N5DGM 120/60)
1.63 41.4
1.17 29.7
.86 21.8
2WNC GROMGMREOTMHMOEUTSHINOGUWSINITGH WLEITAHDSLEADS
www.peterpaul.com >>> 1-860-229-4884 >>> 47
