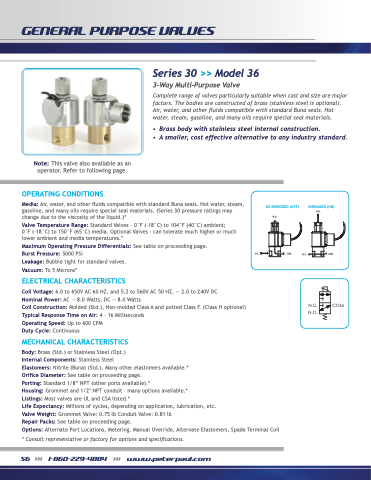

Page 58 - Peter Paul 2019 Catalog

GENERAL PURPOSE VALVES
Note: This valve also available as an operator. Refer to following page.
OPERATING CONDITIONS
Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 30 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient;
0°F (-18°C) to 150°F (65°C) media. Optional Valves - can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table on proceeding page. Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 6.0 to 650V AC 60 HZ. and 5.2 to 560V AC 50 HZ. — 2.0 to 240V DC
Nominal Power: AC — 8.0 Watts, DC — 8.0 Watts
Coil Construction: Molded (Std.), Non-molded Class A and potted Class F. (Class H optional) Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
DE-ENERGIZED (OFF)
N.O.
N.C. COM.
ENERGIZED (ON)
N.O.
N.C. COM.
N.C. COM N.O.
Series 30 >> Model 36
3-Way Multi-Purpose Valve
Complete range of valves particularly suitable when cost and size are major factors. The bodies are constructed of brass (stainless steel is optional). Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.
• Brass body with stainless steel internal construction.
• A smaller, cost effective alternative to any industry standard.
Body: Brass (Std.) or Stainless Steel (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table on proceeding page.
Porting: Standard 1/8” NPT (other ports available).*
Housing: Grommet and 1/2′′ NPT conduit – many options available.*
Listings: Most valves are UL and CSA listed.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: Grommet Valve: 0.75 lb Conduit Valve: 0.81 lb
Repair Packs: See table on proceeding page.
Options: Alternate Port Locations, Metering, Manual Override, Alternate Elastomers, Spade Terminal Coil
* Consult representative or factory for options and specifications.
