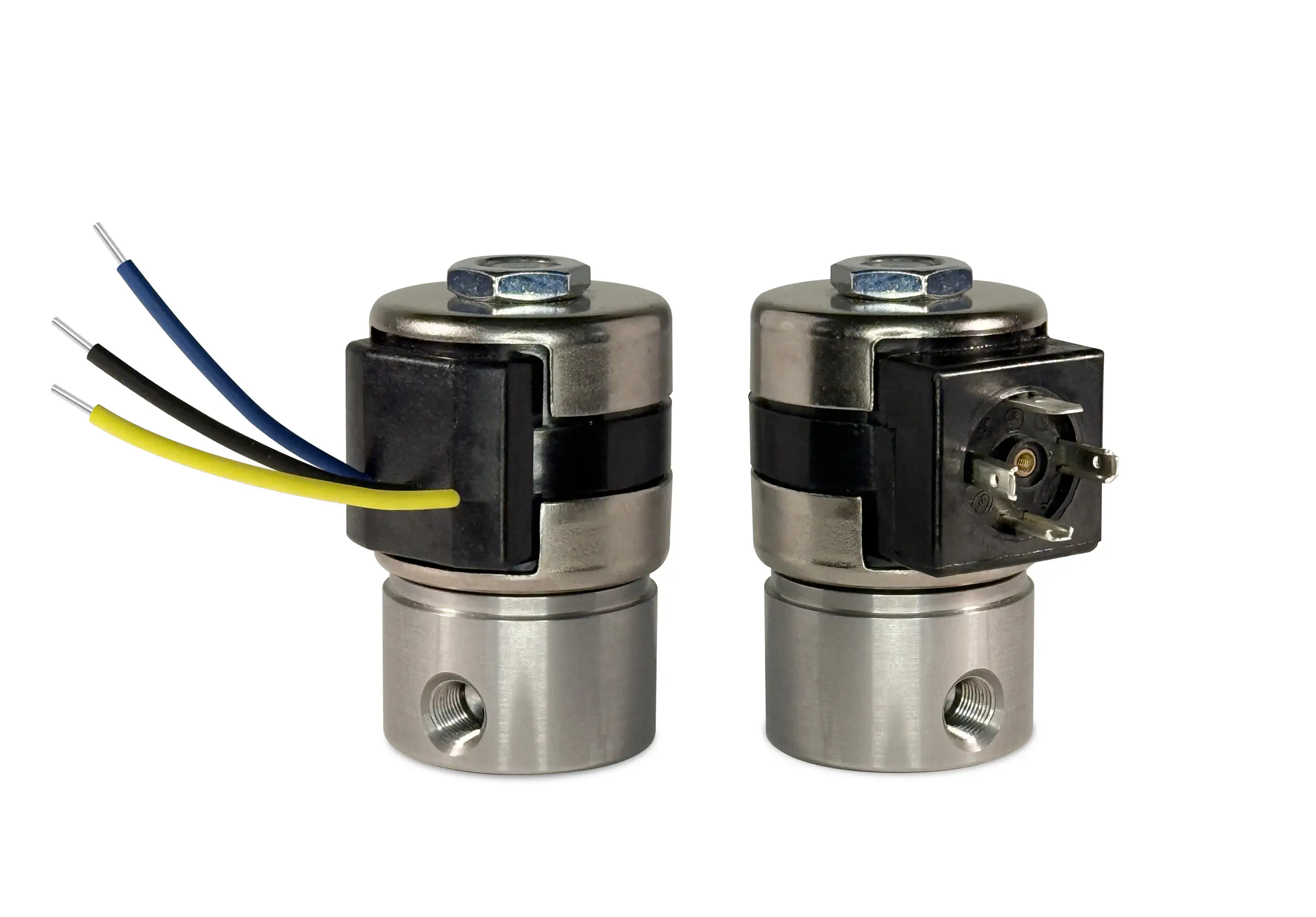

Series MLV20 Model 22 3-Wire

2-WAY NORMALLY CLOSED

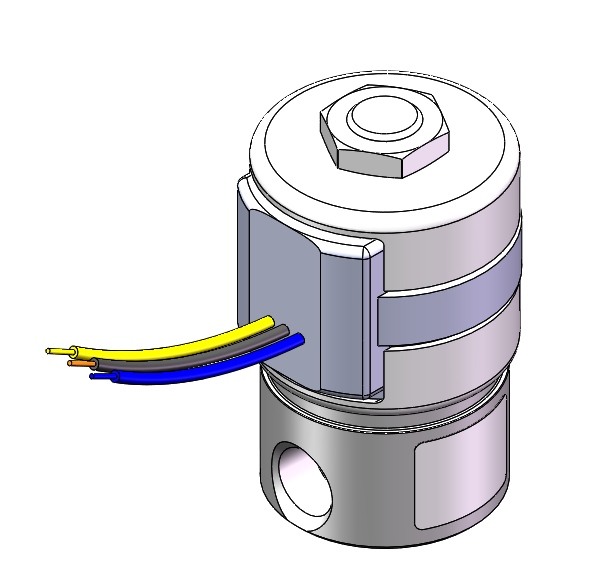

2-Way Normally Closed 3-Wire Magnet Latching Valve This type of valve is often used in remote areas where continuous power may not be available or with battery-powered portable equipment where power capacity is limited. It is also valuable in equipment where coil heating, due to continuous application of power, is undesirable. Air, water and other fluids are compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many other media require other seal materials.

There are two ways to latch and un-latch the valve.

Common Black wire set to Neutral (-)
1. Pulse Yellow lead to Positive (+) to latch
2. Pulse Blue lead to Positive (+) to un-latch
Common Black wire set to Positive (+)
1. Pulse Yellow lead to Neutral (-) to un-latch
2. Pulse Blue lead to Neutral (-) to latch

Tabs

Specifications

MAX. OPER. PRESS. DIFF.	ORIFICE SIZE	CV FACTOR	3 WIRE LEADWIRE VALVE NUMBER
DC			1/8 NPT PORTS	1/4 NPT PORTS

500	1/32	.024	22G7D3LM-∆	22G9D3LM-∆
500	3/64	.052	22H7D3LM-∆	22H9D3LM-∆
215	1/16	.095	22J7D3LM-∆	22J9D3LM-∆
150	3/32	.156	22K7D3LM-∆	22K9D3LM-∆
120	1/8	.214	22N7D3LM-∆	22N9D3LM-∆
80	5/32	.404	22O7D3LM-∆	22O9D3LM-∆
35	3/16	.500	22P7D3LM-∆	22P9D3LM-∆
25	1/4	.700	22R7D3LM-∆	22R9D3LM-∆

Ordering Information:

Seal Material: Replace ∆ with desired code - Blank = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (151J2XGM 120/60) repair pack (K1513X AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O151JDXGM 120/60)

Operating Conditions:

Media:

Air, water, and other fluids are compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require other seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*

Valve Temperature Range:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media.

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

5,000 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

12, 24/DC

Nominal Power:

8.0 Watts

Coil Construction:

Molded Class B with three - 24” leadwires

Typical Response Time on Air:

Approximate 50 millisecond pulse to energize and de-energize.

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Stainless Steel

Internal Components:

Stainless Steel

Elastomers:

Nitrile (Buna) standard. FKM, EPDM, Neoprene and Low Temp Nitrile (Buna) are available.*

Orifice Diameter:

See table above.

Porting:

1/8” OR 1/4” NPT

Listings:

Most valves are UL and CSA listed.*

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

1.2 lb average

Repair Packs:

See table above.

Options:

Alternate body materials, voltages, elastomers available.*

Drawings

To view files Autodesk Viewer can be found here. https://viewer.autodesk.com/

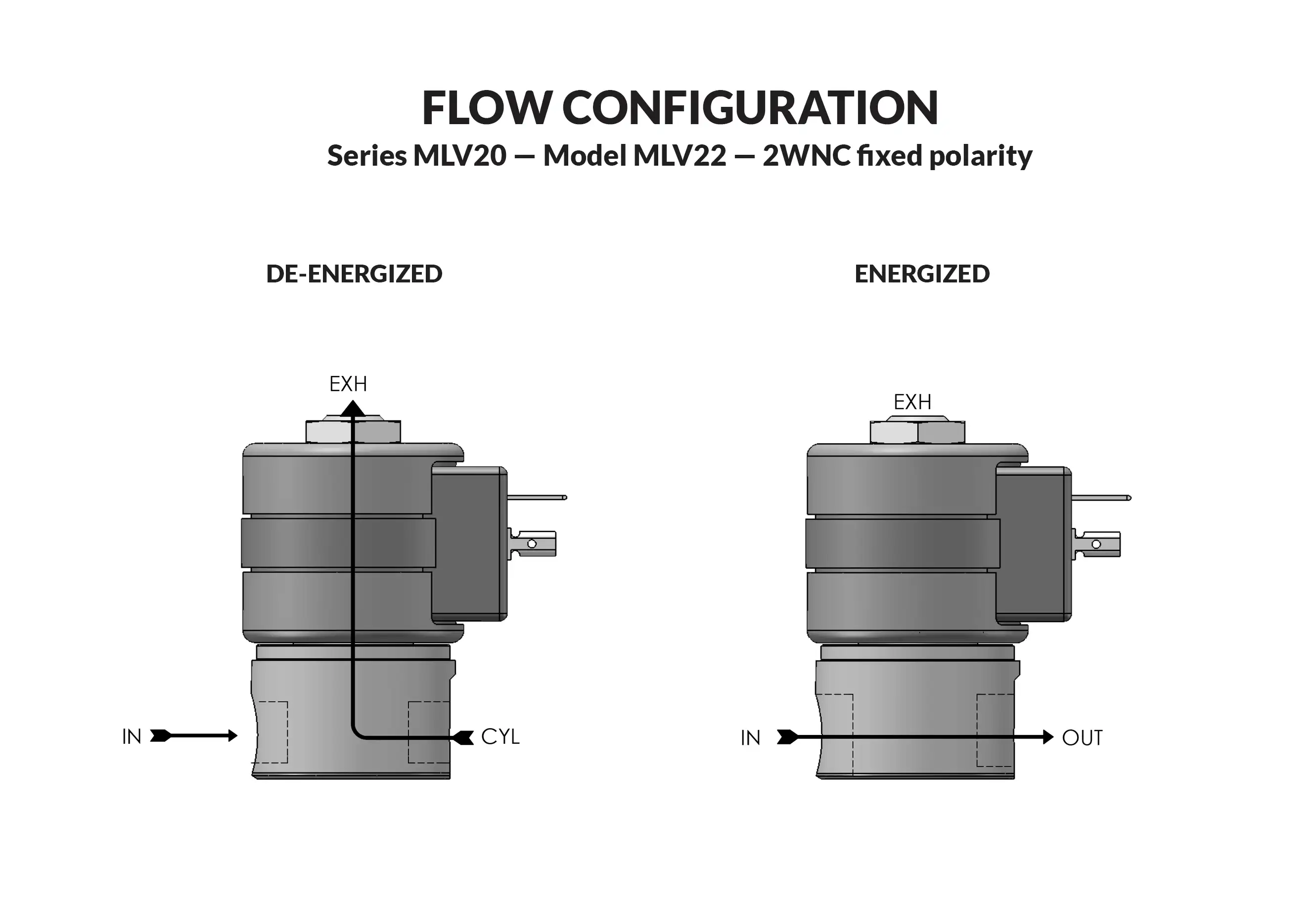

Flow Chart Tab

Flow chart Series 20-30

Nomenclature Tab

Nomenclature Chart (non 58 series)

Nomenclature, all valve series except 58

* Consult representative or factory for options and specifications
