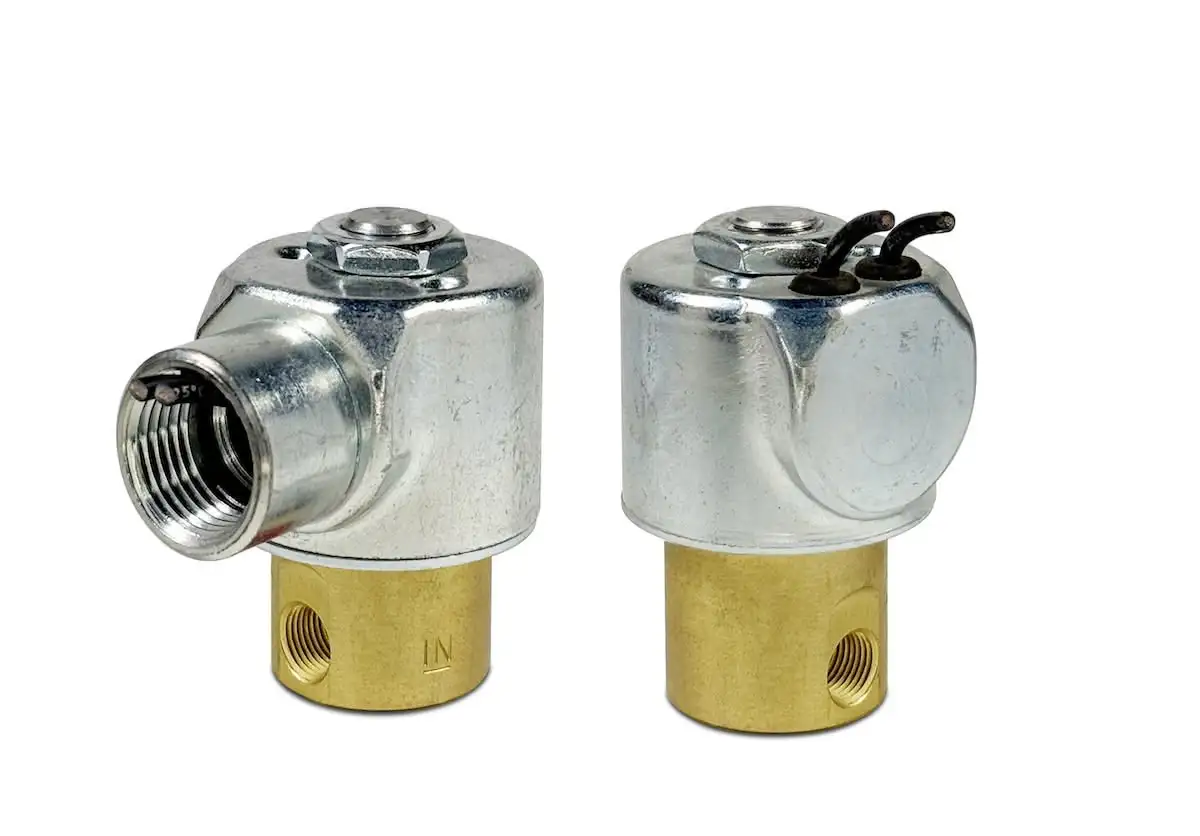

Series 30 Model 32

2-Way Normally Closed Valve

Complete range of valves particularly suitable when cost and size are major factors. The bodies are constructed of brass (stainless steal). Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

• Brass body with stainless steel internal construction.
• A smaller, cost effective alternative to any industry standard.

  • SPECIFICATIONS
  • 2-D & 3-D CAD DRAWING

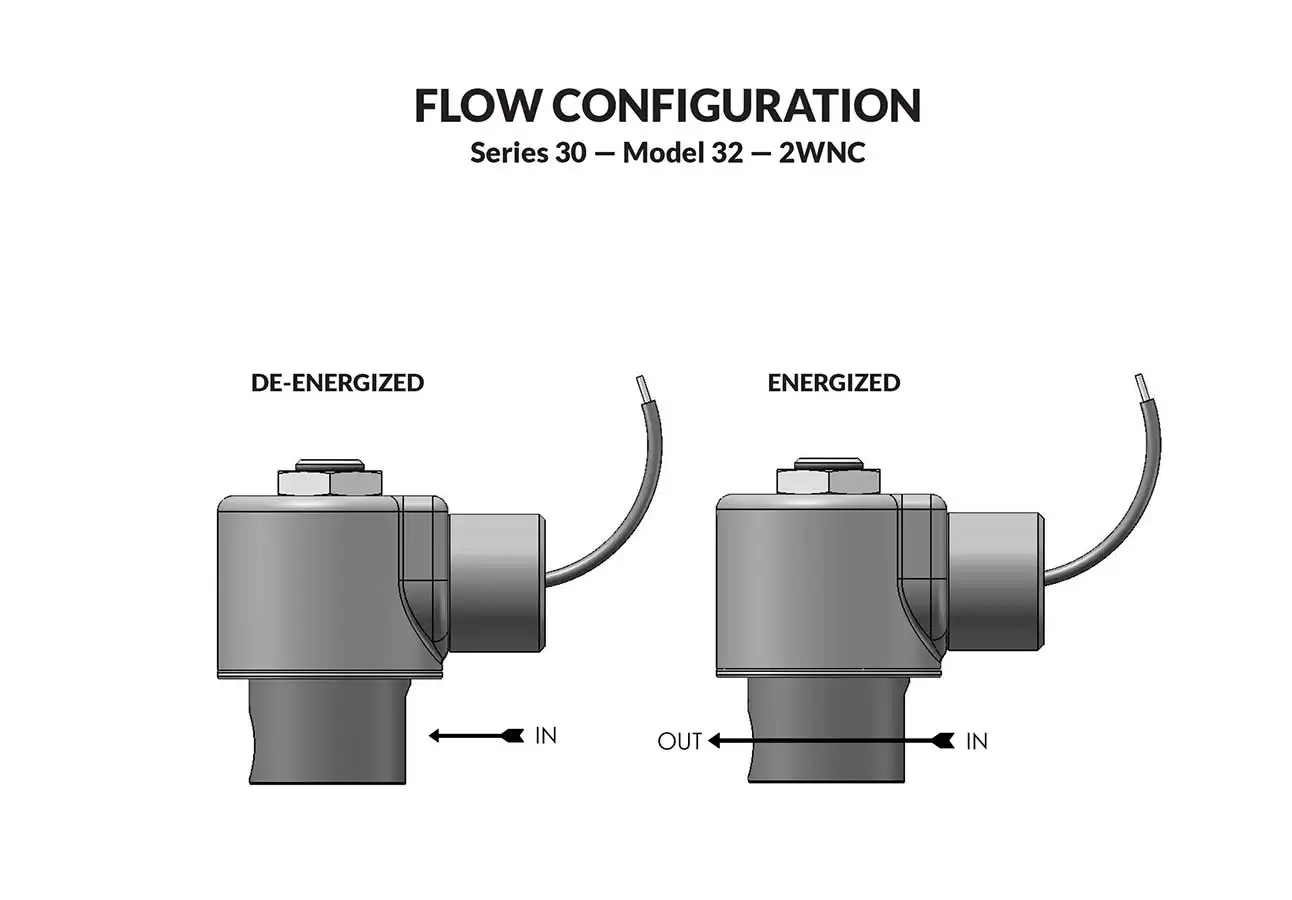

  • FLOW CHART
  • NOMENCLATURE

VALVE SPECIFICATIONS

MAX. OPER.
PRESS. DIFF.
ORIFICE SIZE CV FACTOR VALVE NUMBER
GROMMET HOUSING
1/8 NPT PORTS

CONDUIT HOUSING
1/8 NPT PORTS
AC DC N.C. N.C. BRASS STAINLESS STEEL BRASS STAINLESS STEEL
375 (650)* 375 (650)* 1/32 .024 32G5DGM 32G5DCM
280 (650)* 280 (650)* 3/64 .055 32H5DGM 32H8DGM 32H5DCM 32H8DCM
275 250 1/16 .105 32J5DGM 32J8DGM 32J5DCM 32J8DCM
180 100 3/32 .195 32K5DGM 32K8DGM 32K5DCM 32K8DCM
130 80 7/64 .220 32L5DGM 32L8DGM 32L5DCM 32L8DCM
90 50 1/8 .275 32N5DGM 32N8DGM 32N5DCM 32N8DCM
60 25 5/32 .360 32O5DGM 32O8DGM 32O5DCM 32O8DCM
40 15 3/16 .400 32P5DGM 32P8DGM 32P5DCM 32P8DCM

* FKM seals not recommended for pressure ratings above 500 PSI.

WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE
VALVE NUMBER. EXAMPLES: VALVE (32N5DGM-120/60) REPAIR PACK (K32NDD-AC)

OPERATING CONDITIONS

Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 30 pressure ratings may change due to the viscosity of the liquid.)*
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table above.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves.
Vacuum: To 5 Microns*

ELECTRICAL CHARACTERISTICS

Coil Voltage: 6.0 to 650V AC 60 HZ. and 5.2 to 560V AC 50 HZ. — 2.0 to 240V DC
Nominal Power: AC — 7.0 Watts DC — 8.0 Watts
Coil Construction: Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)
Typical Response Time on Air: 4 - 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous

MECHANICAL CHARACTERISTICS

Body: Brass (Std.) or Stainless Steel (Opt.)
Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.*
Orifice Diameter: See table above.
Porting: Standard 1/8" NPT (other ports available).*
Housing: Grommet and 1/2" NPT conduit - many options available.*
Listings: Most valves are UL and CSA listed.*
Life Expectancy: Millions of cycles, depending on application, lubrication, etc.
Valve Weight: Grommet Valve: 0.75 lb Conduit Valve: 0.81 lb
Repair Packs: See table above.
Options: Alternate Port Locations, Metering, Manual Override, Alternate Elastomers, Spade Terminal Coil

* Consult representative or factory for options and specifications.
